Quarter Upper Trim Panel Replacement (5 Door Hatchback)

Quarter Upper Trim Panel Replacement (5 Door Hatchback)

Removal Procedure




1. Remove the seat belt from the rear quarter upper trim panel.
2. Remove the rear rocker trim panel.
Refer to Rear Side Door Sill Trim Plate Replacement (Notchback) (Service and Repair)Rear Side Door Sill Trim Plate Replacement (Hatchback) (Service and Repair)

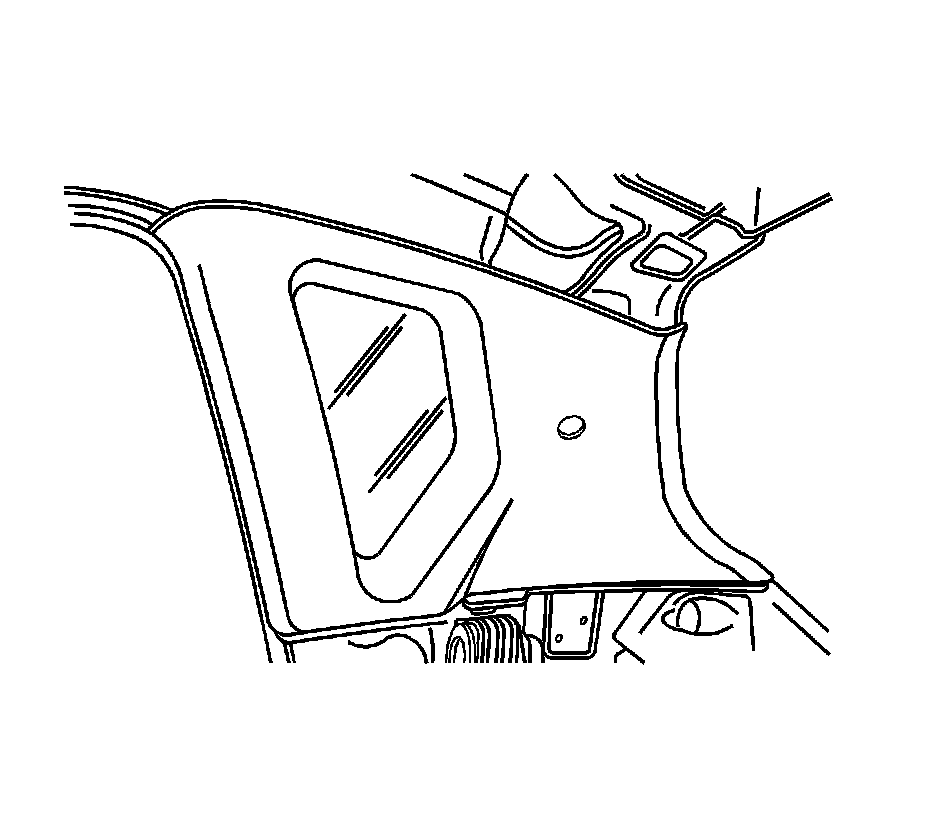

3. Remove the rear quarter upper trim panel.

Installation Procedure




1. Install the rear quarter upper trim panel.
2. Install the rear rocker trim panel.
Refer to Rear Side Door Sill Trim Plate Replacement (Notchback) (Service and Repair)Rear Side Door Sill Trim Plate Replacement (Hatchback) (Service and Repair).
3. Install the seat belt from the rear quarter upper trim panel.
