Cargo Area Side Trim Panel Replacement (Hatchback)

Cargo Area Side Trim Panel Replacement (Hatchback)

Removal Procedure




1. Remove the rear compartment trim panel. Refer to Rear Compartment Trim Panel Replacement (Notchback) (Service and Repair)Rear Compartment Trim Panel Replacement (Hatchback) (Service and Repair)

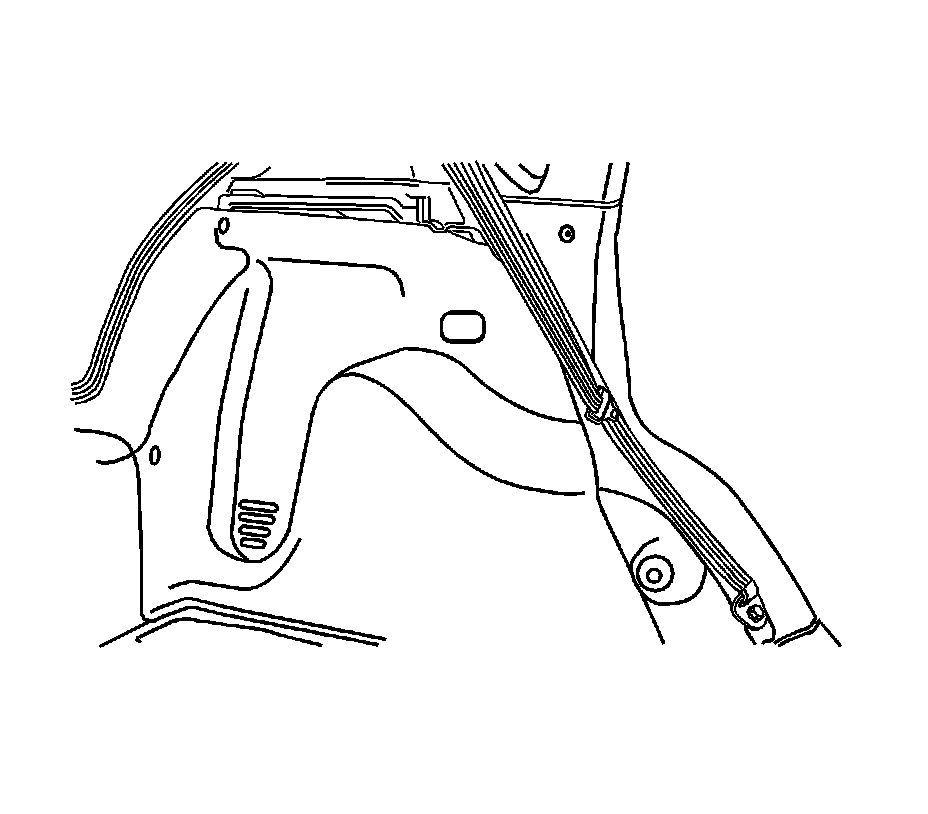

2. Remove the clips and the cargo area side trim panel.

Installation Procedure




1. Install the cargo area side trim panel with the clips.
2. Install the rear compartment trim panel. Refer to Rear Compartment Trim Panel Replacement (Notchback) (Service and Repair)Rear Compartment Trim Panel Replacement (Hatchback) (Service and Repair).
