Instrument Panel Center Trim Panel Replacement

Instrument Panel Center Trim Panel Replacement

Removal Procedure




1. Remove the instrument panel lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement (Service and Repair).

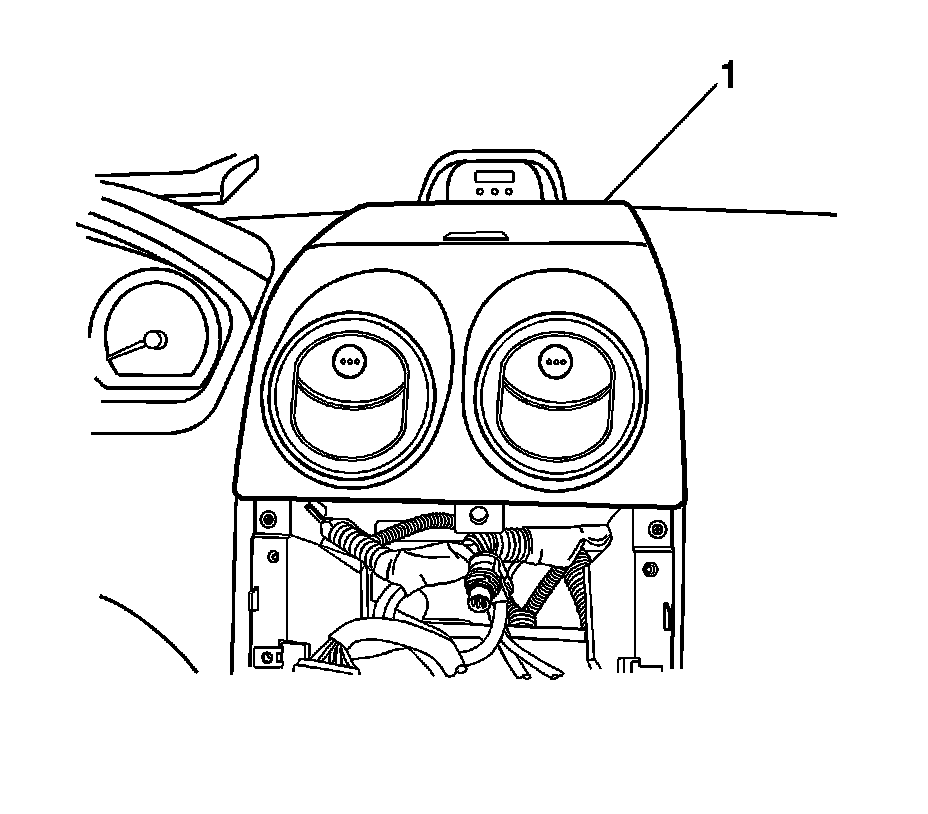

2. Using a taped flat-bladed tool, remove the instrument panel center trim panel (1).

Installation Procedure




1. Install the instrument panel center trim panel (1).
2. Install the instrument panel lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement (Service and Repair).
