Radio Rear Speaker Replacement (Notchback)




Radio Rear Speaker Replacement (Notchback)

Removal Procedure




Warning: Refer to Battery Disconnect Warning (Battery Disconnect Warning).
1. Disconnect the negative battery cable.
2. Remove the rear window shelf trim panel. Refer to Rear Window Shelf Trim Panel Replacement (Service and Repair).

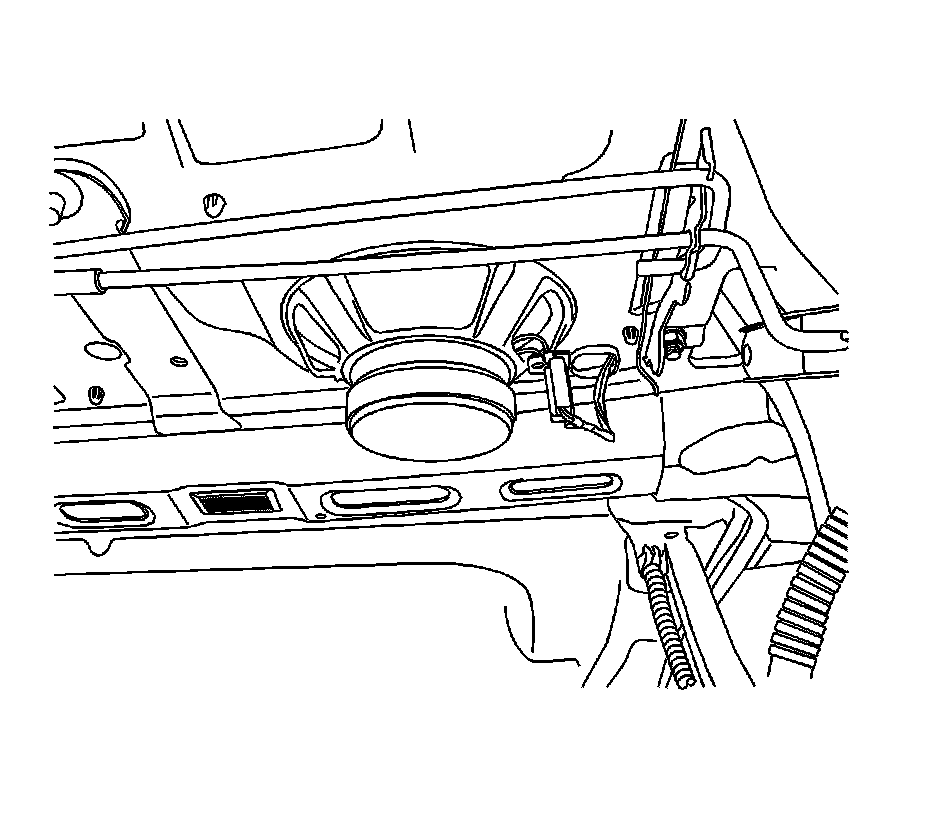

3. Disconnect the electrical connector.

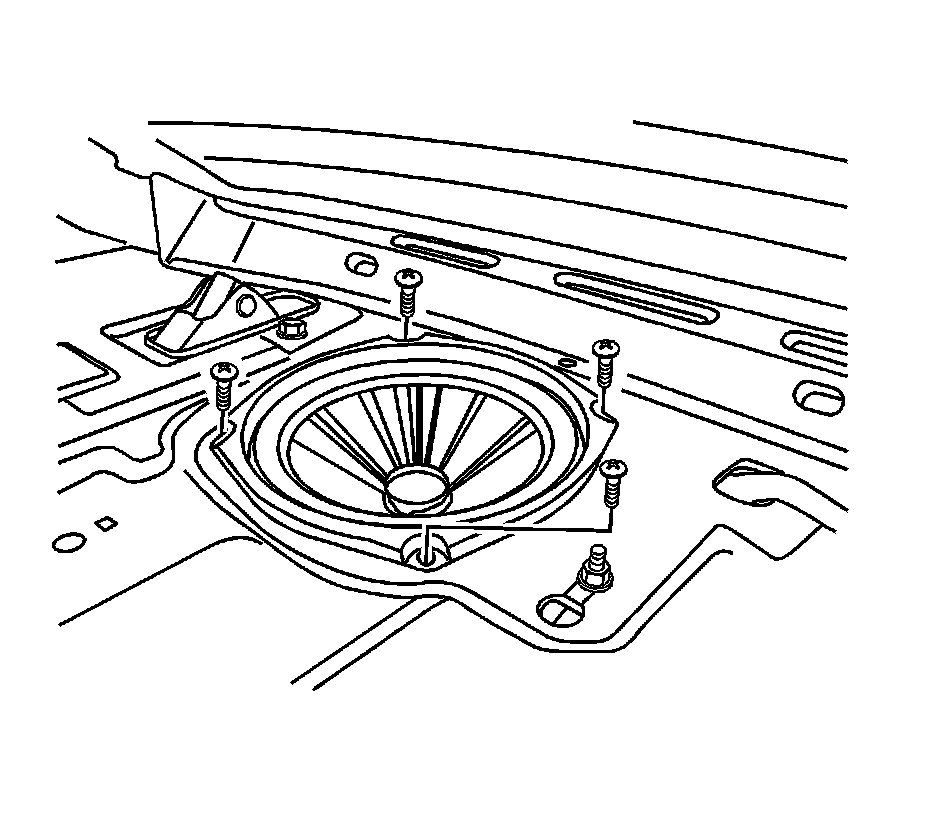

4. Remove the screws and the rear speakers.

Installation Procedure





Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the rear speakers with the screws and tighten to 3 Nm (27 lb in).




2. Connect the electrical connector.
3. Install the rear window shelf trim panel. Refer to Rear Window Shelf Trim Panel Replacement (Service and Repair).
4. Connect the negative battery cable.
