Radio Front Speaker Replacement

Radio Front Speaker Replacement

Removal Procedure




Warning: Refer to Battery Disconnect Warning (Battery Disconnect Warning).
1. Disconnect the negative battery cable.
2. Remove the front door trim panel. Refer to Front Side Door Trim Panel Replacement (Service and Repair).

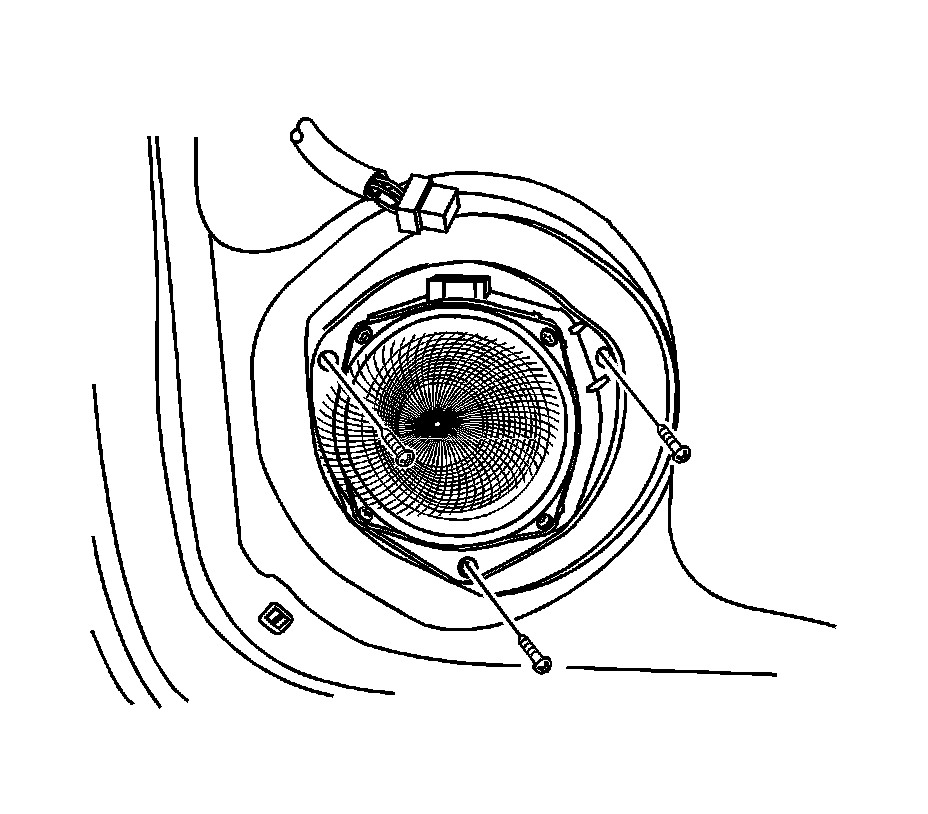

3. Remove the screws and the front speaker.
4. Disconnect the electrical connector.

Installation Procedure




1. Connect the electrical connector.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the front speaker with the screws and tighten to 3.5 Nm (31 lb in).
3. Install the front door trim panel. Refer to Front Side Door Trim Panel Replacement (Service and Repair).
4. Connect the negative battery cable.
