Sun Gear Disassemble

Sun Gear Disassemble

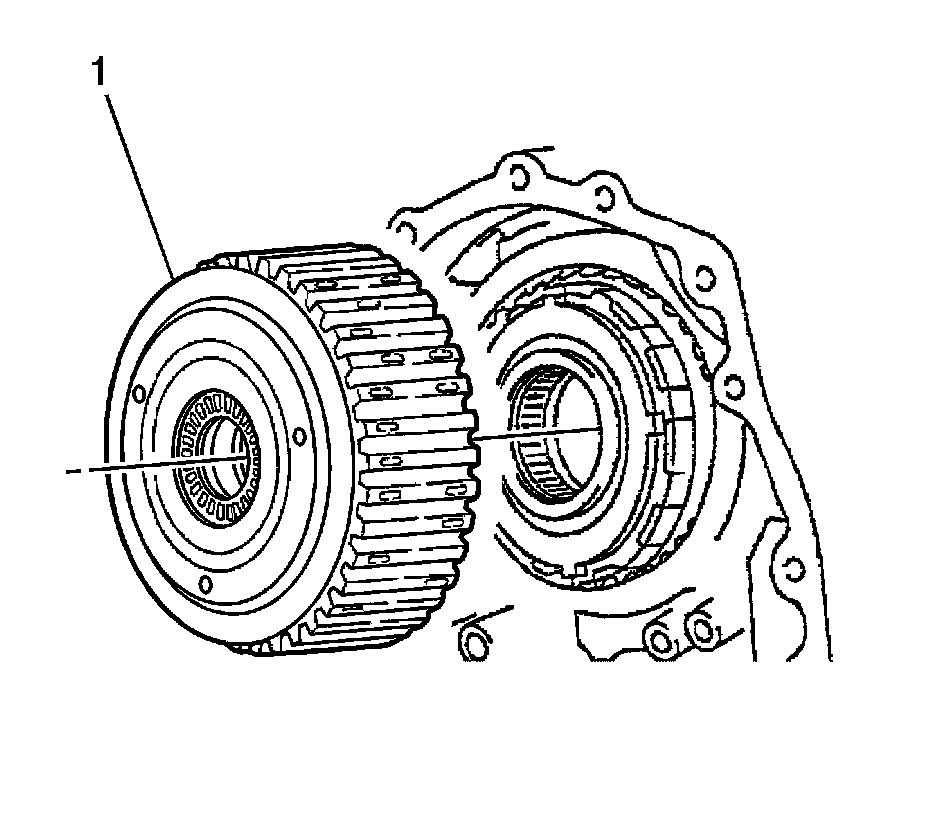

1. Remove the rear sun gear assembly (1) from the transaxle case.

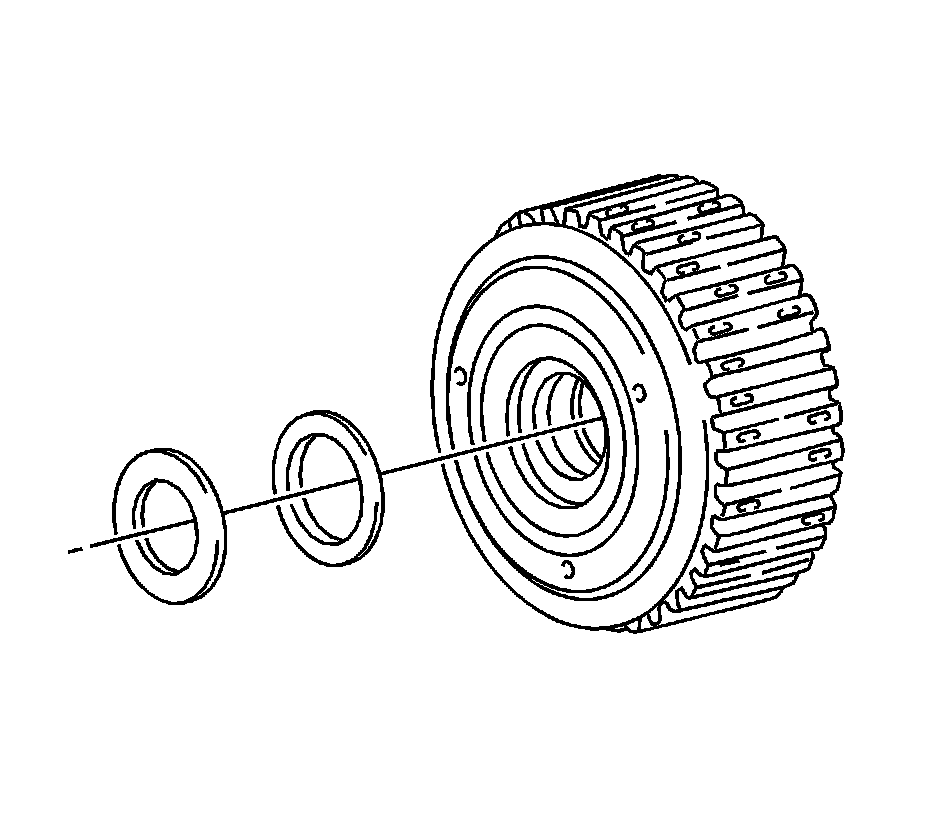

2. Remove the rear sun gear thrust bearing and race from the rear sun gear assembly.
