Park Pawl Removal

Park Pawl Removal




1. Remove the bolt and park pawl shaft clamp (1) from the transaxle case.

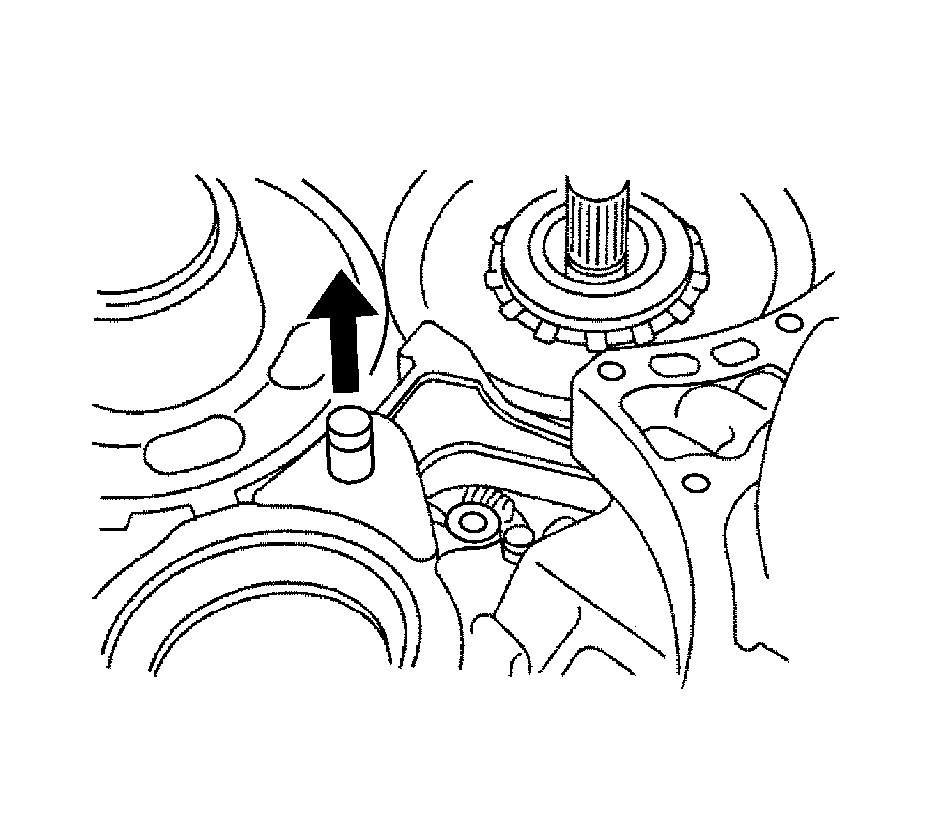

2. Remove the parking lock pawl shaft from the transaxle case.




3. Remove the spring, pawl pin and parking lock pawl.
