Control Valve Body and Wiring Harness Removal

Control Valve Body and Wiring Harness Removal

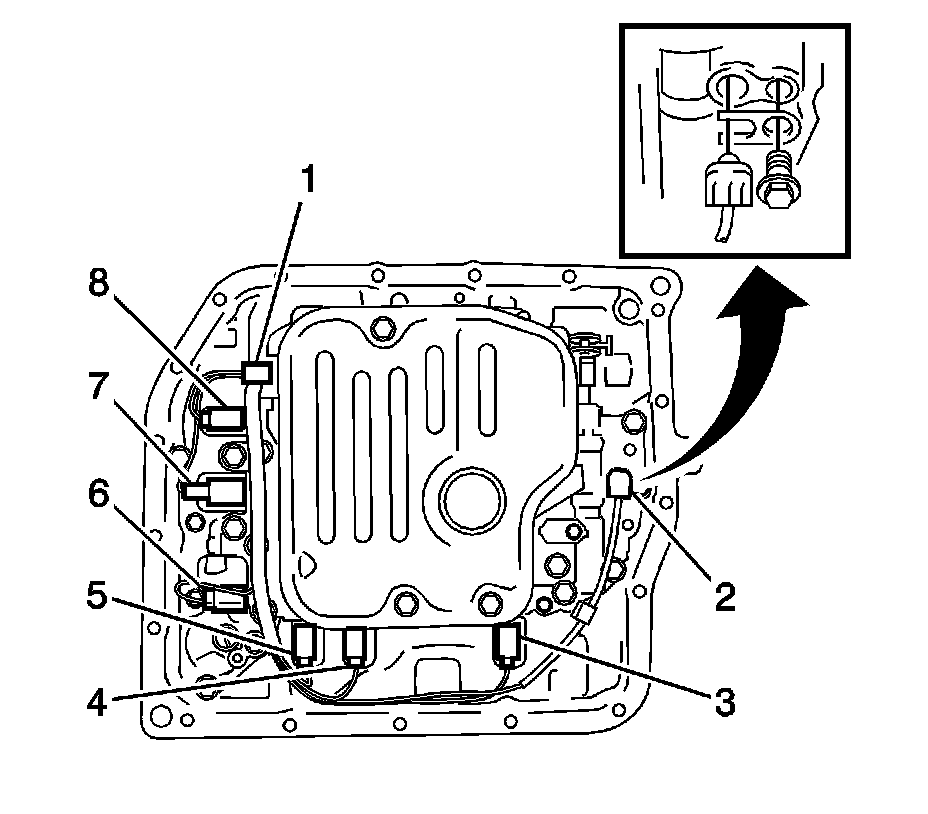

1. Disconnect the connectors (3-8) from the shift solenoid valves.
2. Remove the bolt, lock plate, and ATF temperature sensor (1-2).




3. Remove the bolt and transmission wire from the transaxle case.

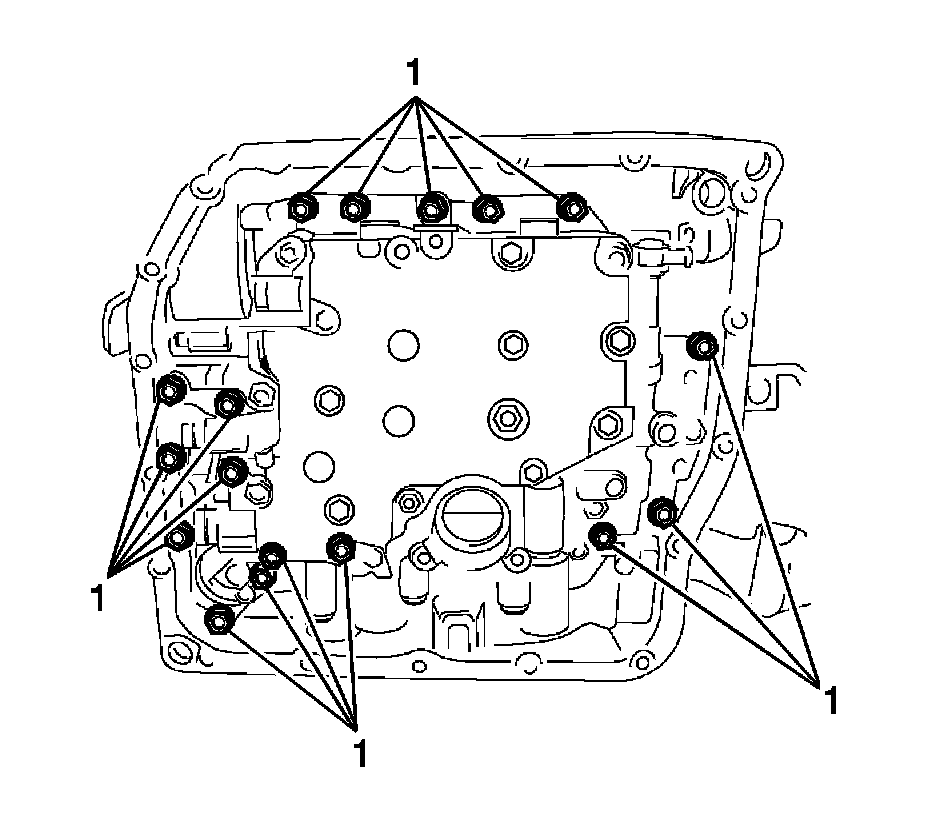

4. Support the valve body assembly and remove the bolts (1) and valve body assembly.
