Transmission Fluid Pump Removal

Transmission Fluid Pump Removal

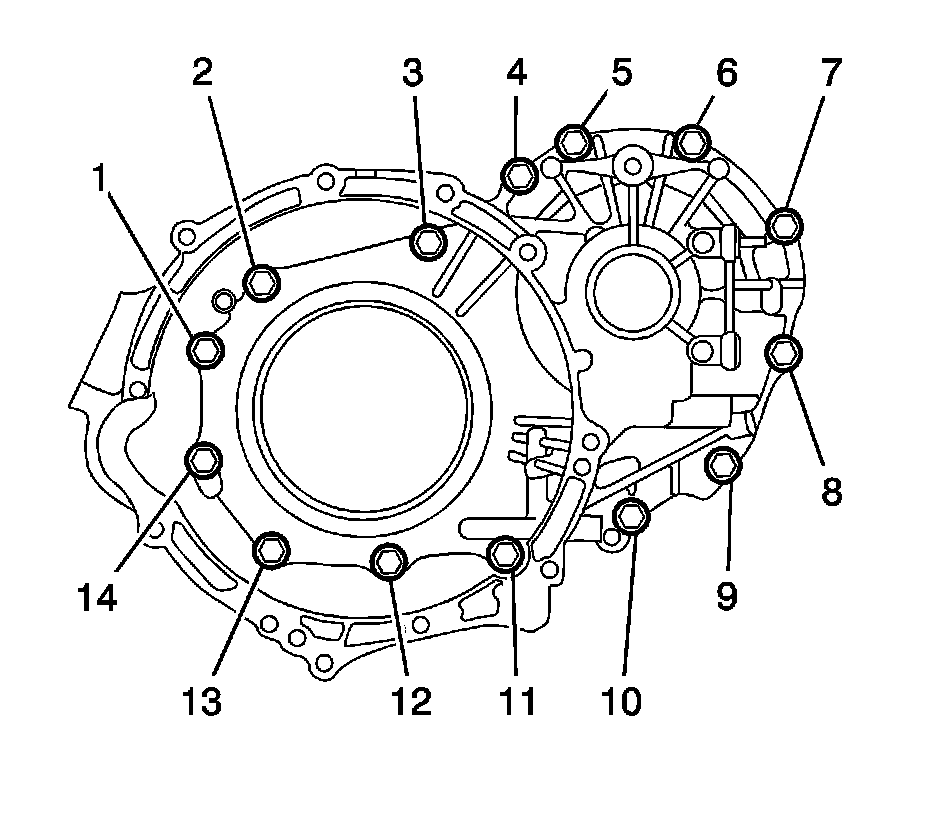

1. Remove the bolts (1-14).

Note: The differential gear assembly may be accidentally removed when the transaxle housing is removed.

2. Tap around the circumference of the differential housing with a plastic hammer to remove the housing from the transmission case.




3. Remove the bolts and the transmission fluid pump assembly from the transmission case.
