Front Differential Carrier Installation




Front Differential Carrier Installation

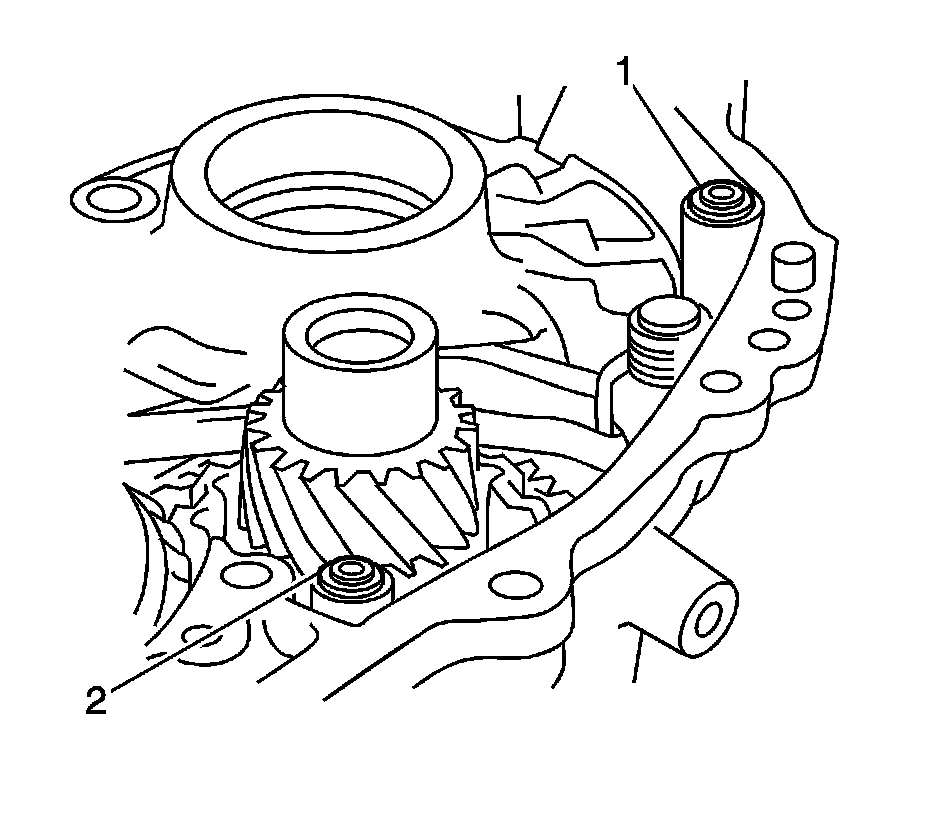

1. Install new transmission case fluid passage gaskets (1, 2) to the transmission case.

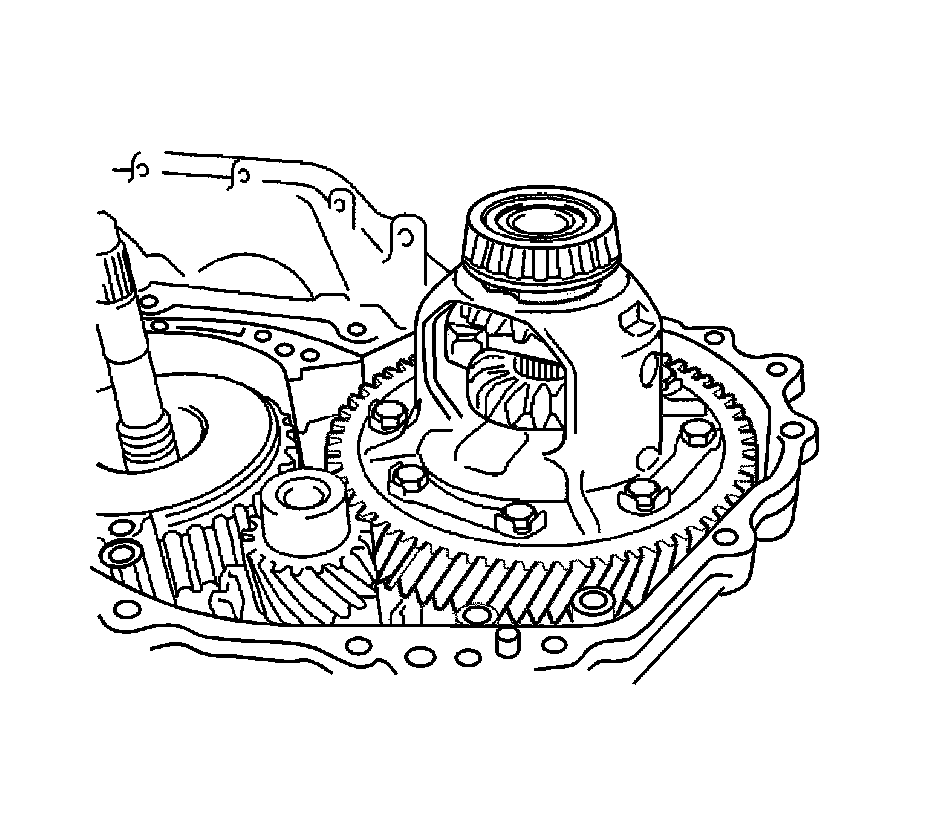

2. Install the front differential carrier assembly to the transmission case.
