Manual Shift Shaft Pin, Detent Lever, and Park Pawl Actuator Assembly Installation

Manual Shift Shaft Pin, Detent Lever, and Park Pawl Actuator Assembly Installation

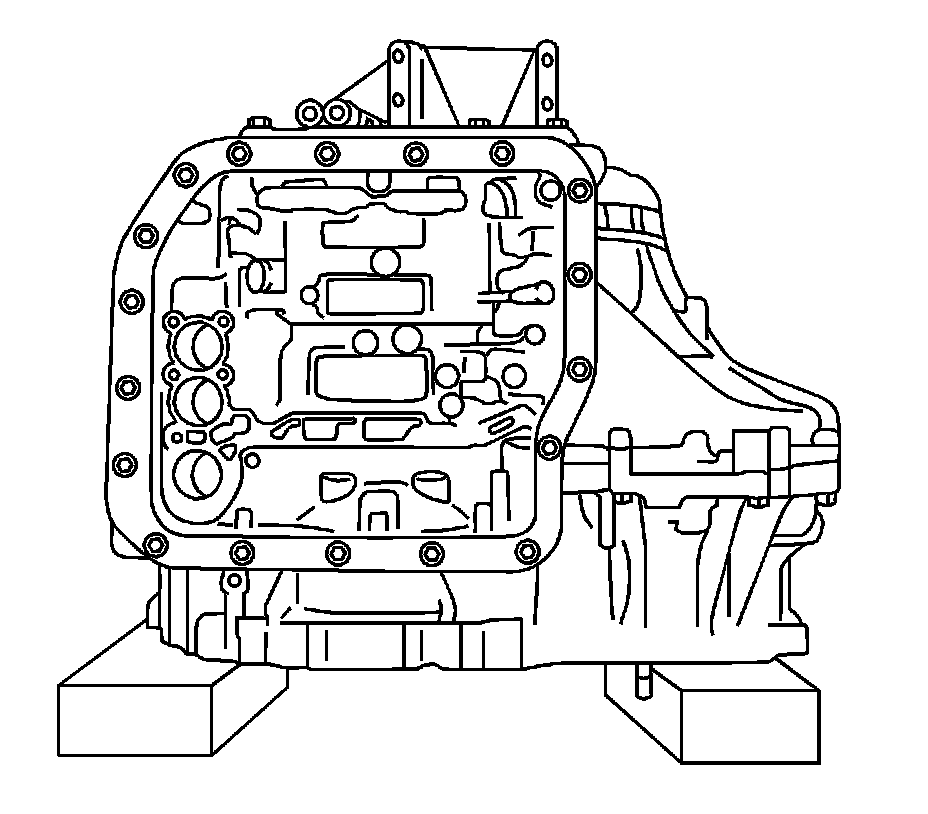

1. Support the automatic transaxle assembly.

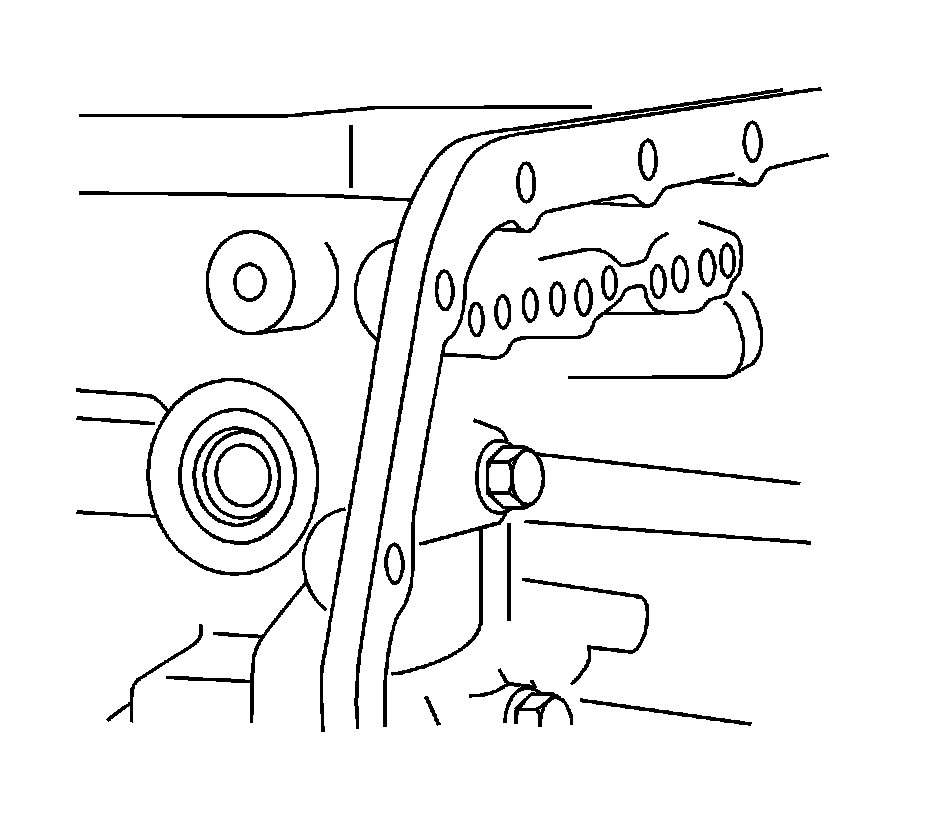

2. Coat a new oil seal with ATF WS.
3. Install the oil seal to the transaxle.

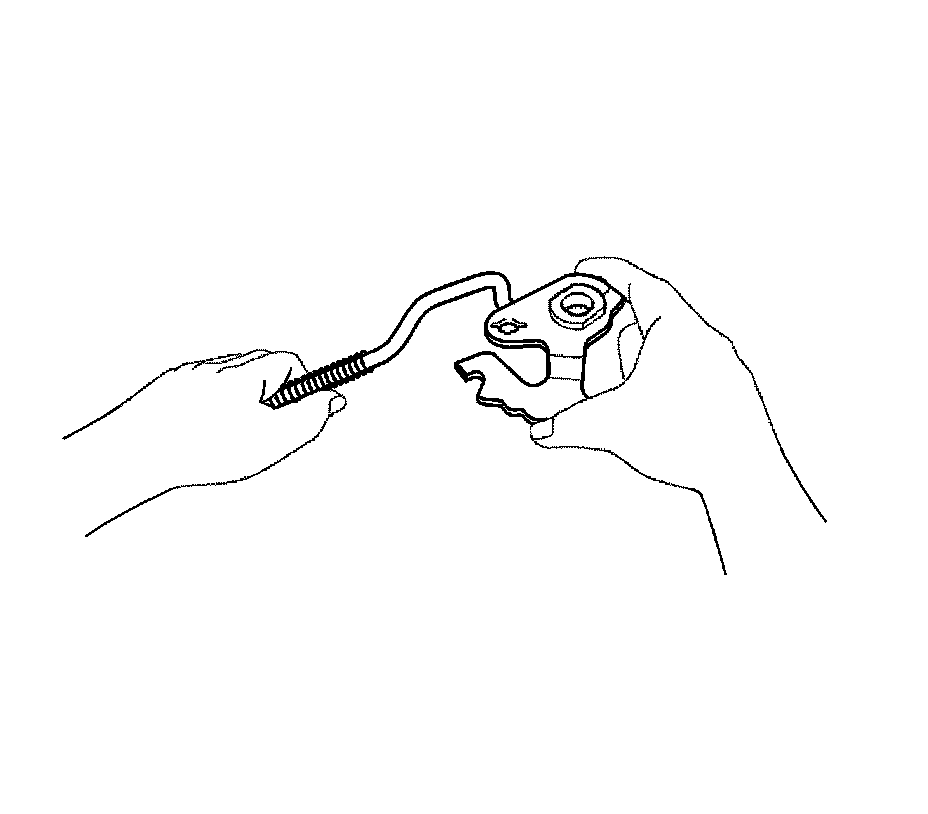

4. Install the parking lock rod to the manual valve lever.




5. Install a new spacer and manual valve lever shaft to the transaxle.

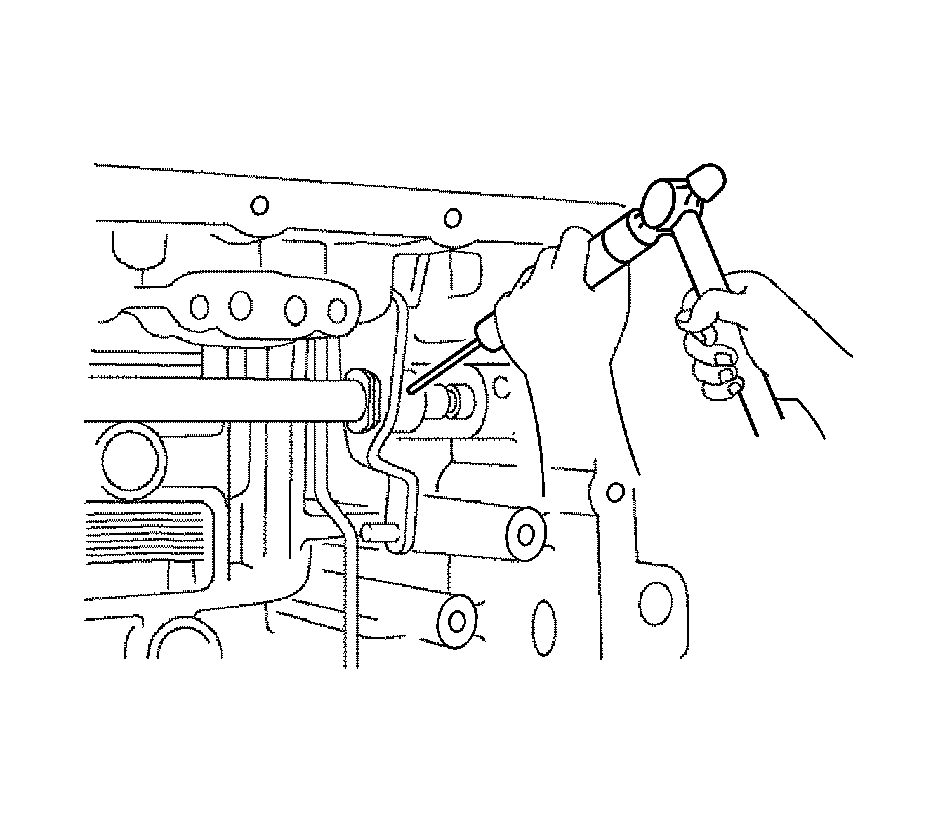

6. Using a pin punch and hammer, tap in a new pin.

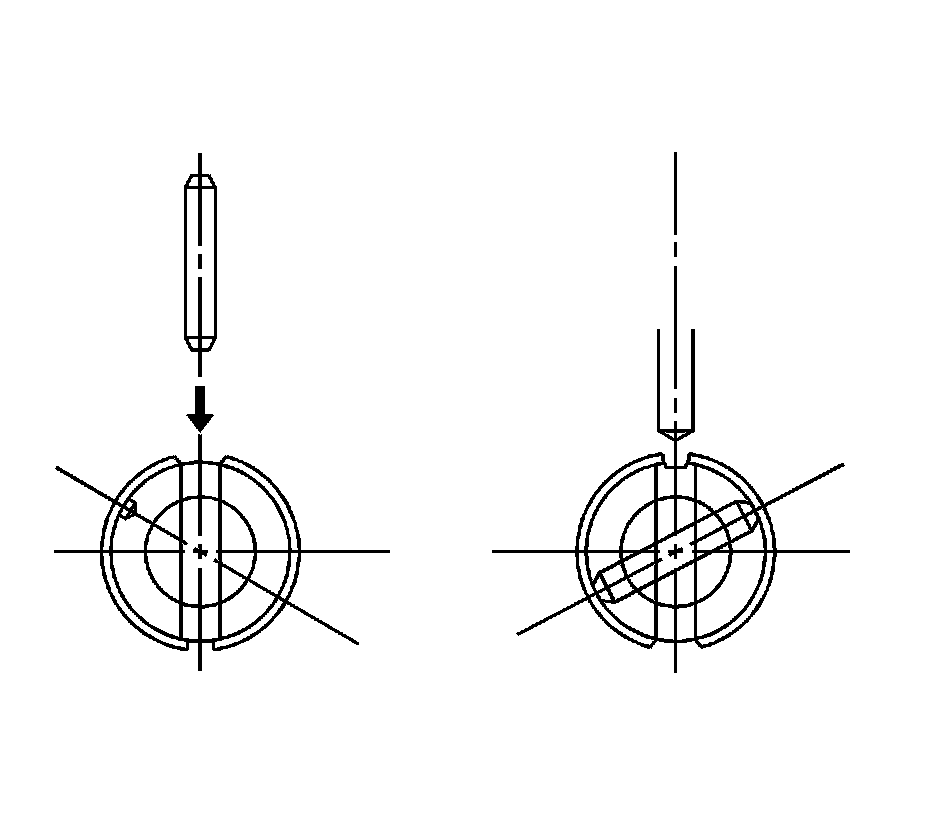

7. Turn the spacer and lever shaft to align the small hole for locating the staking position mark on the lever shaft.
8. Using a pin punch, stake the spacer through the small hole.
9. Check that the spacer does not turn.

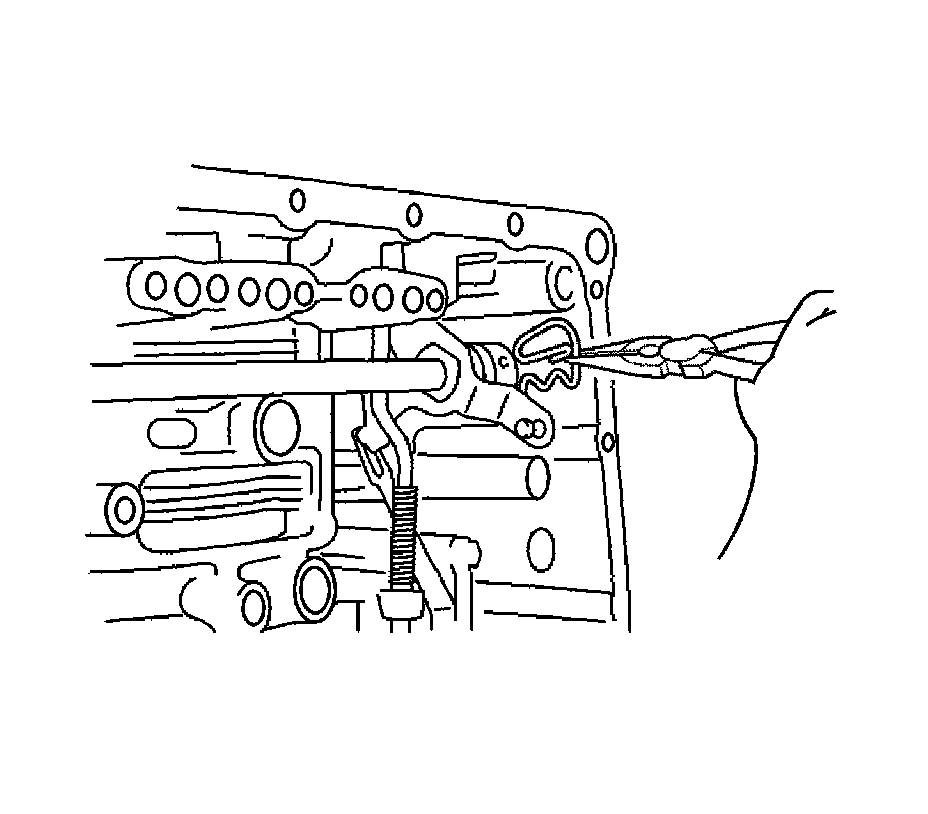

10. Using needle-nose pliers, install the retainer spring.





Caution: Refer to Fastener Caution (Fastener Caution).

11. Install the parking lock pawl bracket with the bolts and tighten to 20 Nm (15 lb ft).





Note: Make sure to install the manual detent spring and cover in this order.

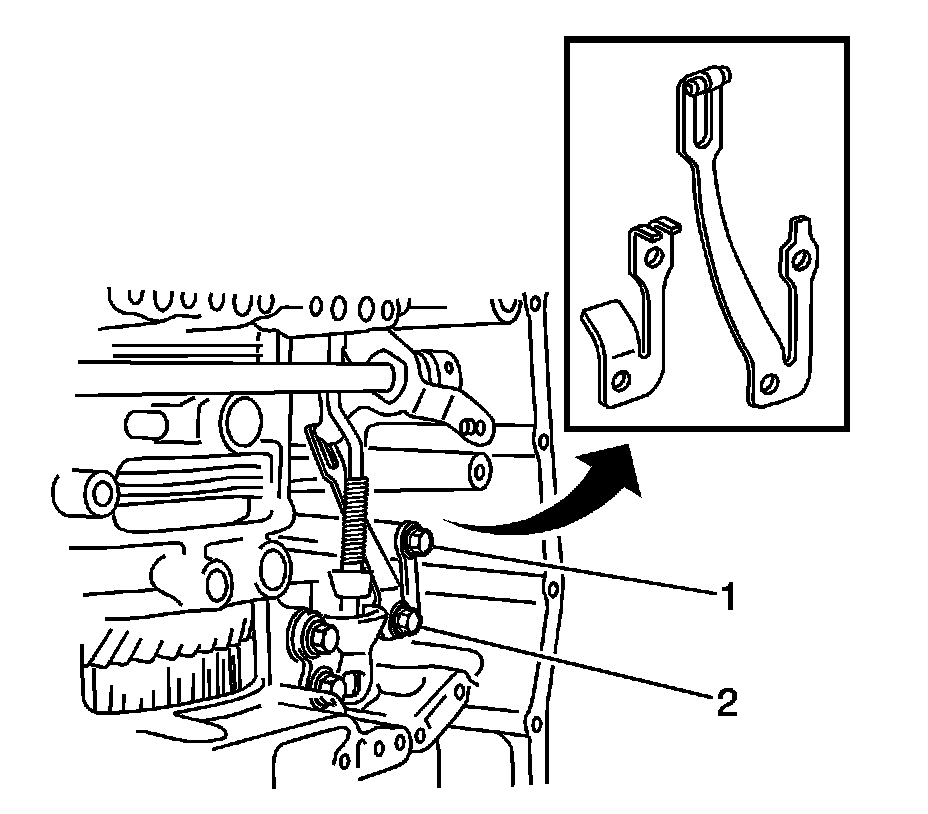

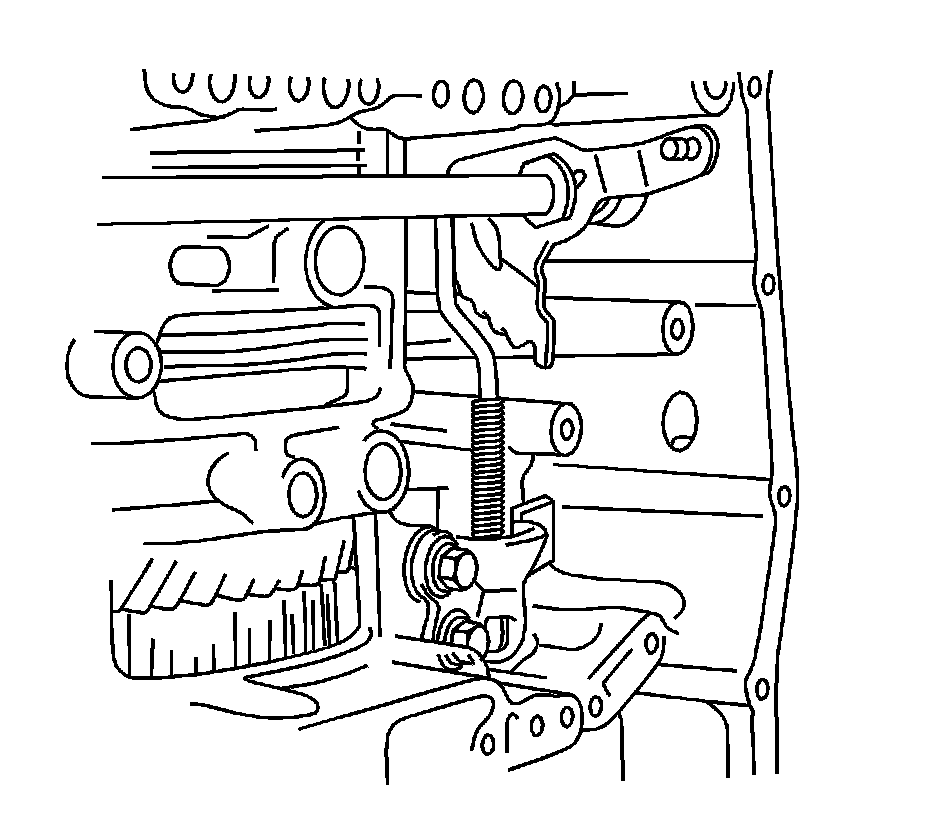

12. Install the manual detent spring with the bolts (1, 2) and tighten. Refer to Transmission General Specifications (Transmission General Specifications) for bolt length C.

* Bolt (1) to 20 Nm (16 lb ft)
* Bolt (2) to 12 Nm (106 lb in)
