Low Clutch and 2nd Clutch Sprag Disassemble

Low Clutch and 2nd Clutch Sprag Disassemble

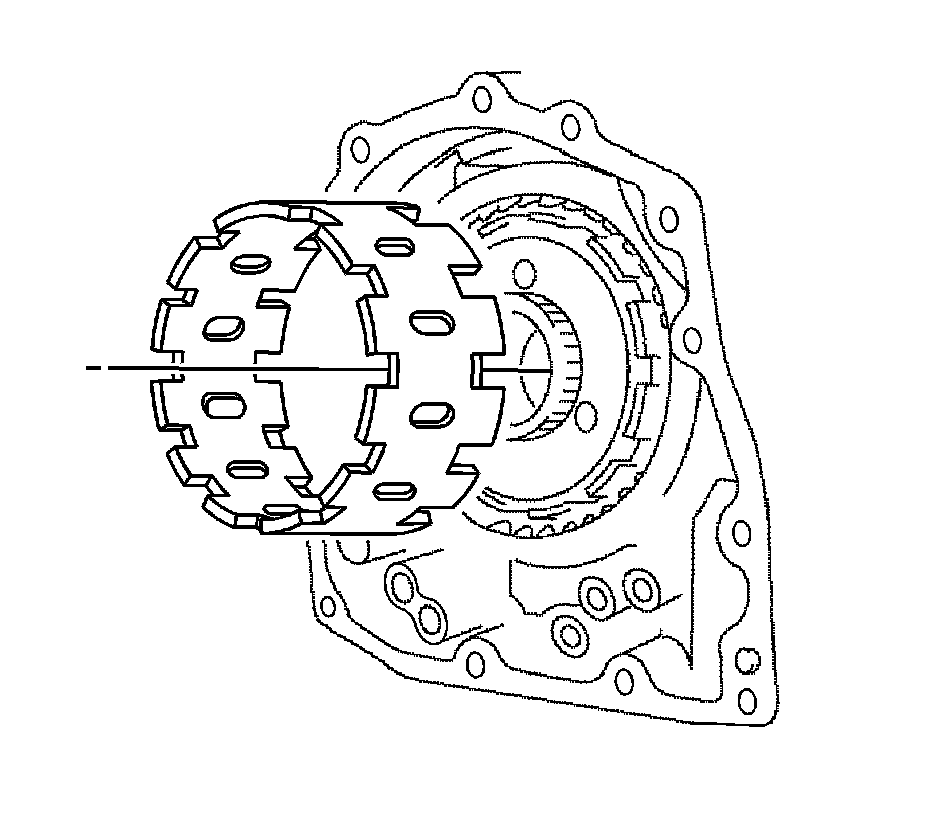

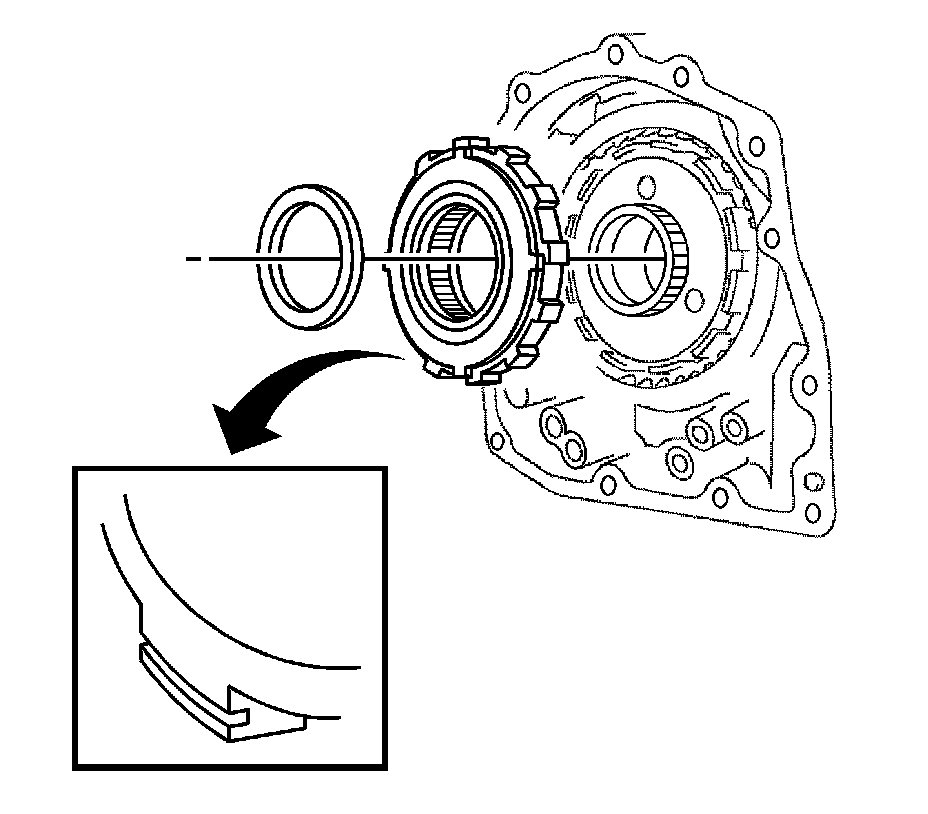

1. Remove the low clutch sprag and thrust bearing from the transaxle.

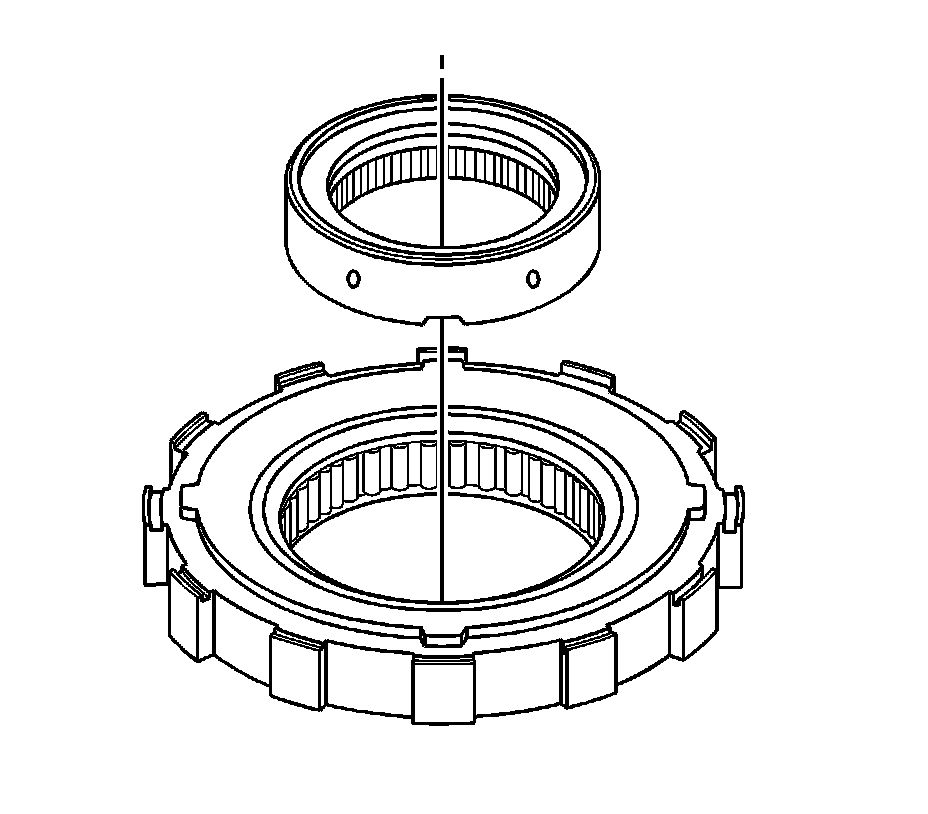

2. Remove the 2nd clutch inner race from the low clutch sprag.




3. Remove the 2nd clutch sprag outer race.




4. Remove the 2nd clutch disc.
5. Using a screwdriver, remove the snap ring.
6. Remove the 2nd clutch plates from the transaxle.
