Control Valve Body Installation

Control Valve Body Installation

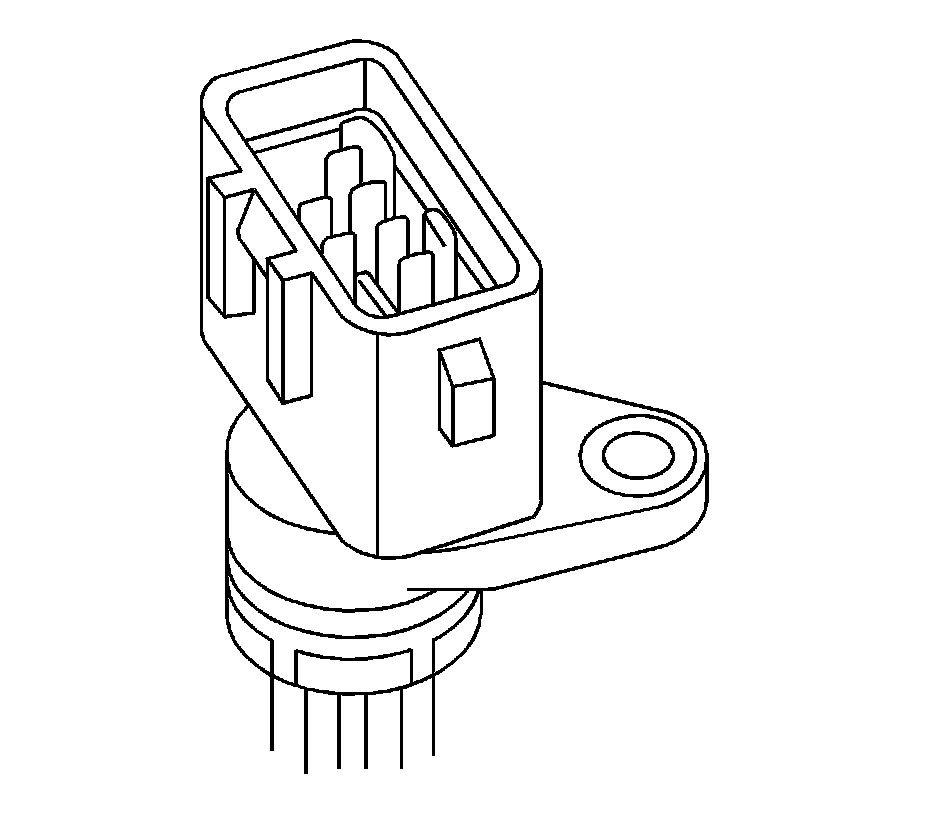

1. Coat a new O-ring with ATF WS, and install it to the transaxle solenoid wire.





Caution: Refer to Fastener Caution (Fastener Caution).

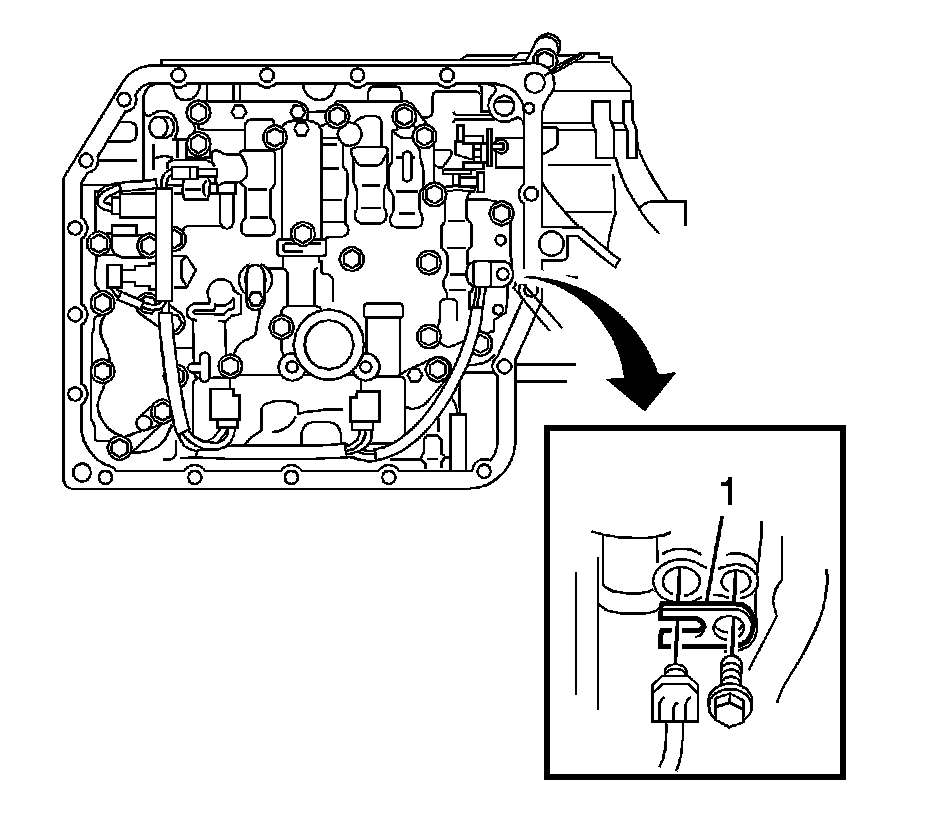

2. Install the solenoid wire retaining bolt (1), and tighten to 5 Nm (44 lb in).




3. Align the groove of the manual valve with the pin of lever.

Note: Push the valve body against the accumulator piston spring and the exhaust valve to install it.

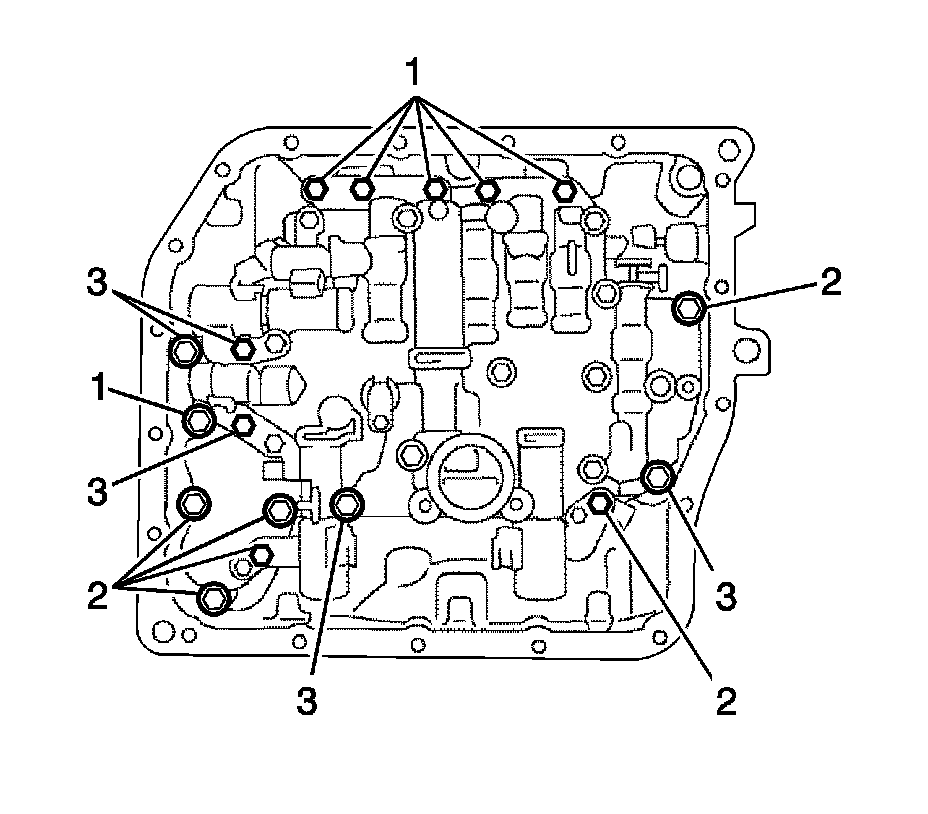

4. Install the bolts (1-3) and tighten to 11 Nm (97 lb in). Refer to Transmission General Specifications (Transmission General Specifications) for bolt length A.




5. Connect the solenoid connectors.
6. Coat the O-ring of the temperature sensor with ATF WS.

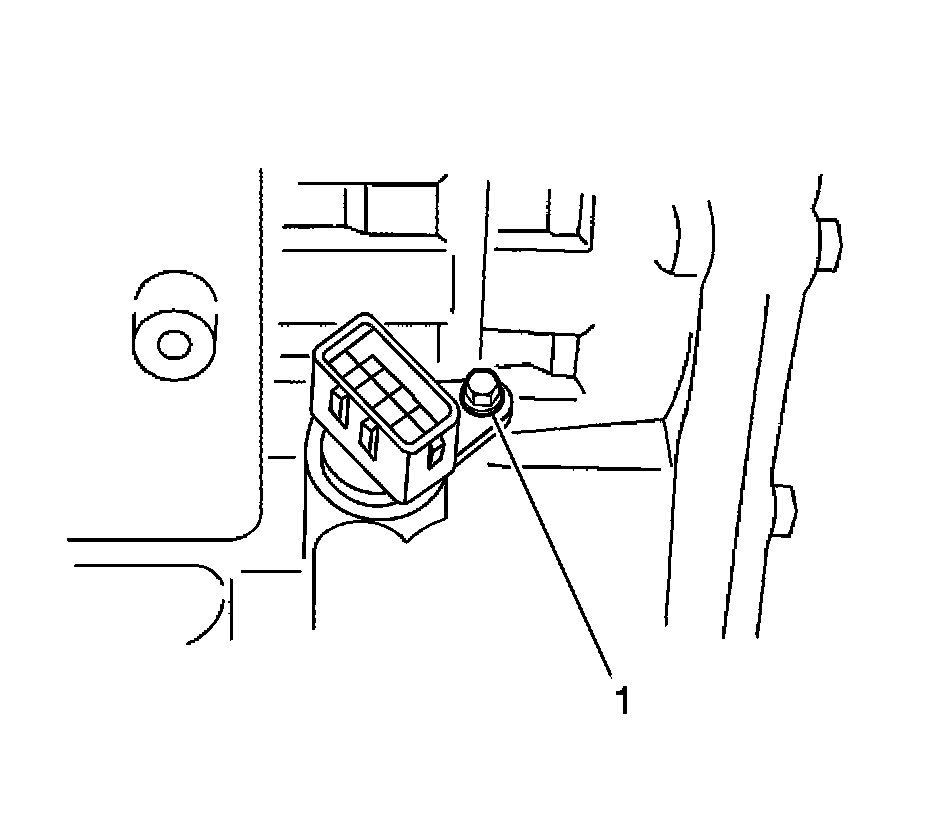

7. Install the ATF temperature sensor with the lock plate (1) and bolt and tighten to 7 Nm (62 lb in).
