Case Cover Assembly Installation

Case Cover Assembly Installation




1. Install new O-rings to the fluid pressure test hole plugs.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the plugs to the transaxle rear cover and tighten to 7 Nm (62 lb in).





Note:
* Face the inscribed mark side of the bearing race up.
* Repeat the press-fit until the specified value is obtained.

3. Using a press, press in the bearing.

Standard depth - 12.05-12.75 mm (0.4744-0.5020 in) (a)

4. Apply Three Bond 1281 sealant, or equivalent, to the bolts.




5. Install the transaxle rear cover plate with the bolts and tighten to 8 Nm (71 lb in).




6. Coat the new oil seals with ATF WS, and install them to the transaxle rear cover.




7. Remove any sealant and be careful not to get oil on the contacting surfaces of the transaxle rear cover or the transaxle.
8. Apply Three Bond 1281 sealant, or equivalent, to the cover.
9. Coat the needle roller bearing with ATF WS.

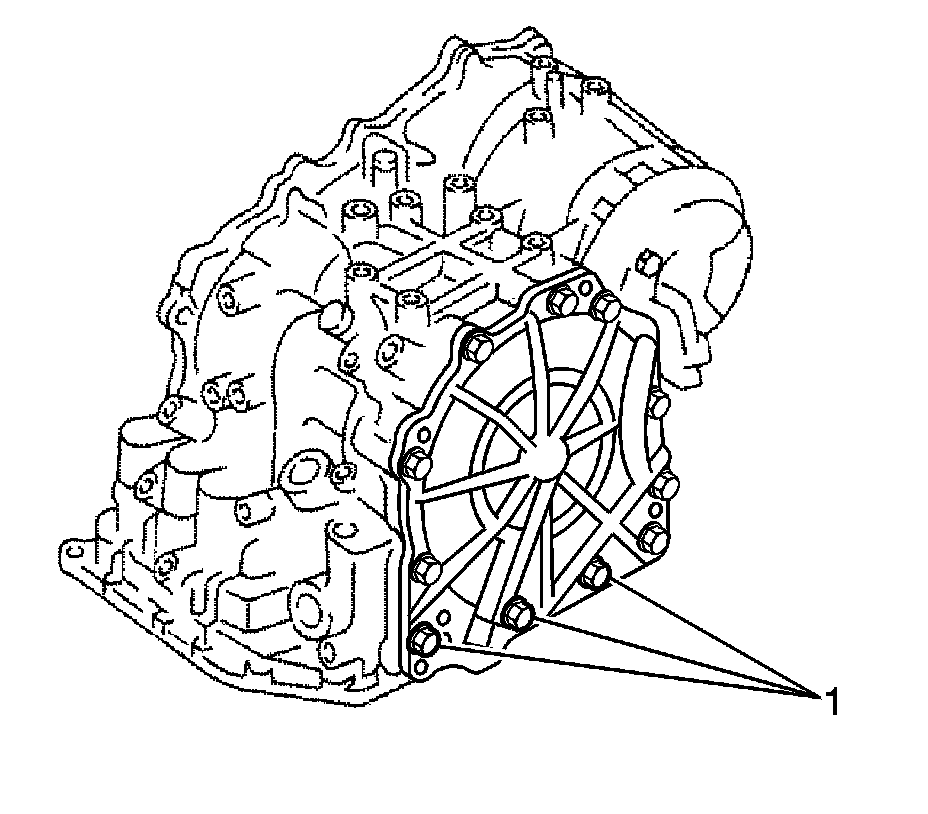

10. Apply Three Bond 1281 sealant, or equivalent, to the threads of the bolts labeled (1).
11. Install the bolts and tighten.

* Bolt 1 to 19 Nm (14 lb ft)
* Other bolts to 25 Nm (18 lb ft)
