Case Cover Assembly Disassemble

Case Cover Assembly Disassemble

Special Tools

J 23907 Slide Hammer with Bearing Adapter

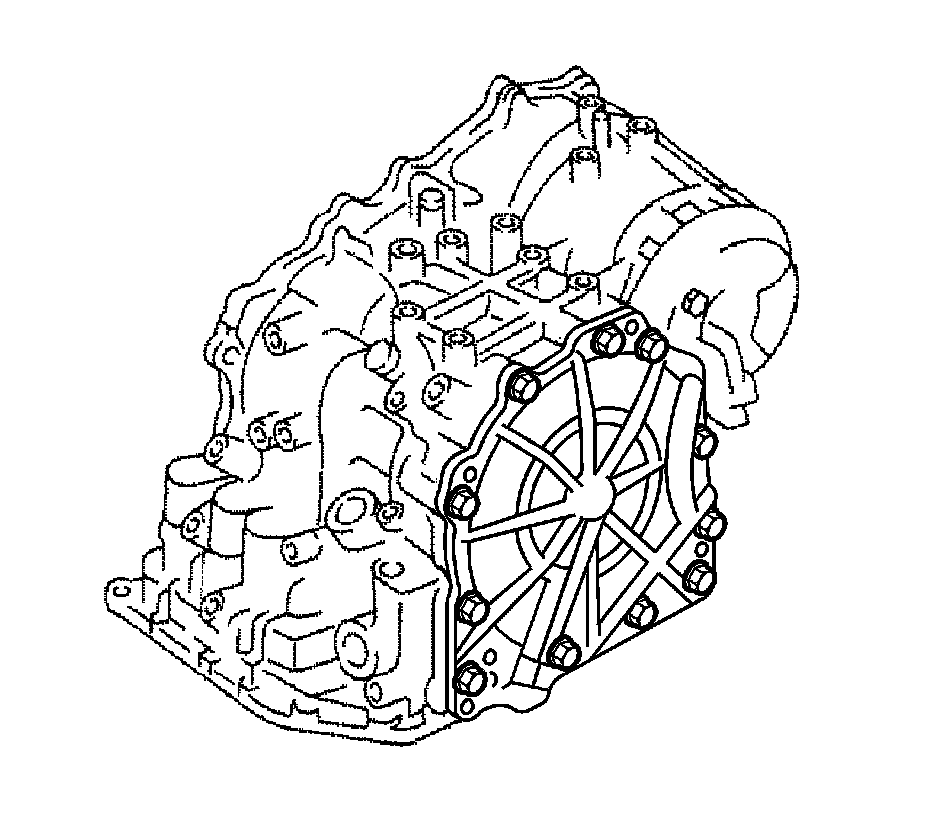

1. Remove the bolts retaining the cover.
2. Tap the circumference of the rear cover with a plastic-fased hammer to remove the transaxle cover from the transaxle.




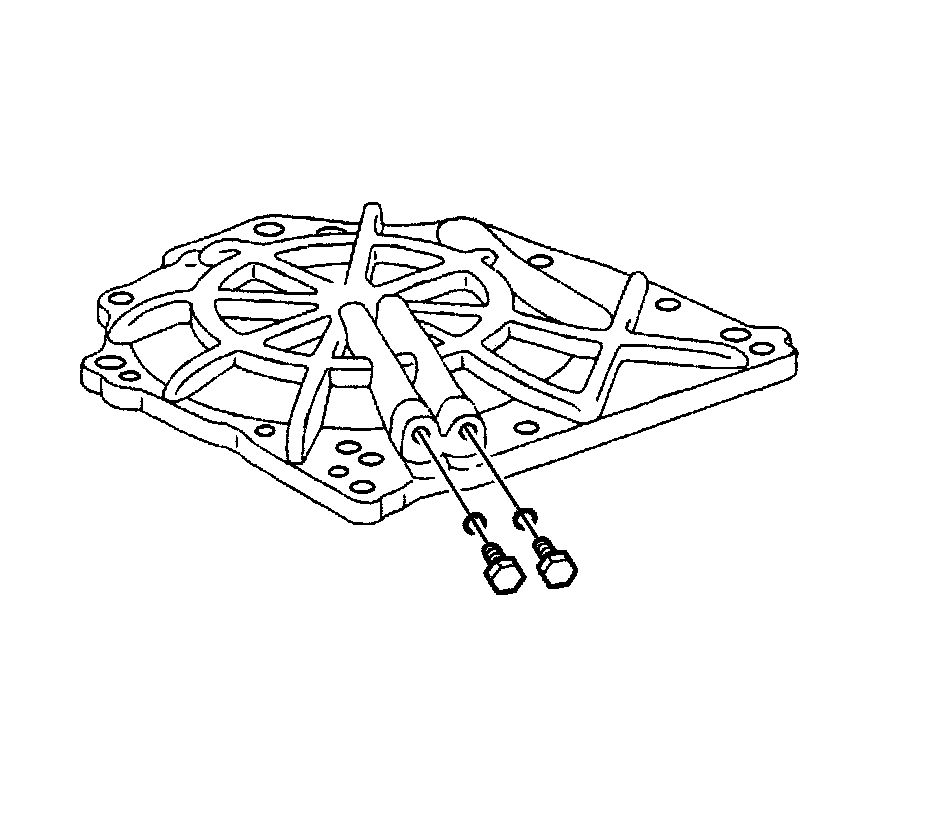

3. Remove the fluid pressure test hole plugs from the transmission case cover.
4. Remove the O-rings from the plugs.

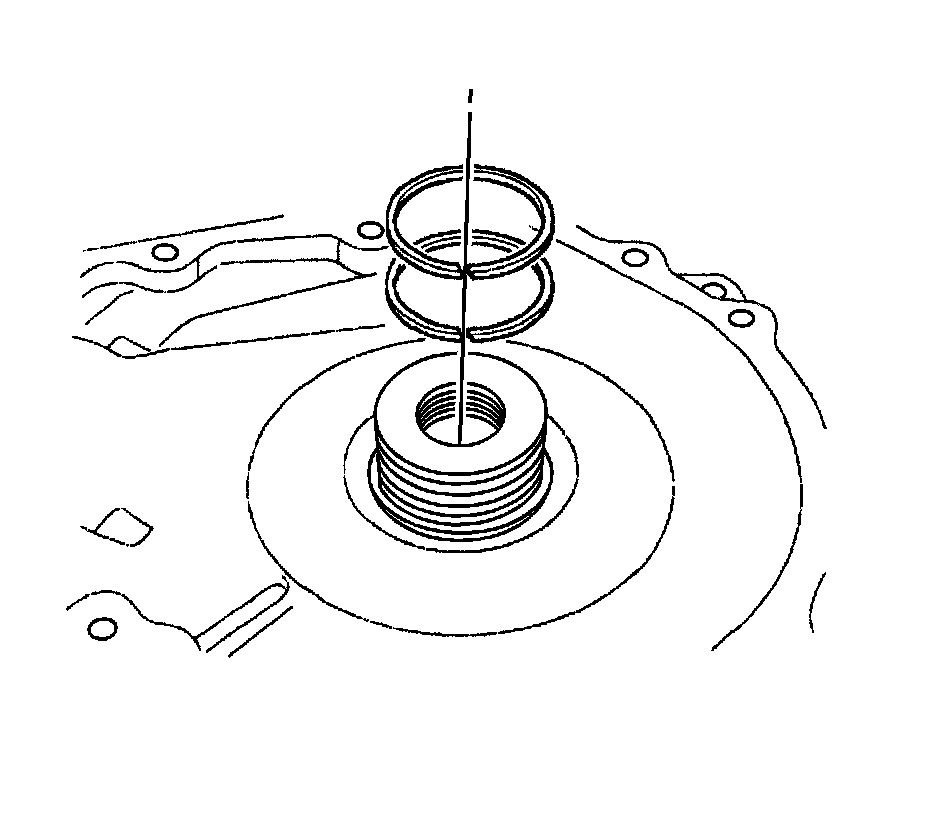

5. Remove the oil seal rings from the transaxle cover.

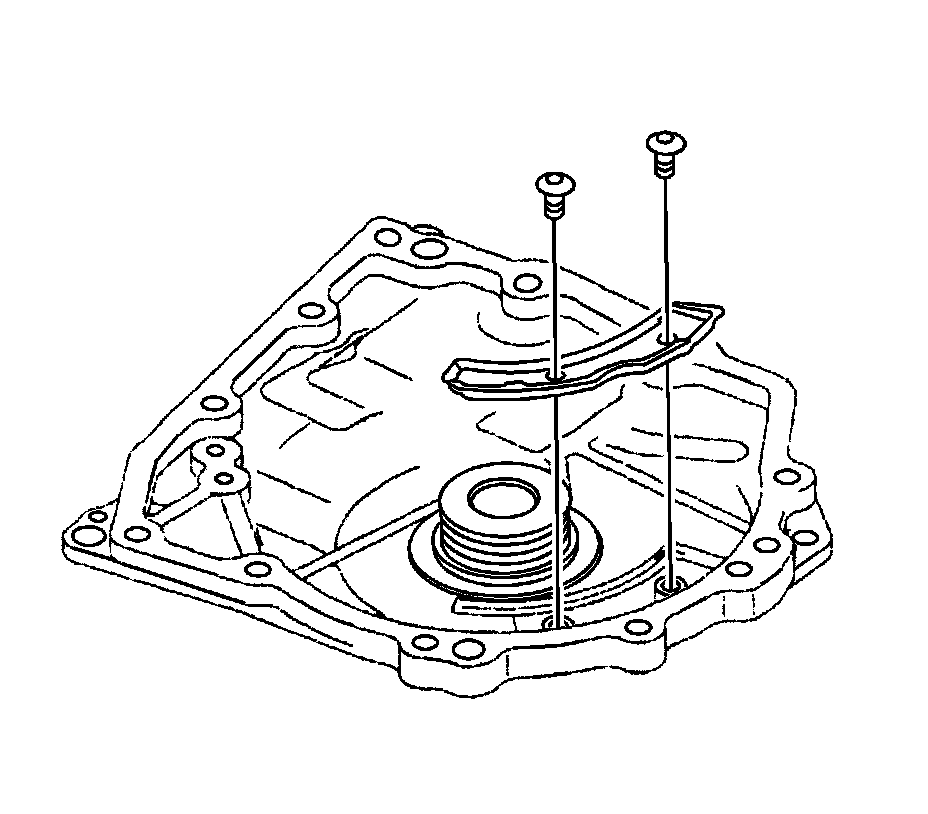

6. Remove the bolts and transaxle cover plate.

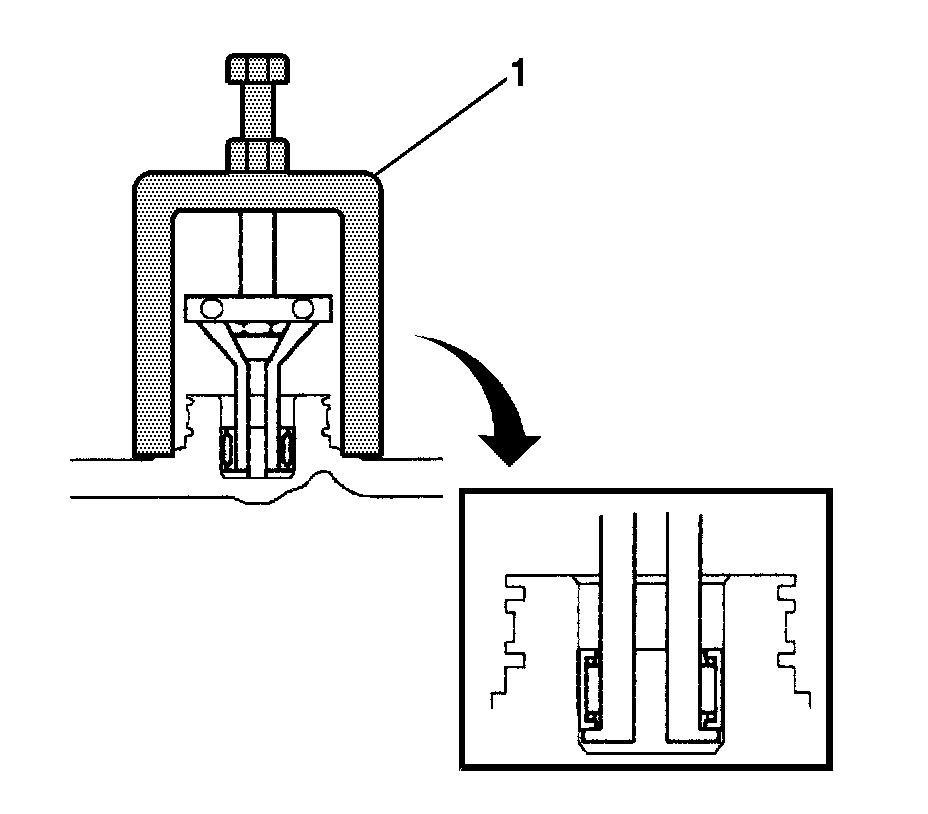

7. Using J 23907 (1), remove the needle roller bearing from the transaxle cover.
