4th Clutch Assembly Installation

4th Clutch Assembly Installation




1. Install the 4th clutch to the transaxle.

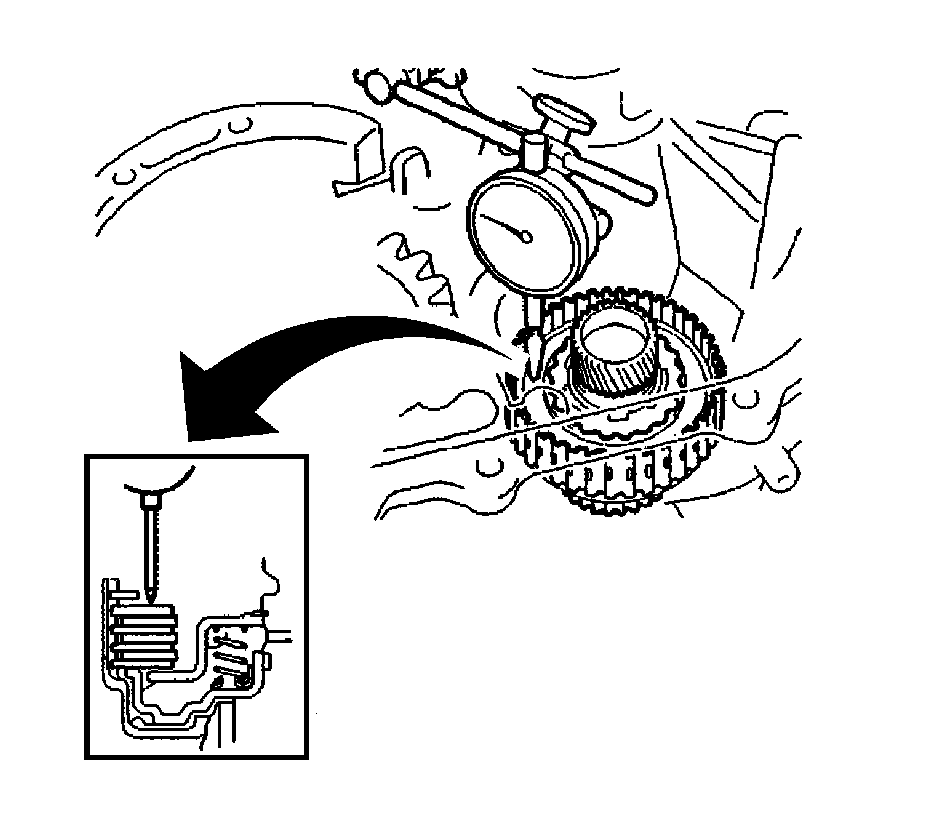

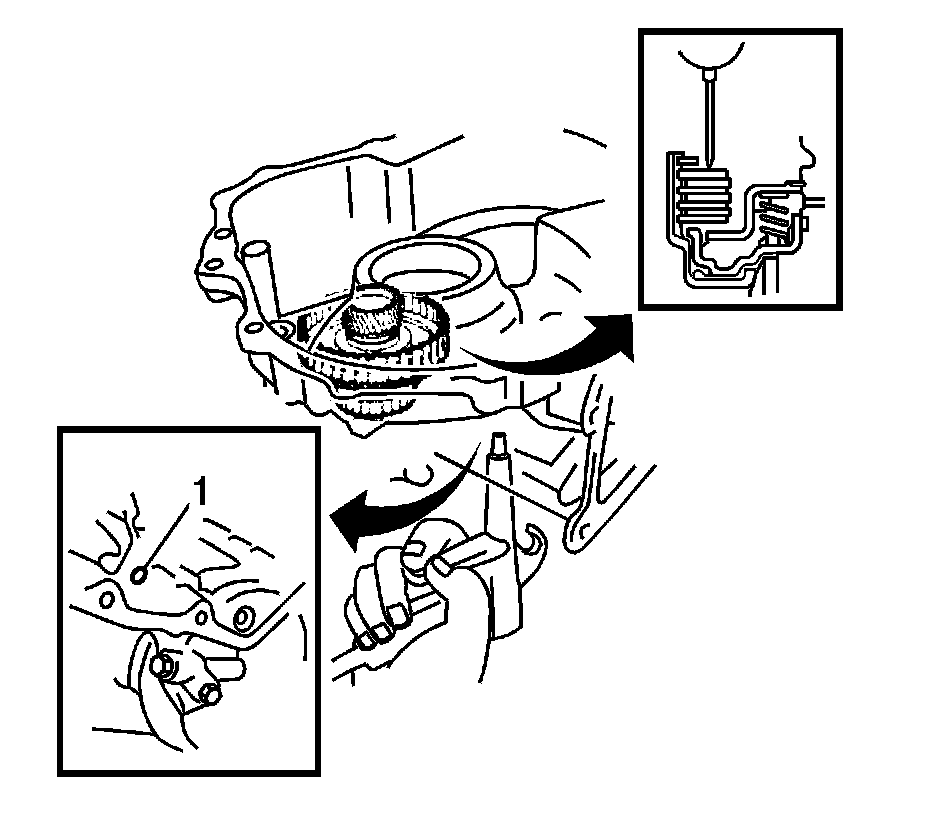

2. Using a dial indicator, measure the 4th clutch piston stroke while applying (1) and releasing compressed air.

Standard pack clearance - 1.51-1.90 mm (0.0594-0.0748 in)

3. If the pack clearance is less than the minimum, parts may have been assembled incorrectly, so check and reassemble again.
There are three flanges in different thickness. Refer to Transmission General Specifications (Transmission General Specifications) for standard flange thickness D.

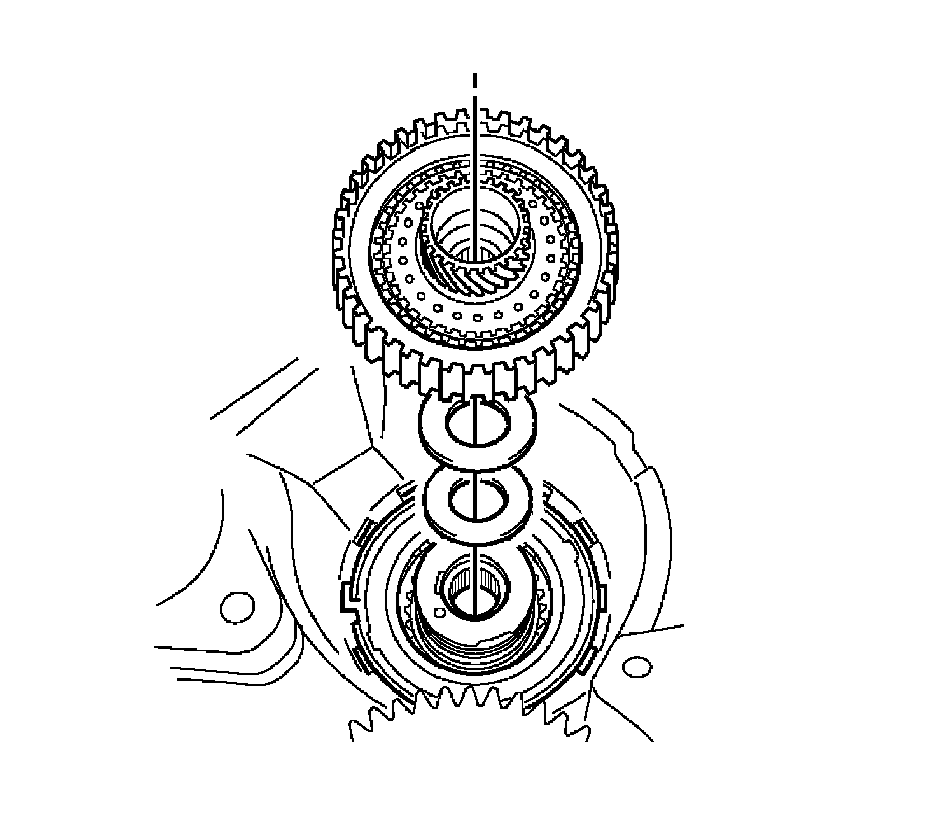

4. Coat the bearing and bearing race with petroleum jelly, and install them into the transmission case.

* Standard inside bearing diameter - 37.73 mm (1.4854 in)
* Standard outside bearing diameter - 58.0 mm (2.283 in)
* Standard inside race diameter - 29.9 mm (1.177 in)
* Standard outside race diameter - 55.5 mm (2.185 in)

5. Install the 4th clutch to the transmission case.
