Home >> Pontiac >> 2009 >> Vibe AWD L4-2.4L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Application and ID >> Relay Block

Relay Block




Electrical Center Identification Views

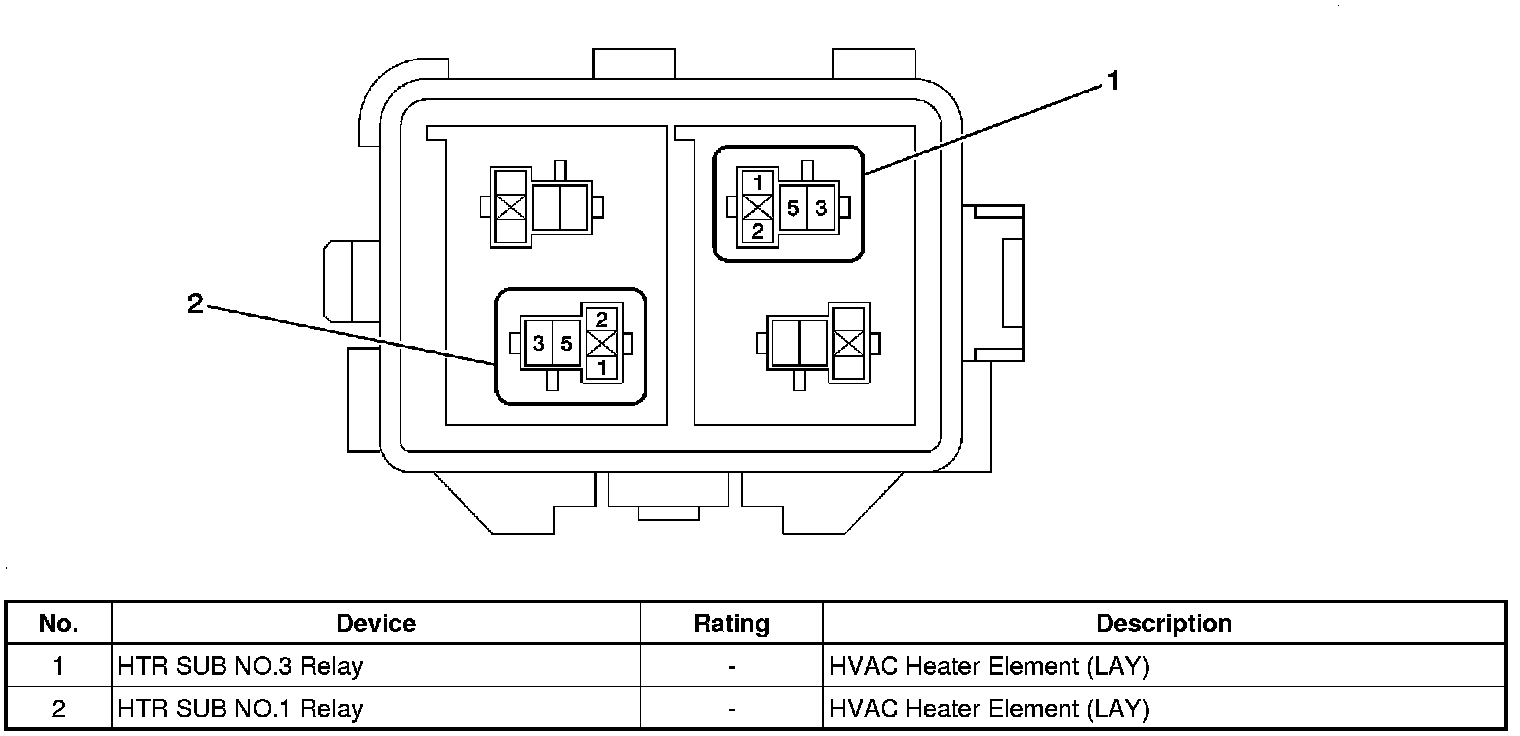

Relay Block - I/P Front View

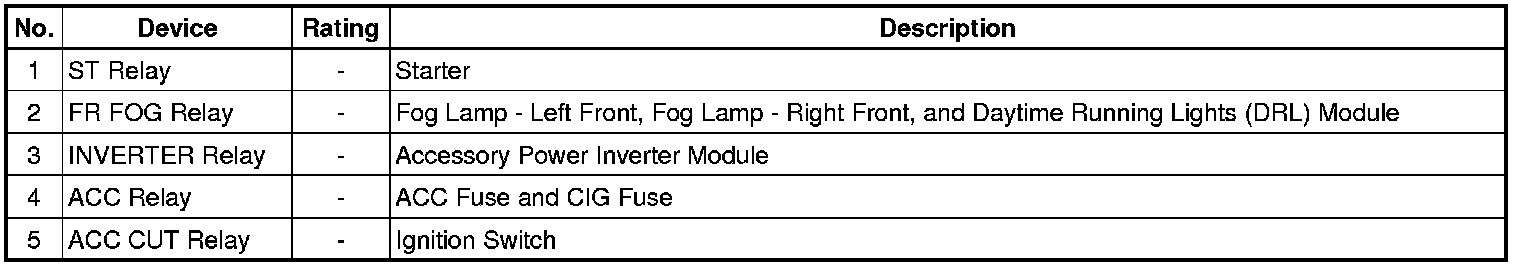

Relay Block - Underhood Top View
