Tightening Torques & Sequences

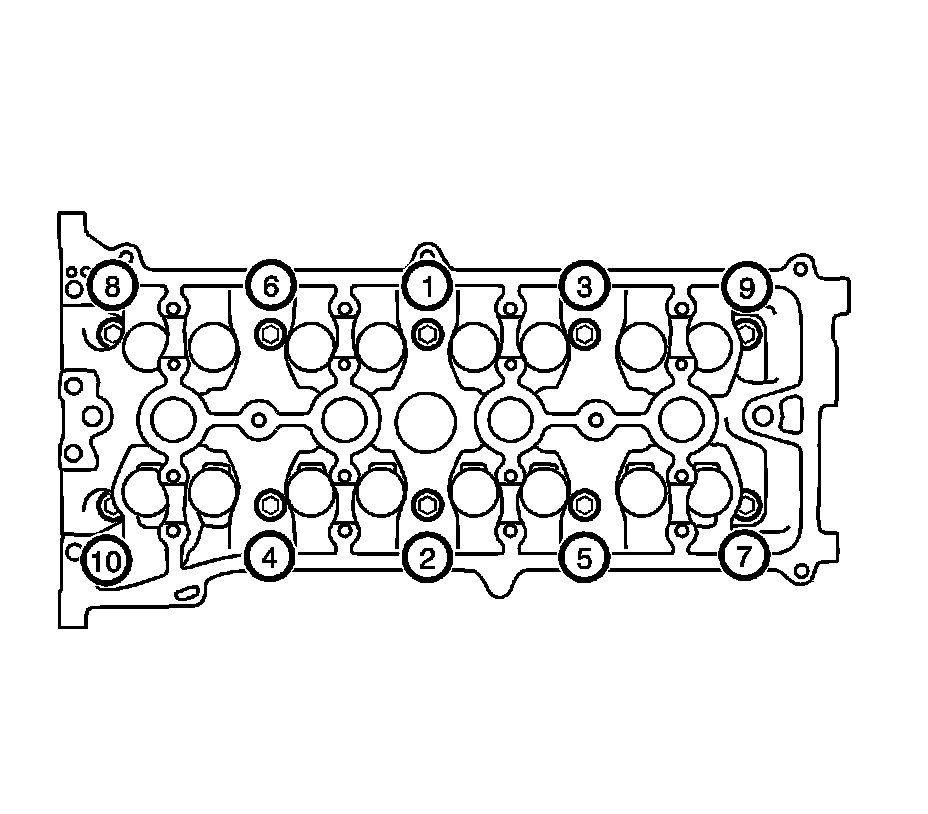

Cylinder Head Sub-Assembly Bolt
1st 70 Nm (52 lb ft)
2nd Turn 90 degrees

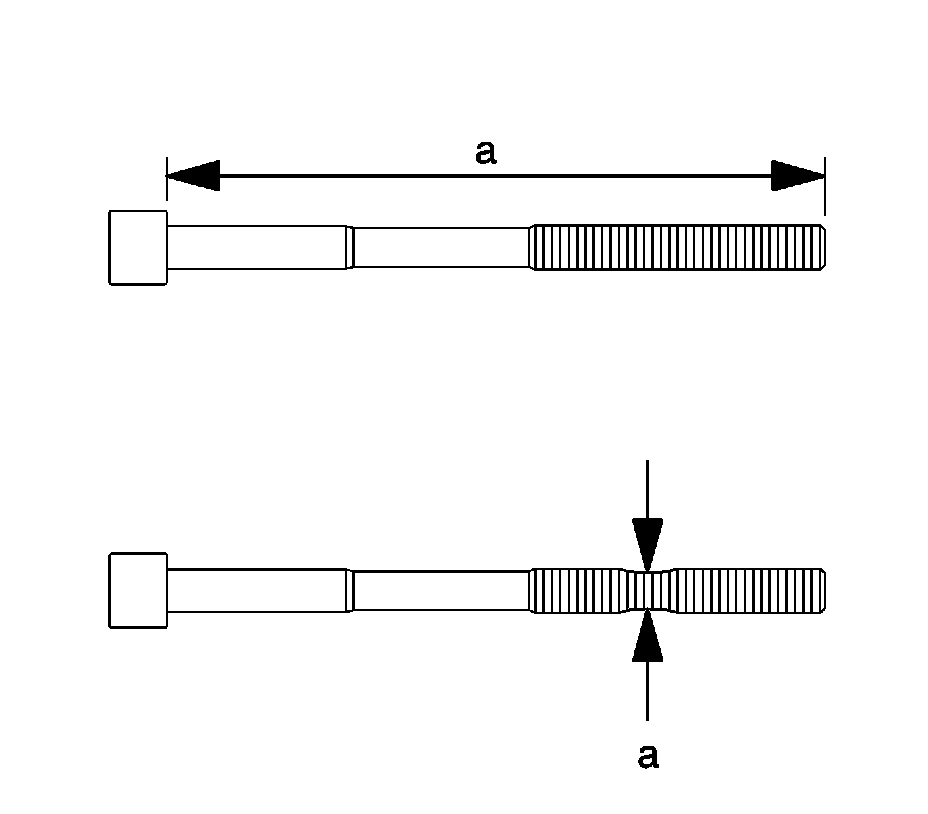

Cylinder Head Bolt Re-usability

Standard bolt length 141.3 to 142.7 mm (5.563 to 5.618 in)
Maximum bolt length 144.2 mm (5.677 in)

INTAKE MANIFOLD

Intake manifold with the 5 bolts (1, 3, 8, 10, 11) and 2 nuts (2, 5) and tighten to 30 Nm (22 lb ft)

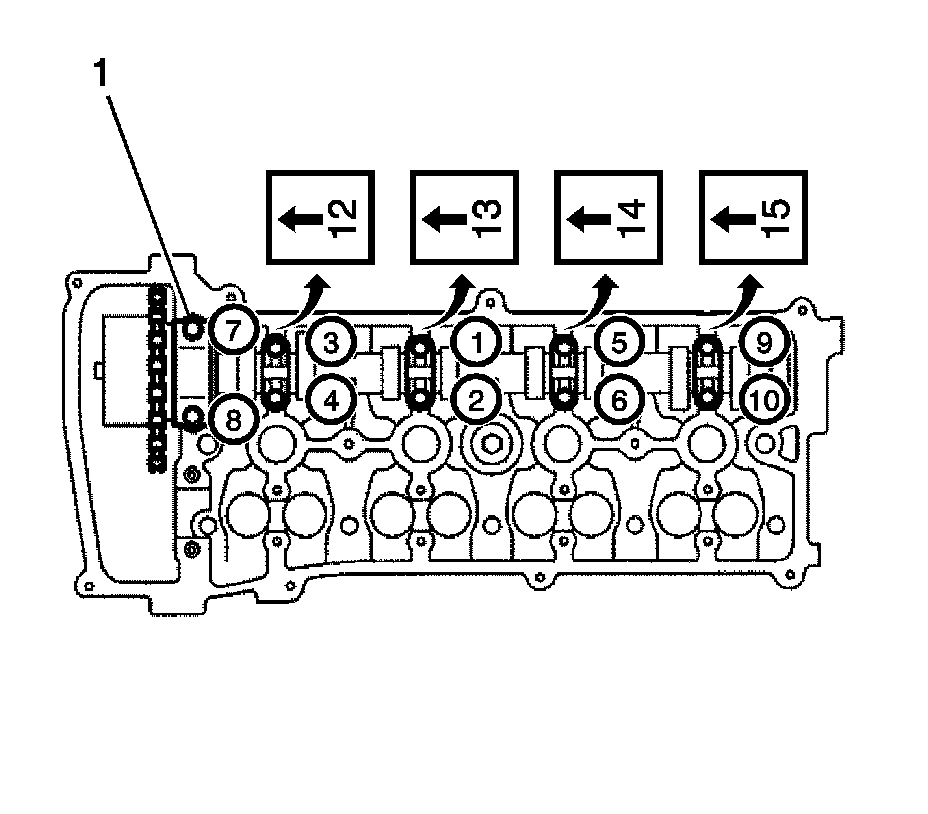

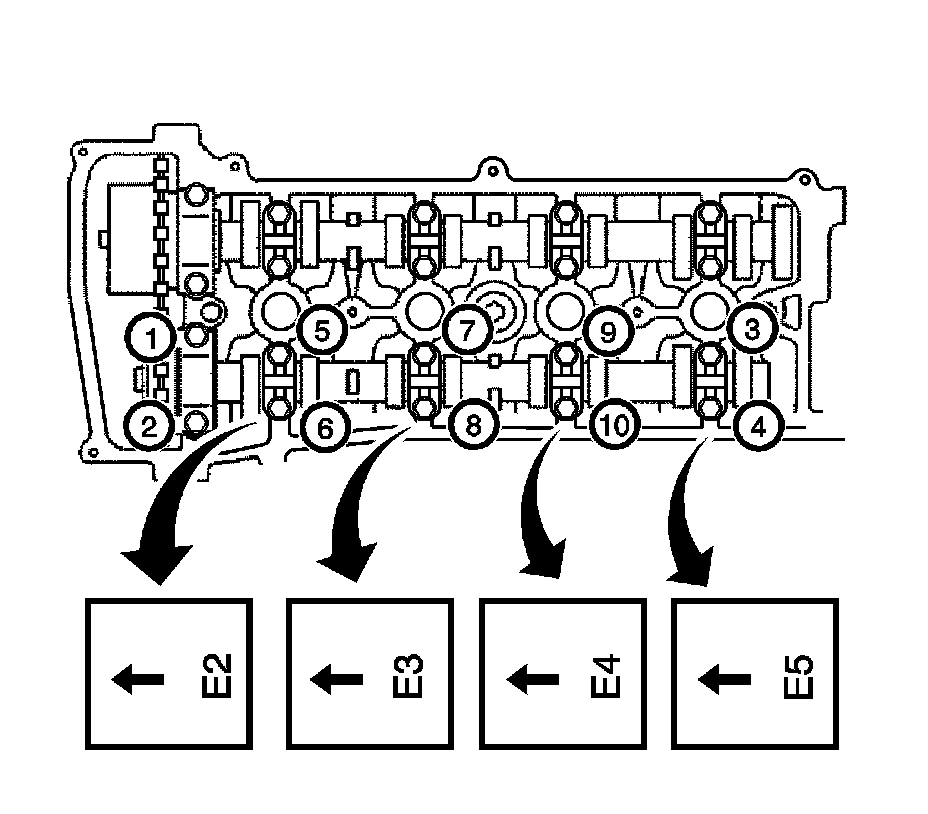

CAMSHAFT BEARING CAP BOLT

Intake:

Camshaft Bolt
No.1 30 Nm (22 Ib ft)
Other 9.0 Nm (80 Ib in)

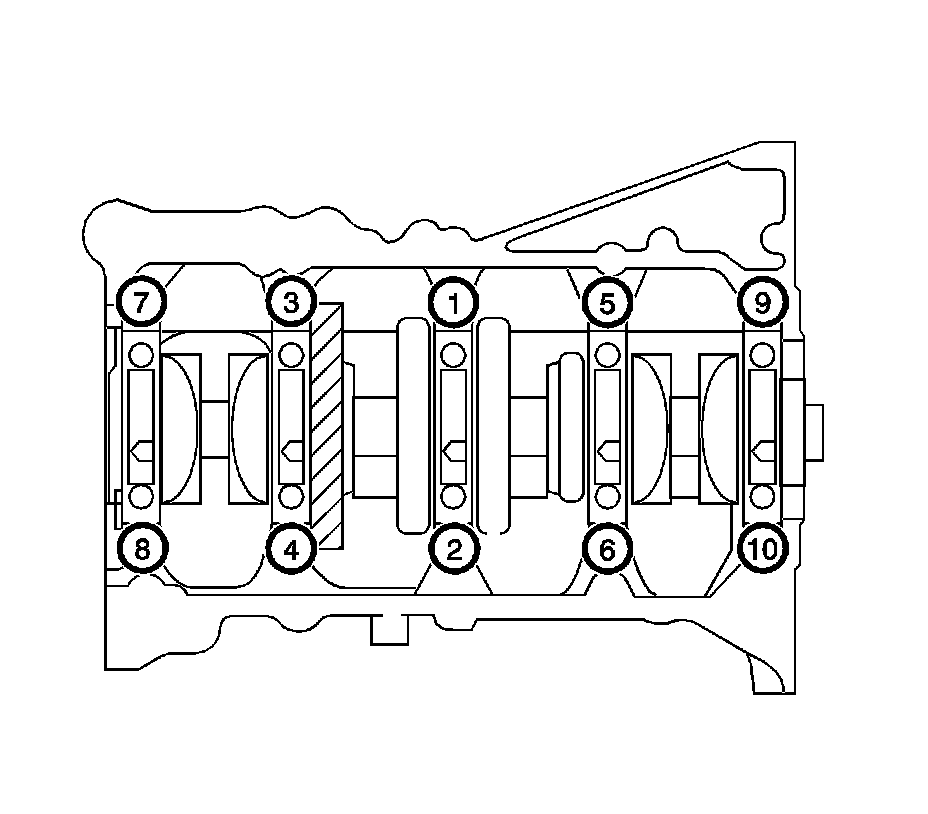

MAIN BEARING CAP

Crankshaft Bearing cap Bolt
1st 20 Nm (15 lb ft)
2nd 40 Nm (30 lb ft)
3rd Turn 90 degrees

ROD BEARING CAP

Connecting Rod Cap Bolt
1st 25 Nm (18 lb ft)
2nd Turn 90 degrees

CRANKSHAFT PULLEY

Crankshaft Pulley Bolt 180 Nm (133 lb ft)

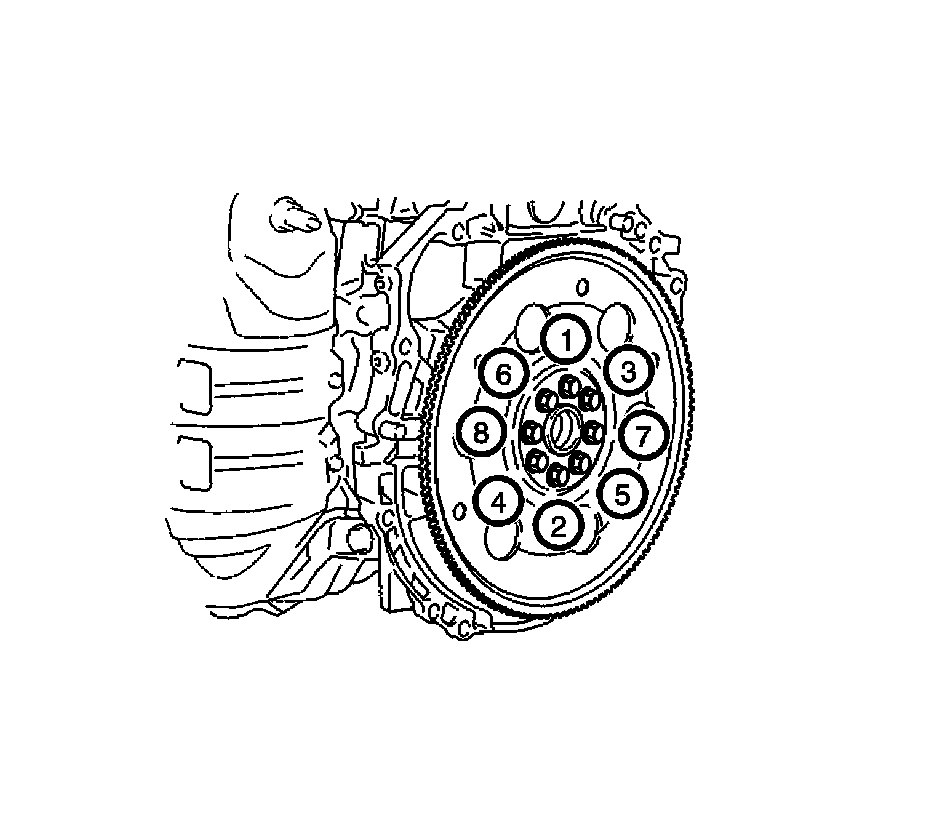

FLYWHEEL/FLEXPLATE

Flywheel Sub-Assembly Bolt (For Manual Transaxle) 130 Nm (96 Ib ft)
Drive Plate and Ring Sub-Assembly Bolt (For Automatic Transaxle) 98 Nm (72 Ib ft)

OIL PUMP

Oil Pump Drive Shaft Sprocket Bolt 30 Nm (22 lb ft)

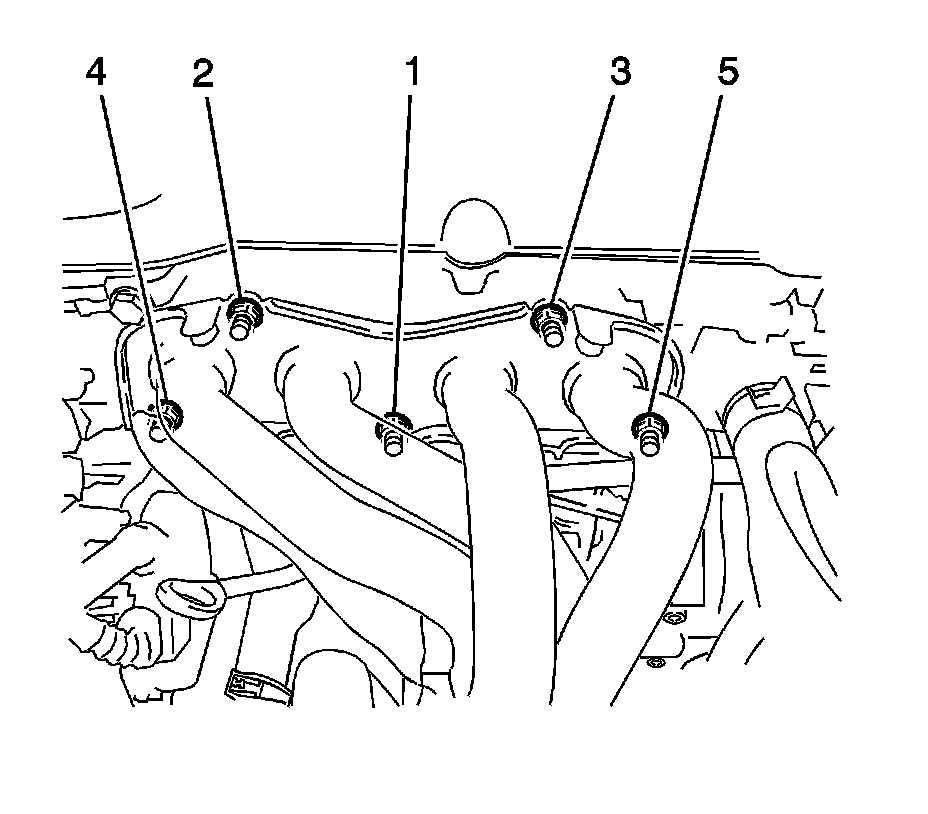

EXHAUST MANIFOLD

*Exhaust Manifold Converter Sub-Assembly Bolt 37 Nm (27 lb ft)

*Install the exhaust manifold converter sub-assembly with the 5 nuts (1, 2, 3, 4, 5) in the order shown in the illustration.

WATER PUMP

Water Pump Bolts 9 Nm (80 lb in)
