Inflatable Restraint Side Impact Module Replacement - Right

Inflatable Restraint Side Impact Module Replacement - Right Side

Removal Procedure




1. Disable the SIR system. Refer to SIR Disabling and Enabling (Service and Repair).
2. Remove the front seat back cover. Refer to Driver or Passenger Seat Back Cushion Cover and Pad Replacement (With Seat Back Board) (Driver or Passenger Seat Back Cushion Cover and Pad Replacement (With Seat Back Board))Driver or Passenger Seat Back Cushion Cover and Pad Replacement (Without Seat Back Board) (Driver or Passenger Seat Back Cushion Cover and Pad Replacement (Without Seat Back Board)).

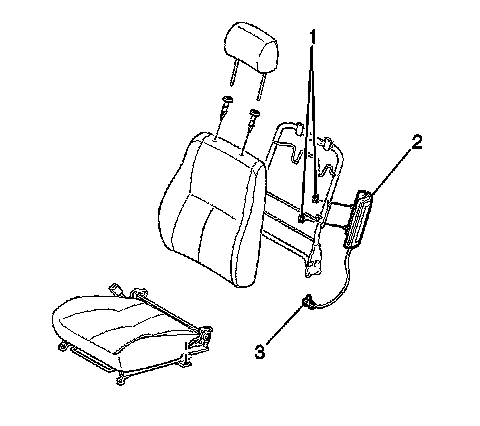

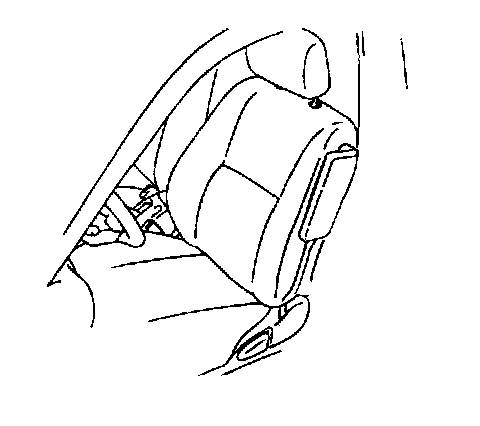

3. Disconnect the electrical connector (3) from the side impact module.
4. Remove the side impact module fasteners (1).
5. Remove the side impact module (2).
6. Fully deploy the module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflatable Restraint Module Handling and Scrapping (Service and Repair).

Installation Procedure




1. Install the side impact module (2).
2. Install the side impact module fasteners (1).
3. Connect the electrical connector (3) to the side impact module.




4. Install the front seat back cover. Refer to Driver or Passenger Seat Back Cushion Cover and Pad Replacement (With Seat Back Board) (Driver or Passenger Seat Back Cushion Cover and Pad Replacement (With Seat Back Board))Driver or Passenger Seat Back Cushion Cover and Pad Replacement (Without Seat Back Board) (Driver or Passenger Seat Back Cushion Cover and Pad Replacement (Without Seat Back Board)).
5. Enable the SIR system. Refer to SIR Disabling and Enabling (Service and Repair).
