Pontiac
>>
2009
>>
Vibe AWD L4-2.4L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams
>>
Power Distribution Diagram 5

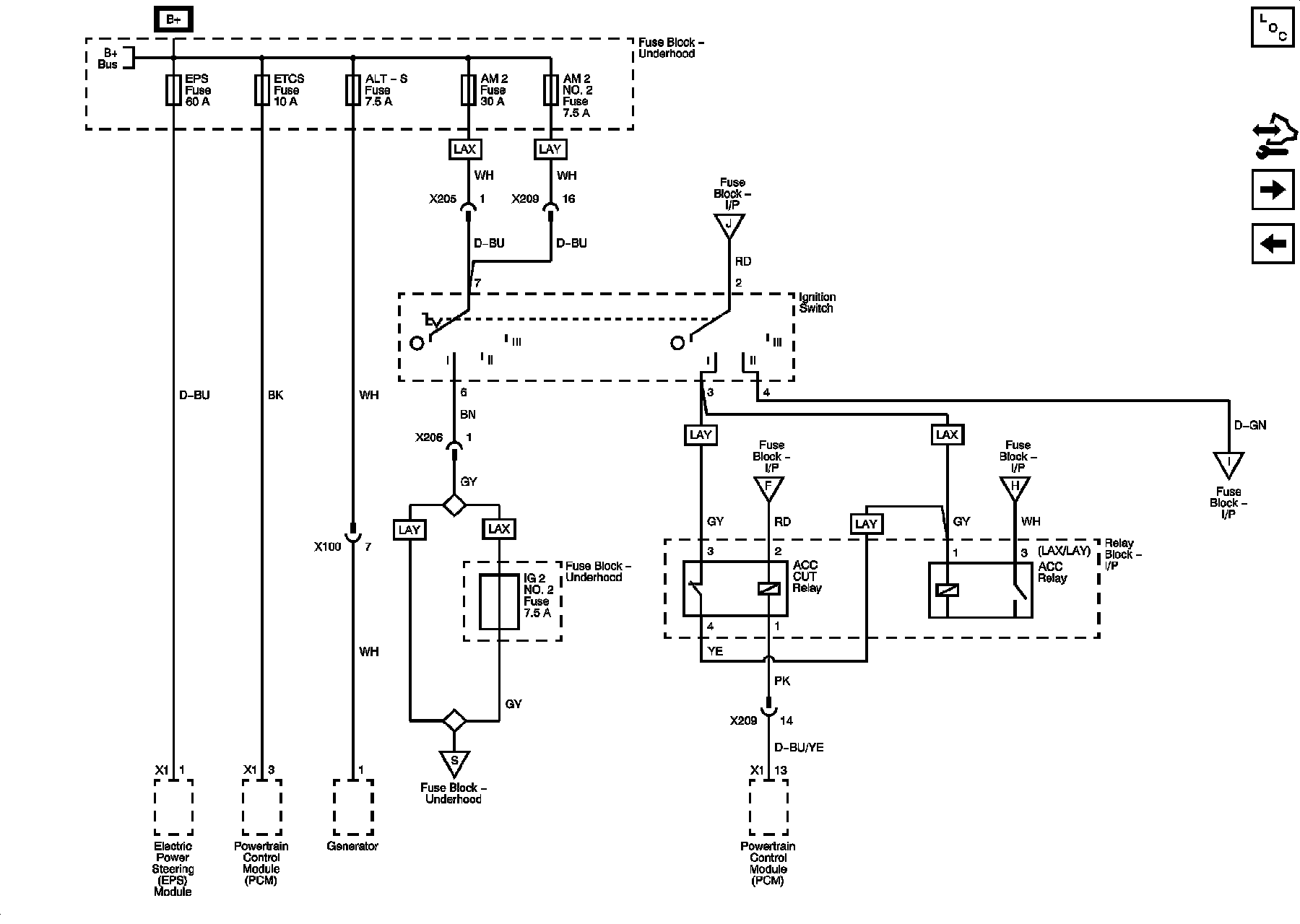

Power Distribution Diagram 5
Power Distribution Schematics
Fuse Block
- Underhood, EPS, ETCS,
ALT
-S, AM2, AM2 NO. 2 Fuses, Fuse Block - I/P, ACC CUT, ACC Relays and
Ignition Switch
