Headlamp: Diagrams




Component Connector End Views

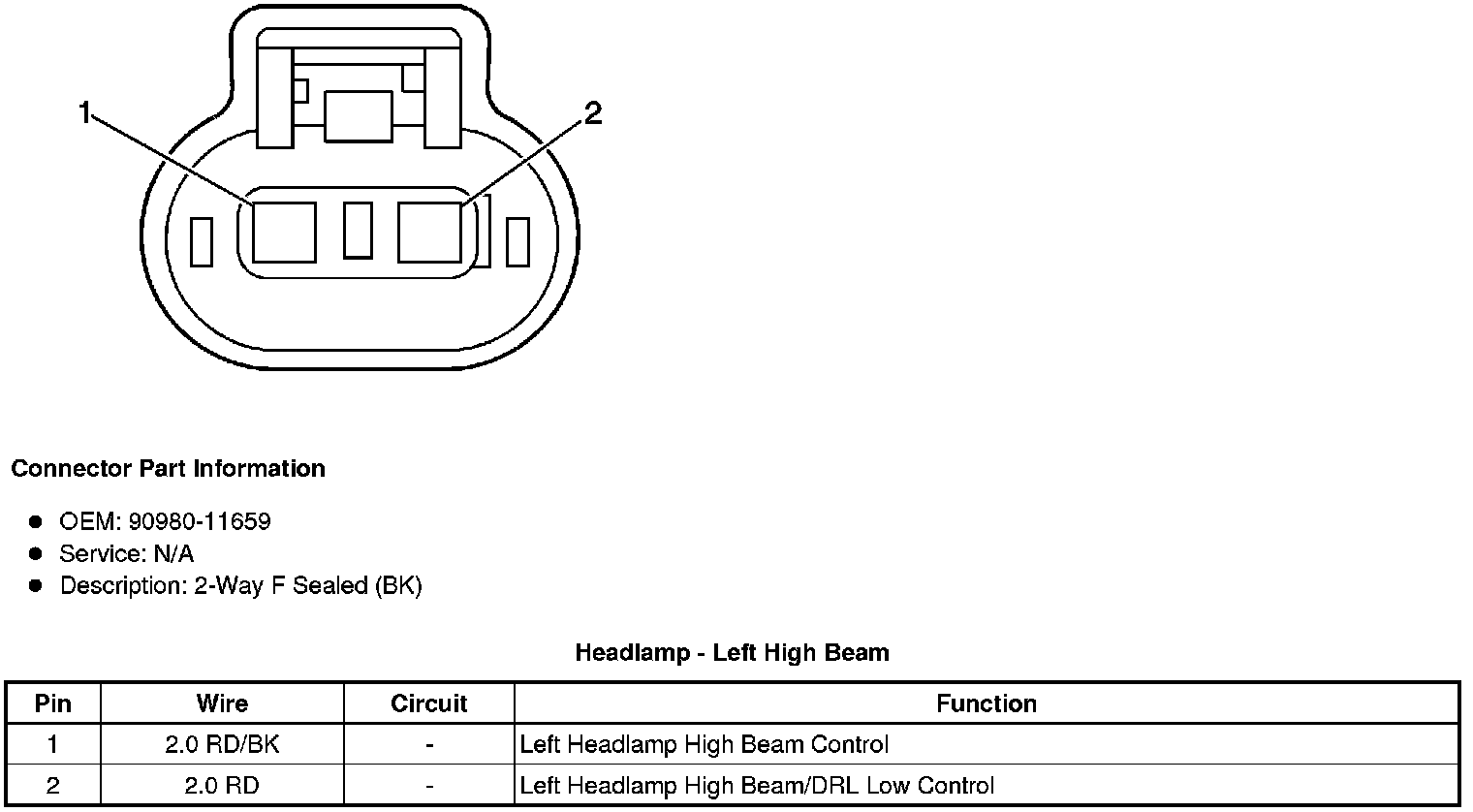

Headlamp - Left High Beam

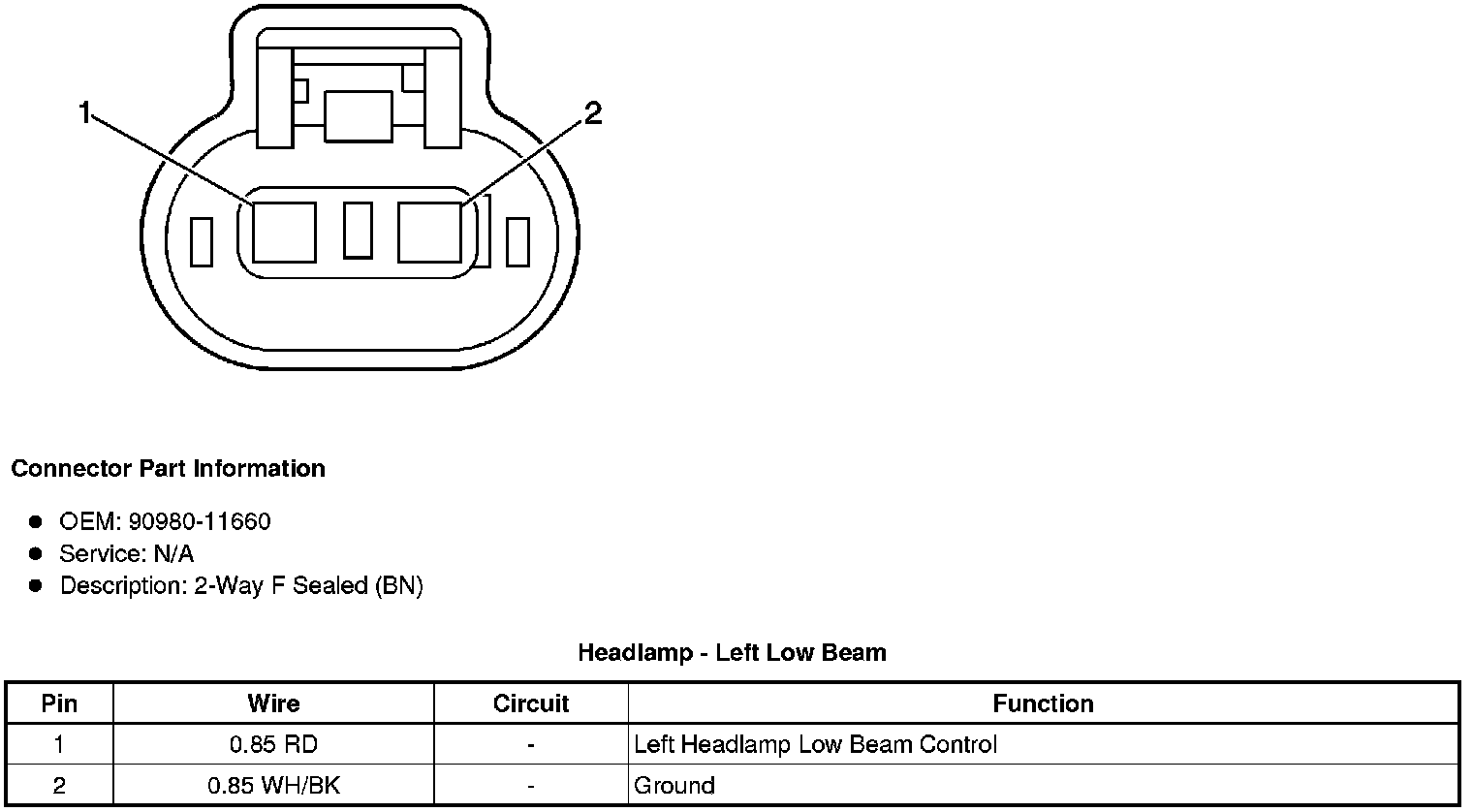

Headlamp - Left Low Beam

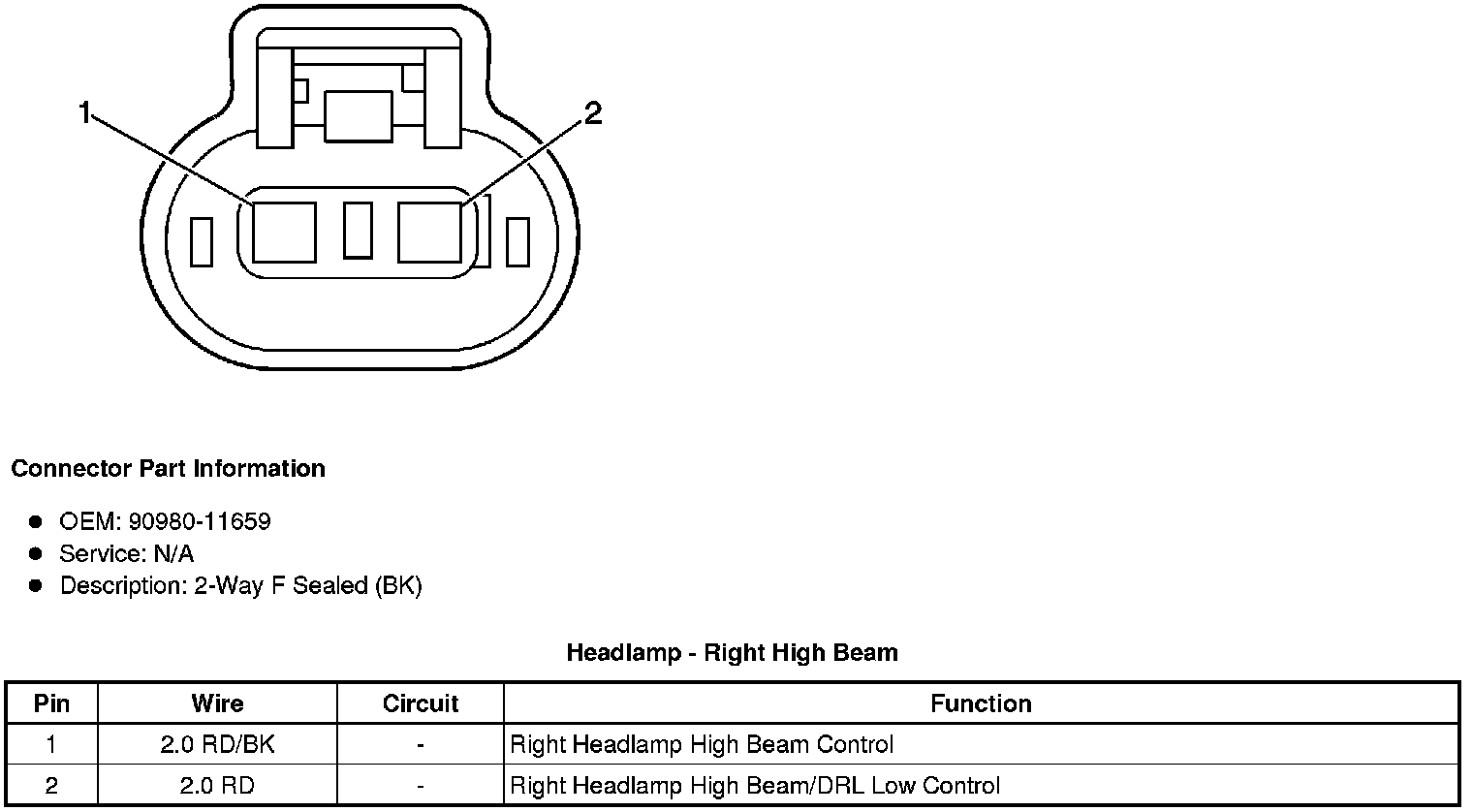

Headlamp - Right High Beam






Headlamp - Right Low Beam
