Home >> Pontiac >> 2009 >> Vibe AWD L4-2.4L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> TXV Air Conditioning (A/C) System Diagnosis (Reference Table)

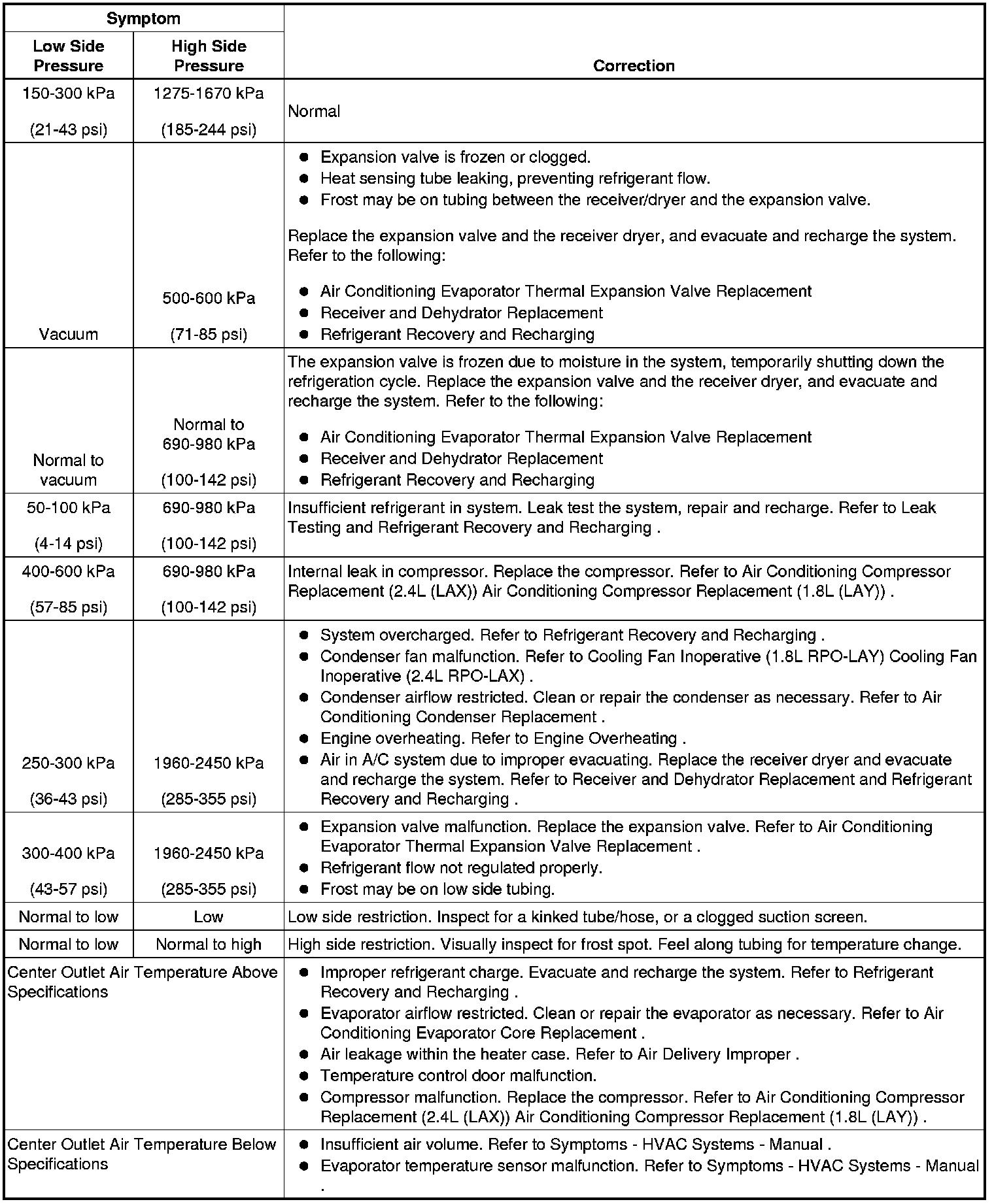

TXV Air Conditioning (A/C) System Diagnosis (Reference Table)




TXV Air Conditioning (A/C) System Diagnosis (Reference Table)
