FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Pontiac
>>
2009
>>
Vibe AWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Splices
>>
Master Splice List
Master Splice List
Master Electrical Component List

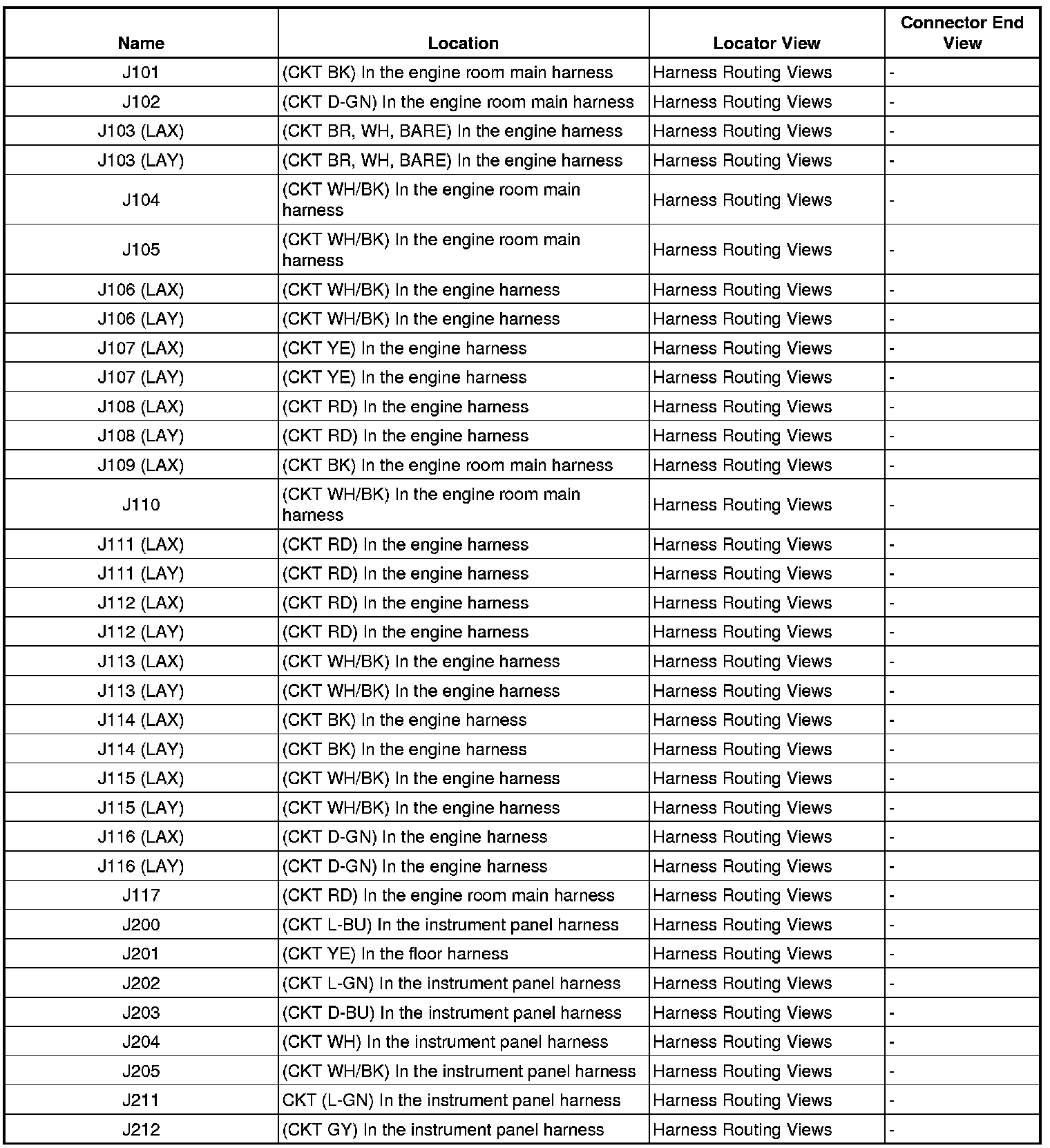

J101 - J212:

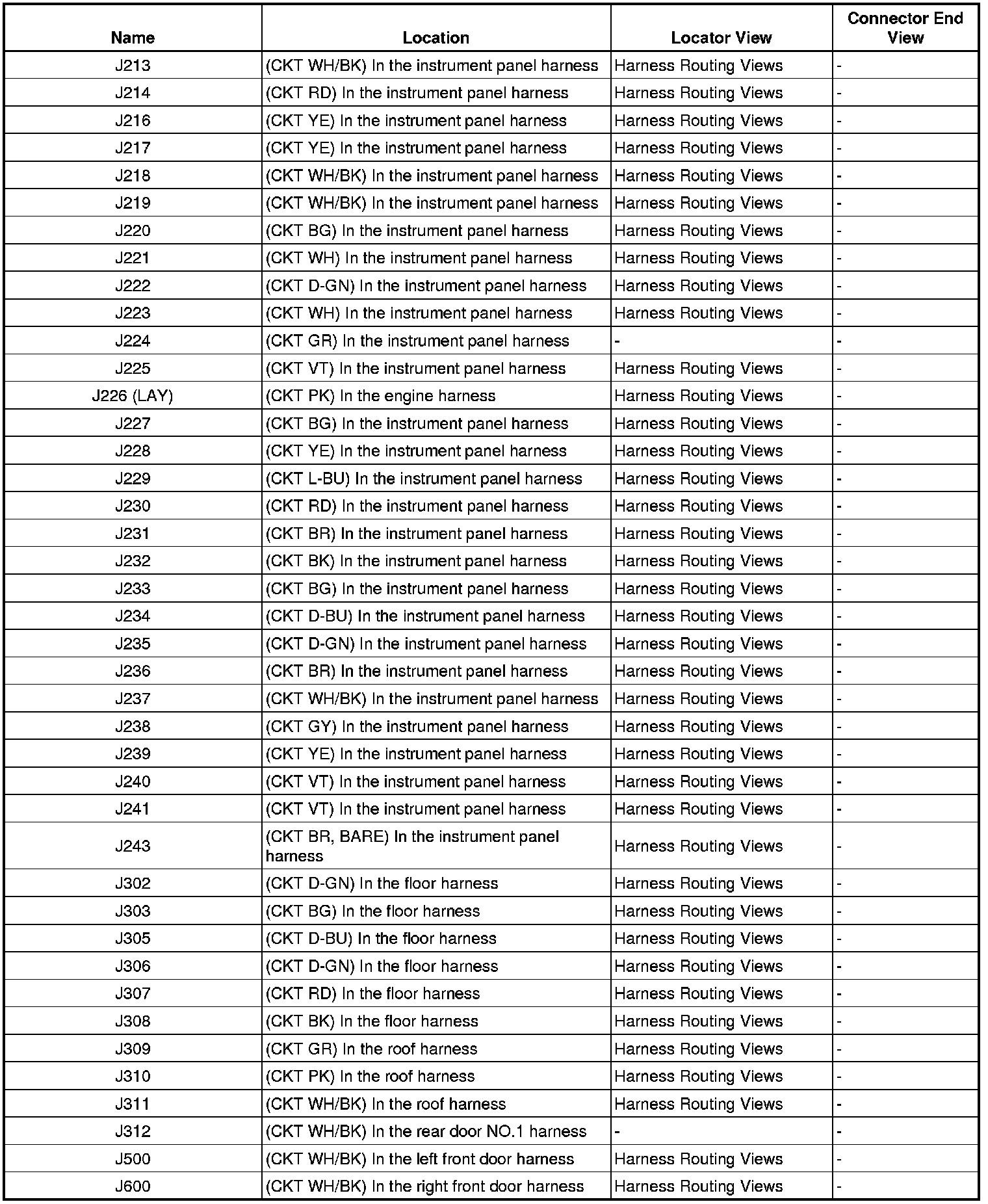

J213 - J600:

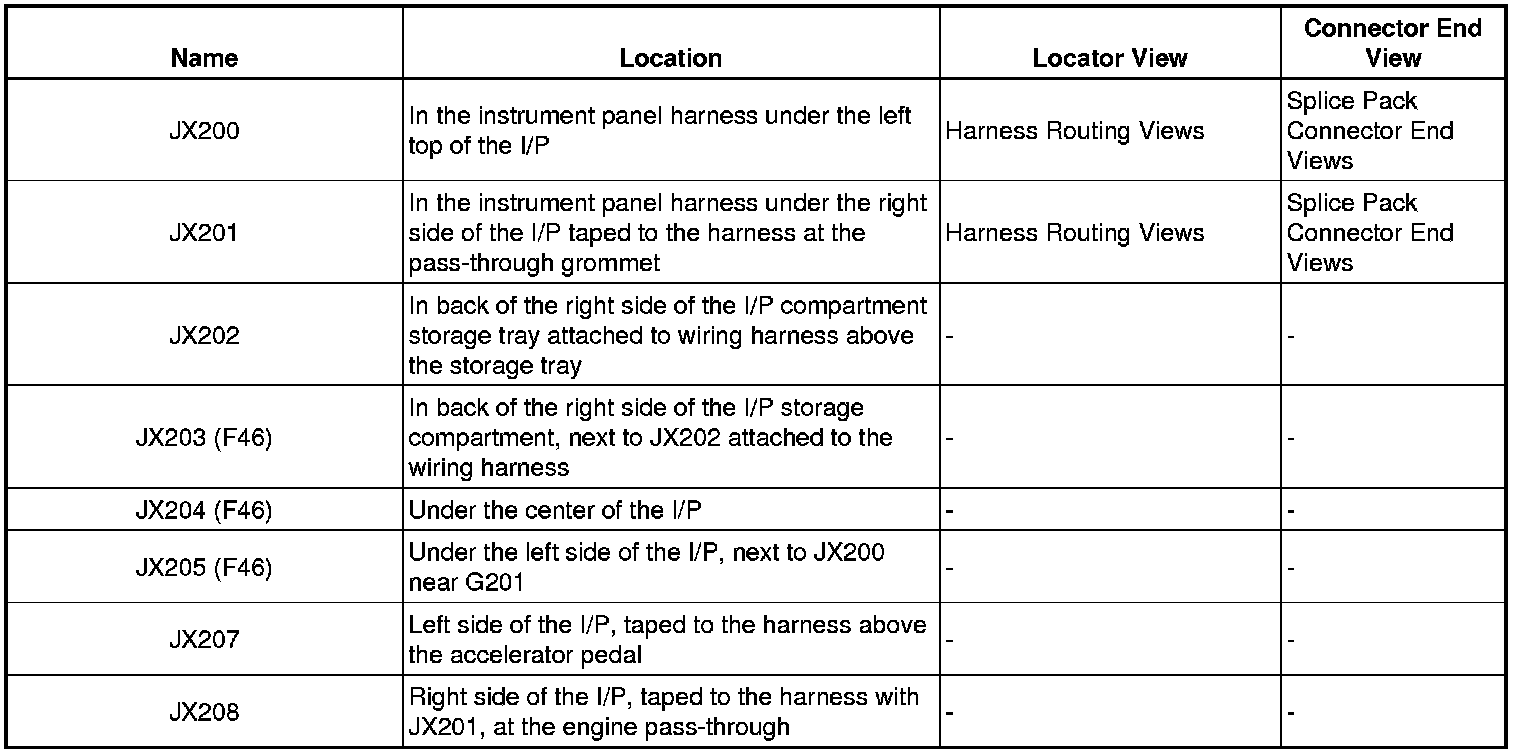

JX200 - JX208:
