Rear Wheel Drive Shaft Disassembled Views

Rear Wheel Drive Shaft Disassembled Views

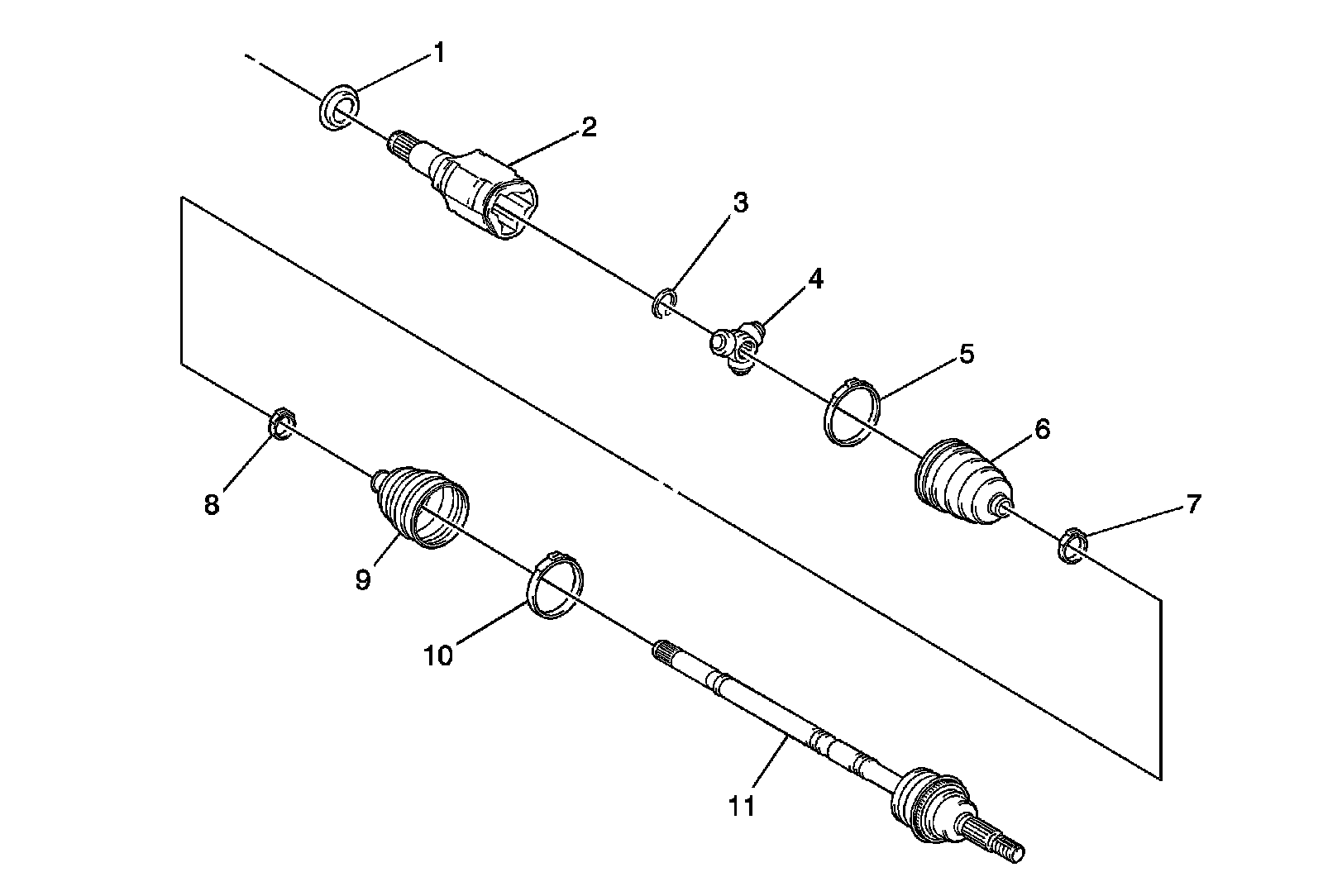

1 - Rear Drive Shaft Dust Cover
2 - Rear Drive Shaft Inboard Joint Assembly
3 - Snap Ring
4 - Tripod Joint
5 - No. 2 Rear Drive Shaft Inboard Joint Boot Clamp
6 - Inboard Joint Boot
7 - Rear Drive Shaft Inboard Joint Boot Clamp
8 - Rear Drive Shaft Outboard Joint Boot Clamp
9 - Outboard Joint Boot
10 - No. 2 Rear Drive Shaft Outboard Joint Boot Clamp
11 - Rear Drive Shaft Outboard Joint Shaft
