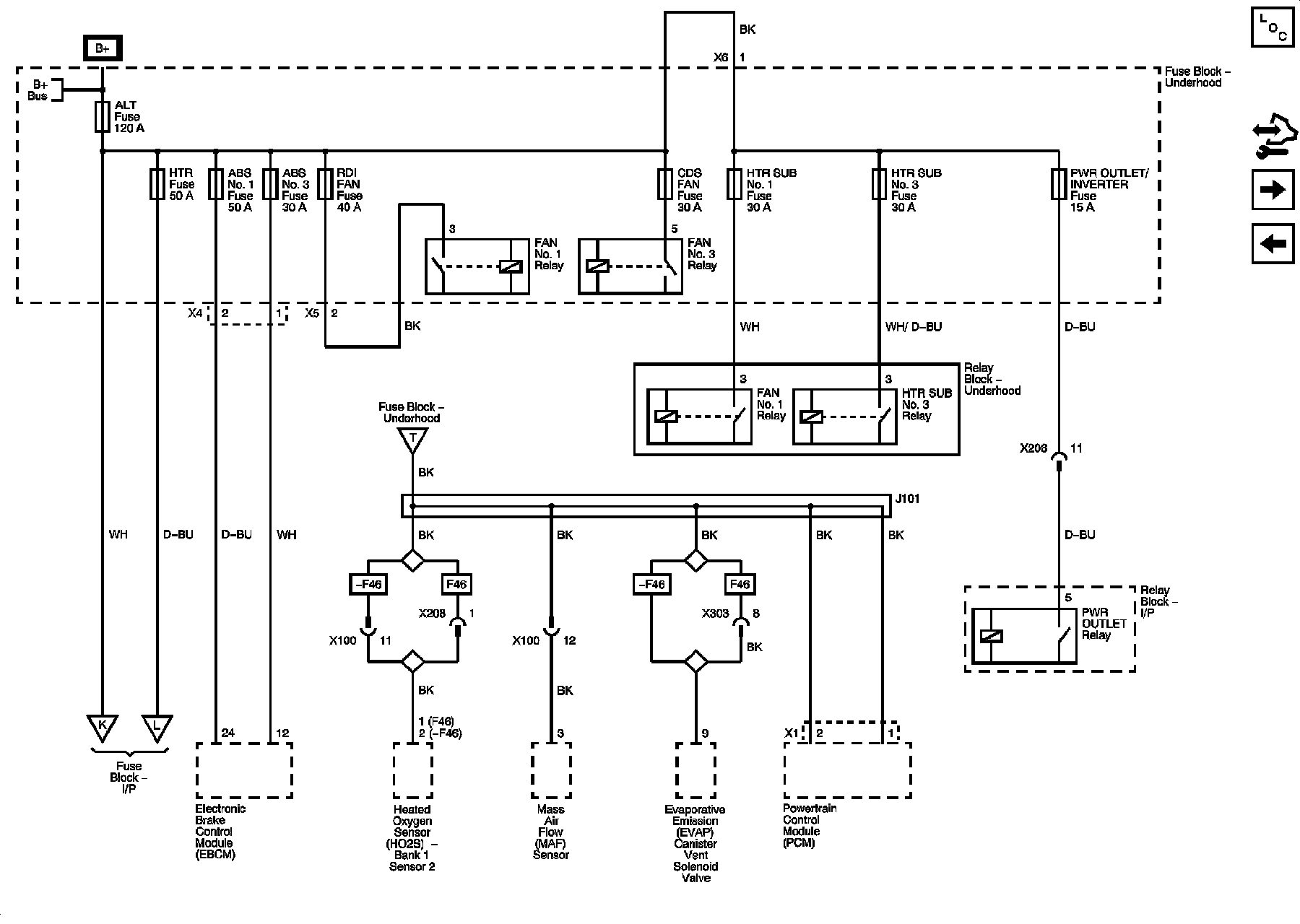

Power Distribution Diagram 4




Power Distribution Schematics

Fuse Block - Underhood, ALT, HTR, ABS NO. 1, ABS NO. 3, RDI FAN, CDS FAN, HTR SUB NO. 1, HTR SUB NO. 3, INV Fuses and FAN 1, FAN 2, FAN 3, HTR SUB NO.1, HTR SUB NO. 3 Relays, Fuse Block - I/P, INVERTER Relay
