Pontiac
>>
2009
>>
Vibe AWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
System Diagram
>>
Power Distribution Diagrams
>>
Power Distribution Diagram 3
Power Distribution Diagram 3
Power Distribution Schematics
Fuse Block

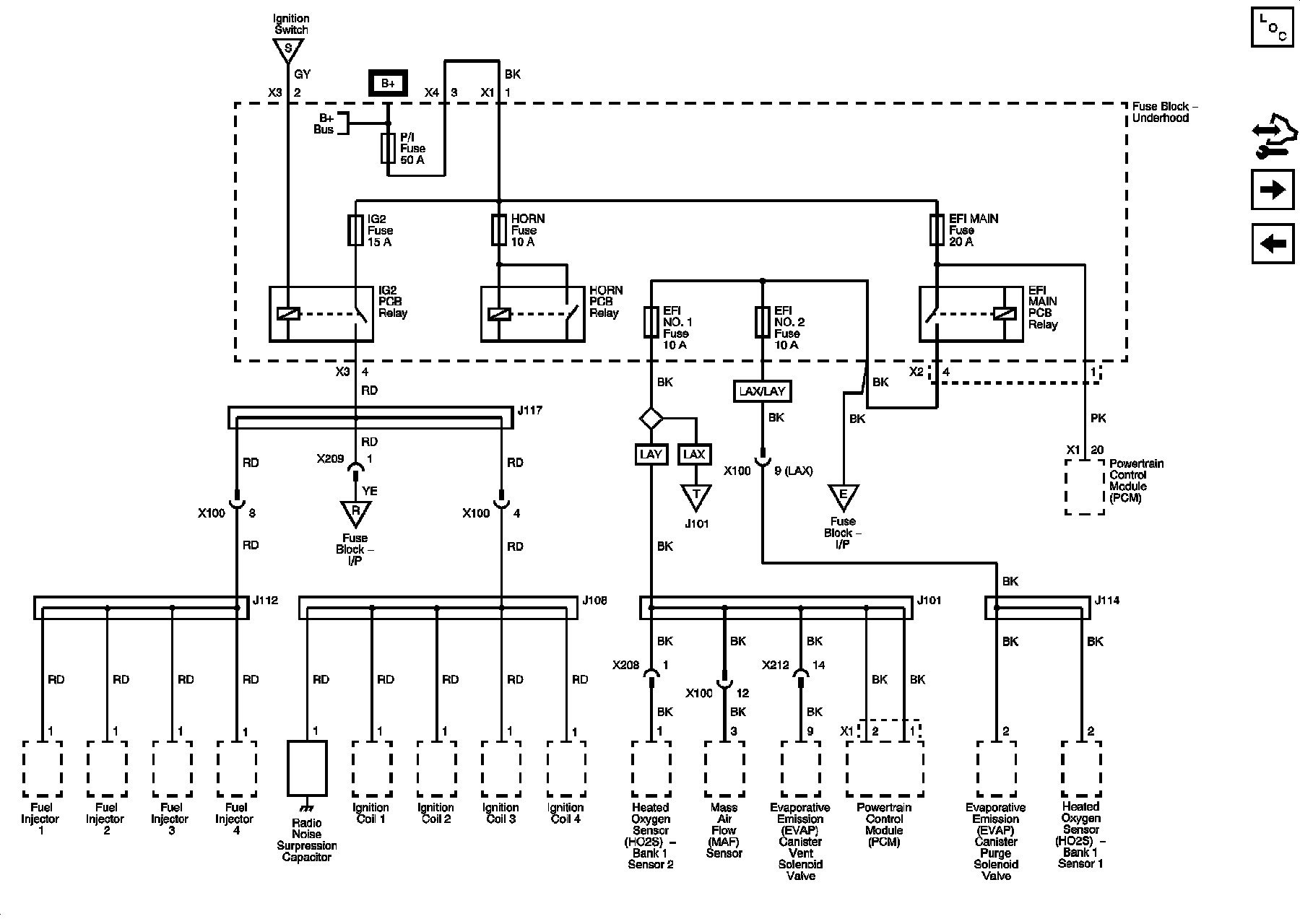

- Underhood, P/I, HORN, IG NO.2, IG2, EFI NO.1, EFI NO.2, EFI MAIN Fuses and HORN, IG2, EFI MAIN Relays
