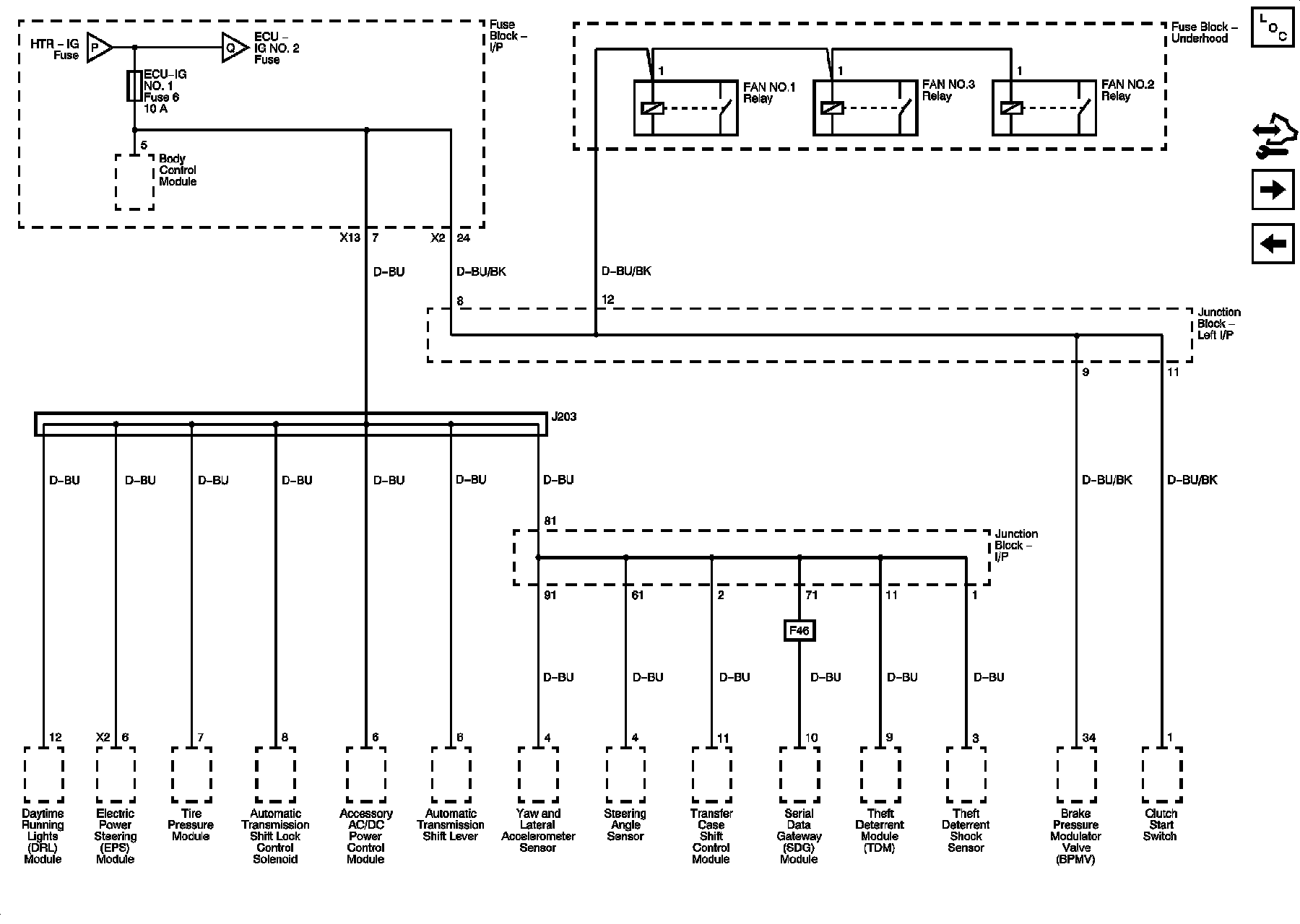

Power Distribution Diagram 10




Power Distribution Schematics

Fuse Block - I/P, ECU-IG Fuse, Fuse Block - Underhood, FAN NO.1, FAN NO.3 Relays
