Master Connector List




Master Electrical Component List

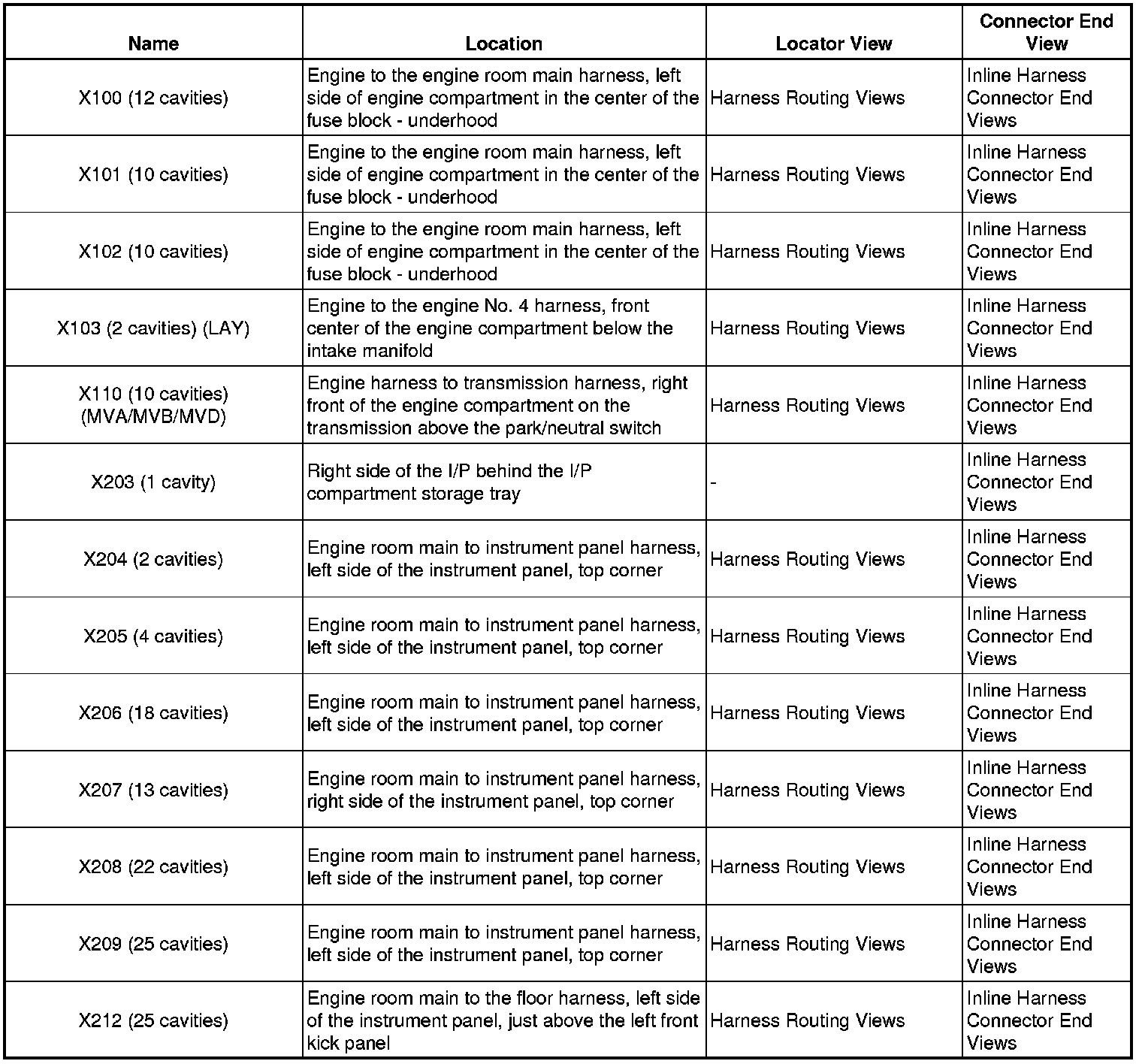

X100 - X212:





X215 - X401:





X402 - X800:
