X306

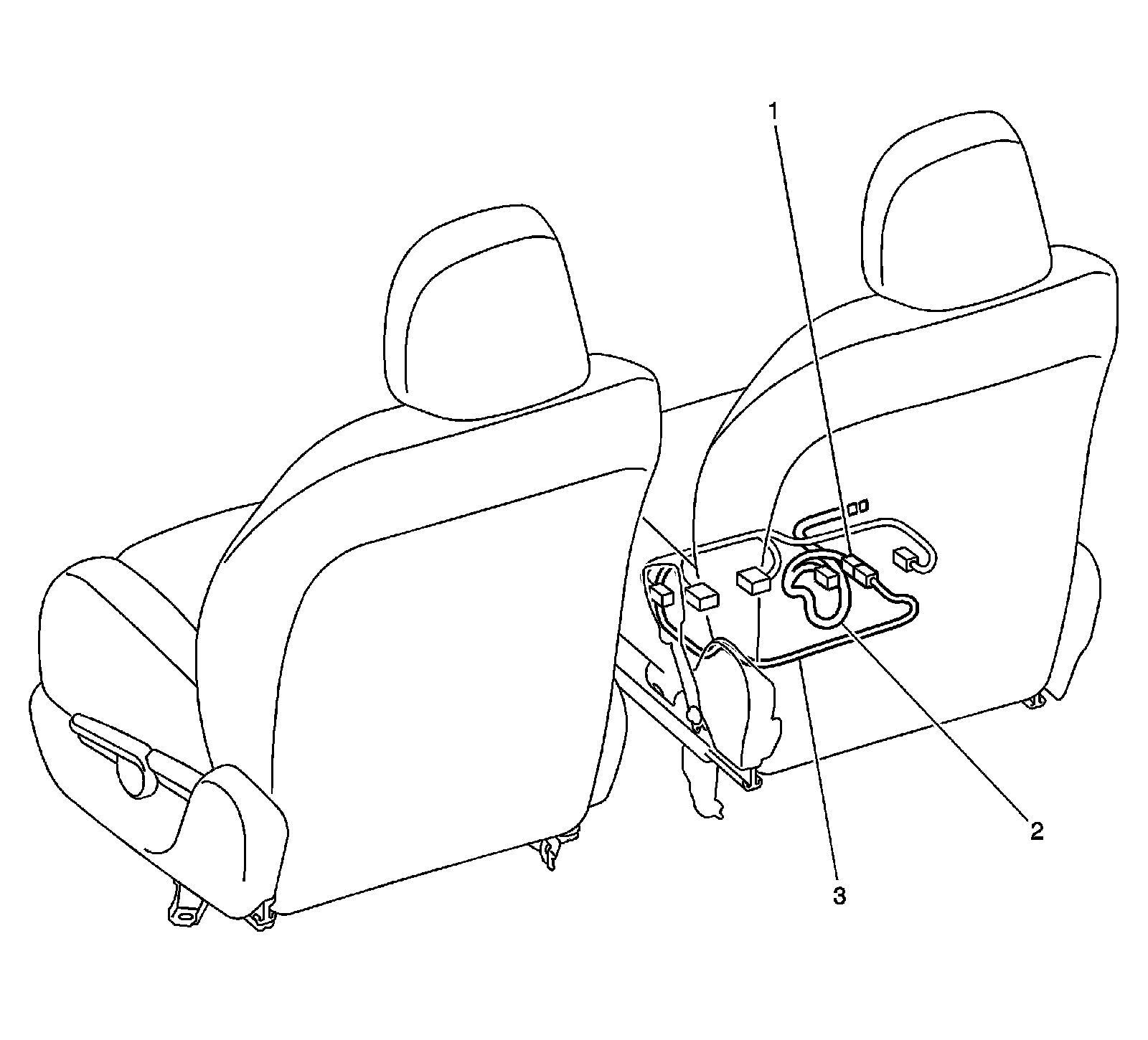

Harness Routing Views

Floor NO.2, and Right Front Seat Harness Routing




1 - X306
2 - Floor NO.2 Harness
3 - Right Front Seat Harness
