X215

Harness Routing Views

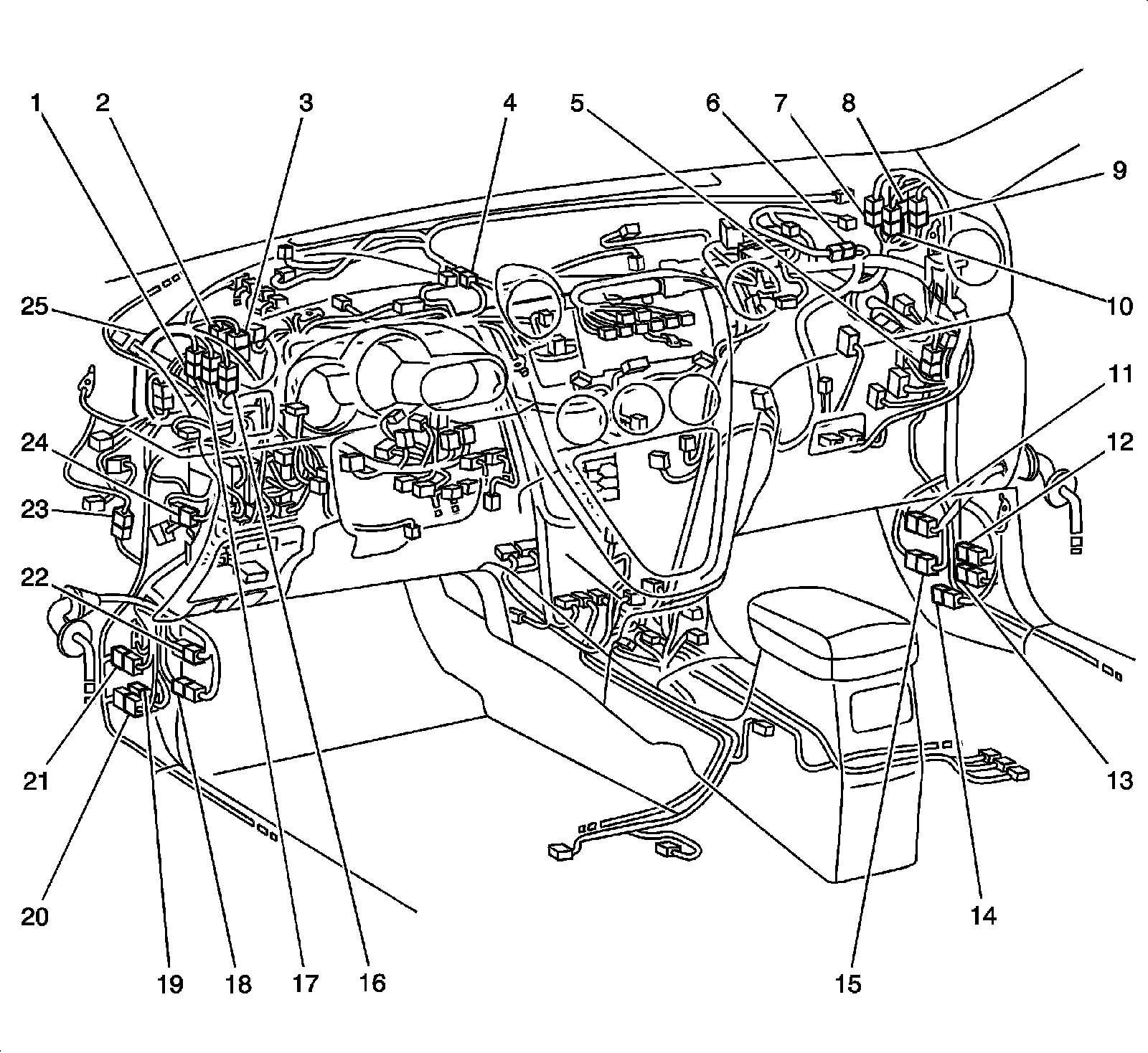

Engine Room Main, Roof, Instrument Panel, Instrument Panel Assembly, Floor NO.2, and Instrument Panel NO.2 Harness Routing - 1 of 3




1 - X208
2 - X206
3 - X209
4 - X224
5 - X217
6 - X227
7 - X215
8 - X207
9 - X216
10 - X225
11 - X601
12 - X218
13 - X219
14 - X220
15 - X600
16 - X204
17 - X205
18 - X500
19 - X223
20 - X221
21 - X222
22 - X501
23 - X212
24 - X228
25 - Engine Room Main Harness
