Control Module, Transfer Case
Control Module, Transfer Case

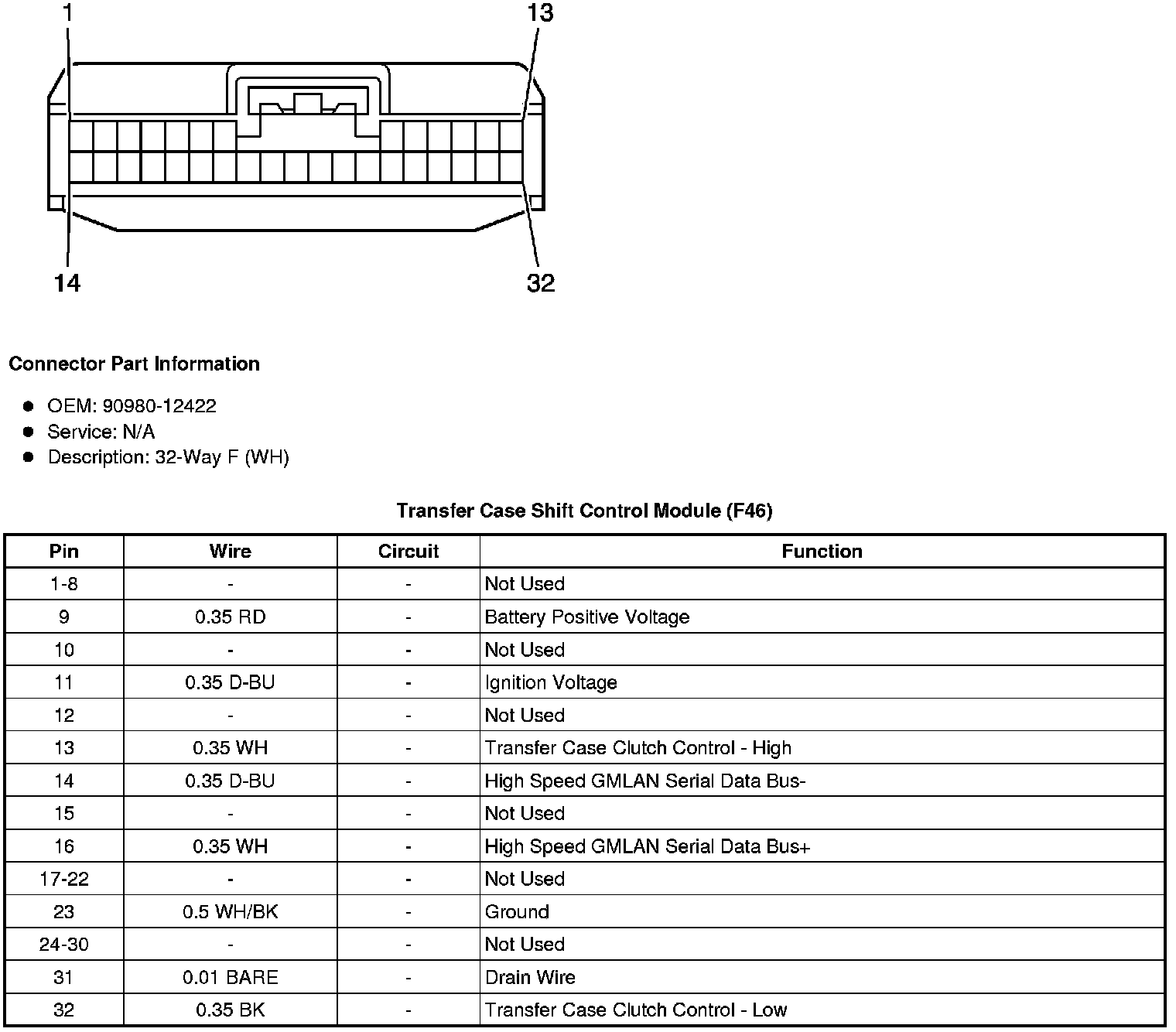

Component Connector End Views
Transfer Case Shift Control Module (F46)
