Master Electrical Component List

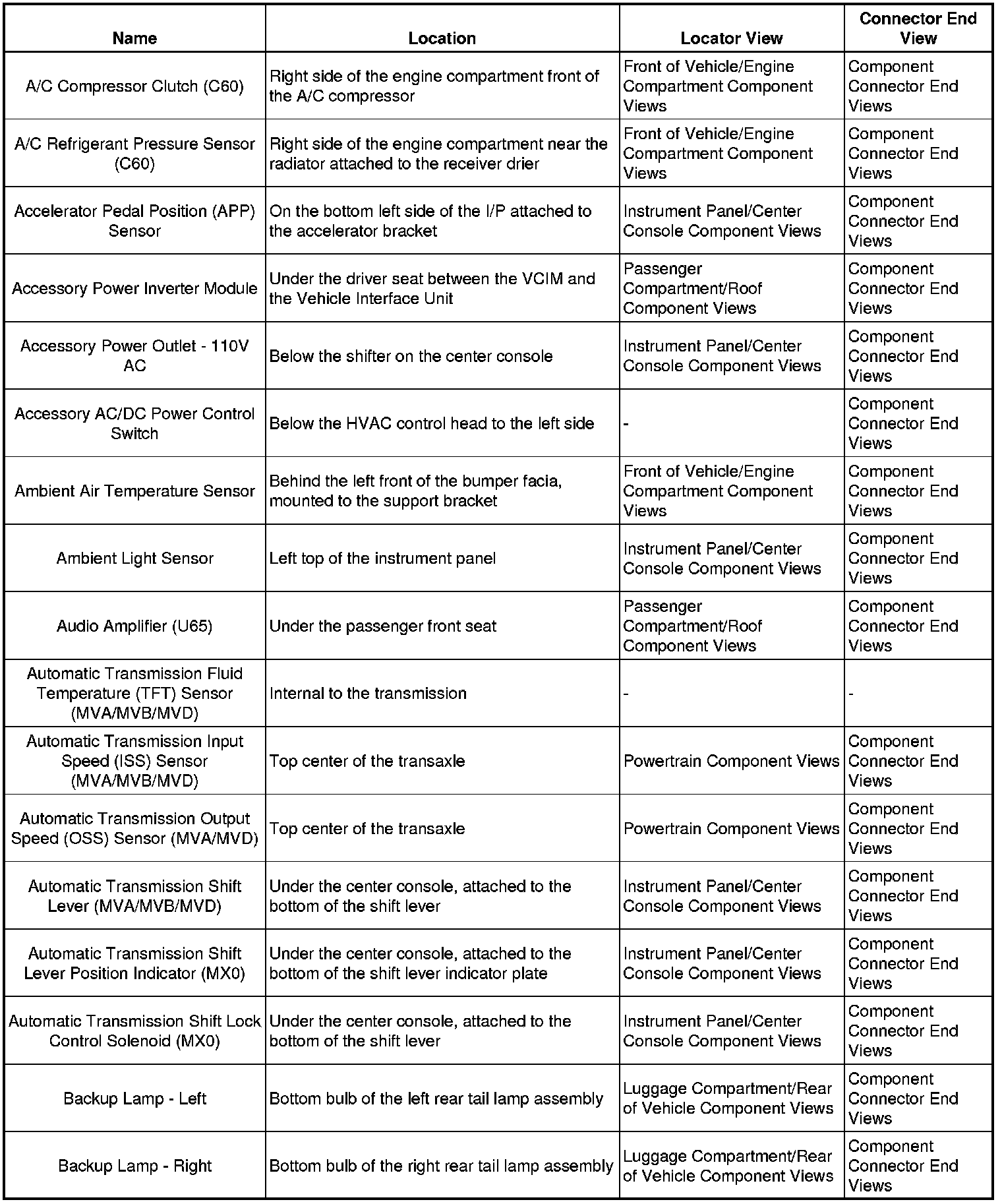

A/C - Ba:
Ba - Ci:

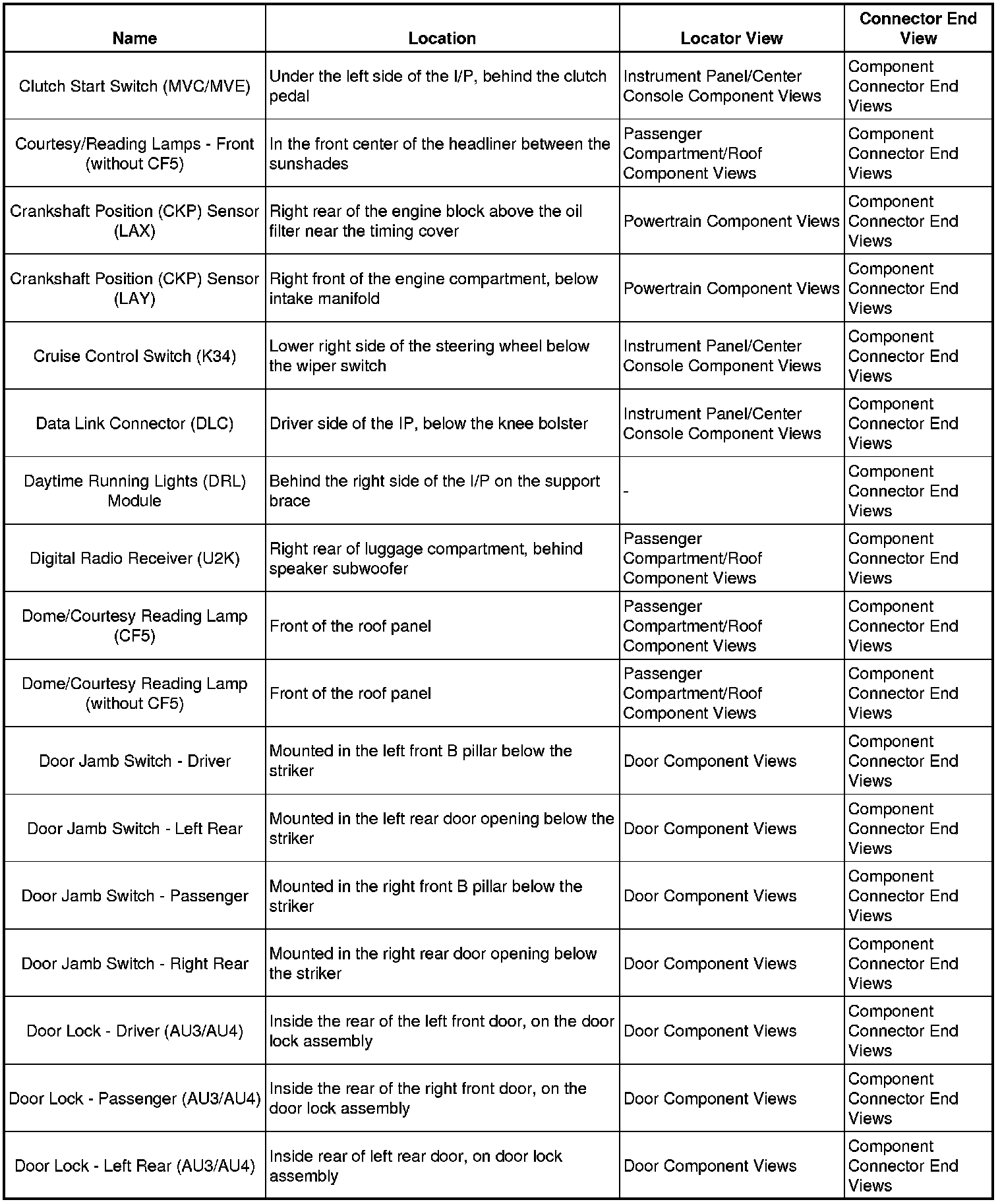

Cl - Do:

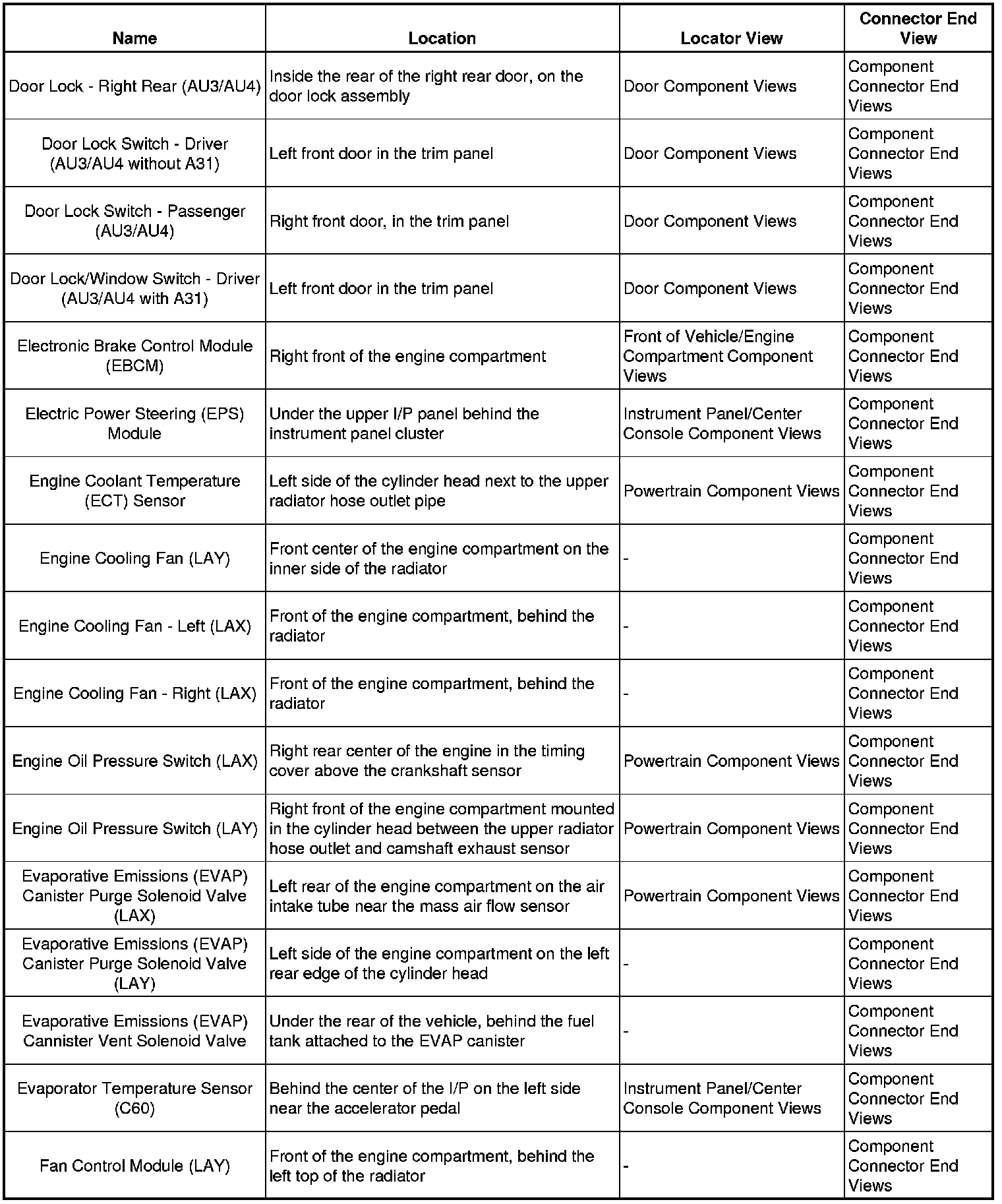

Do - Fa:

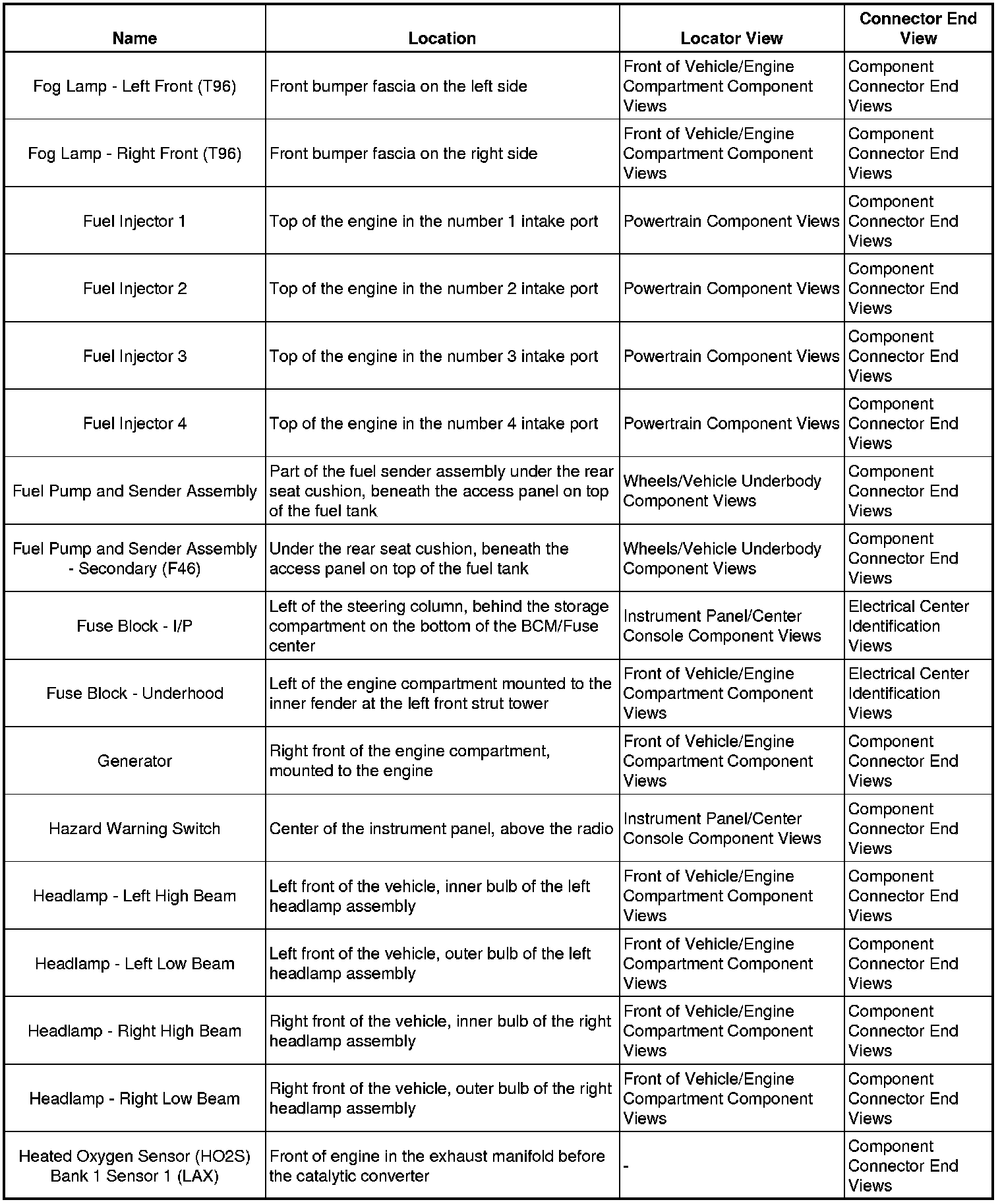

Fo - He:

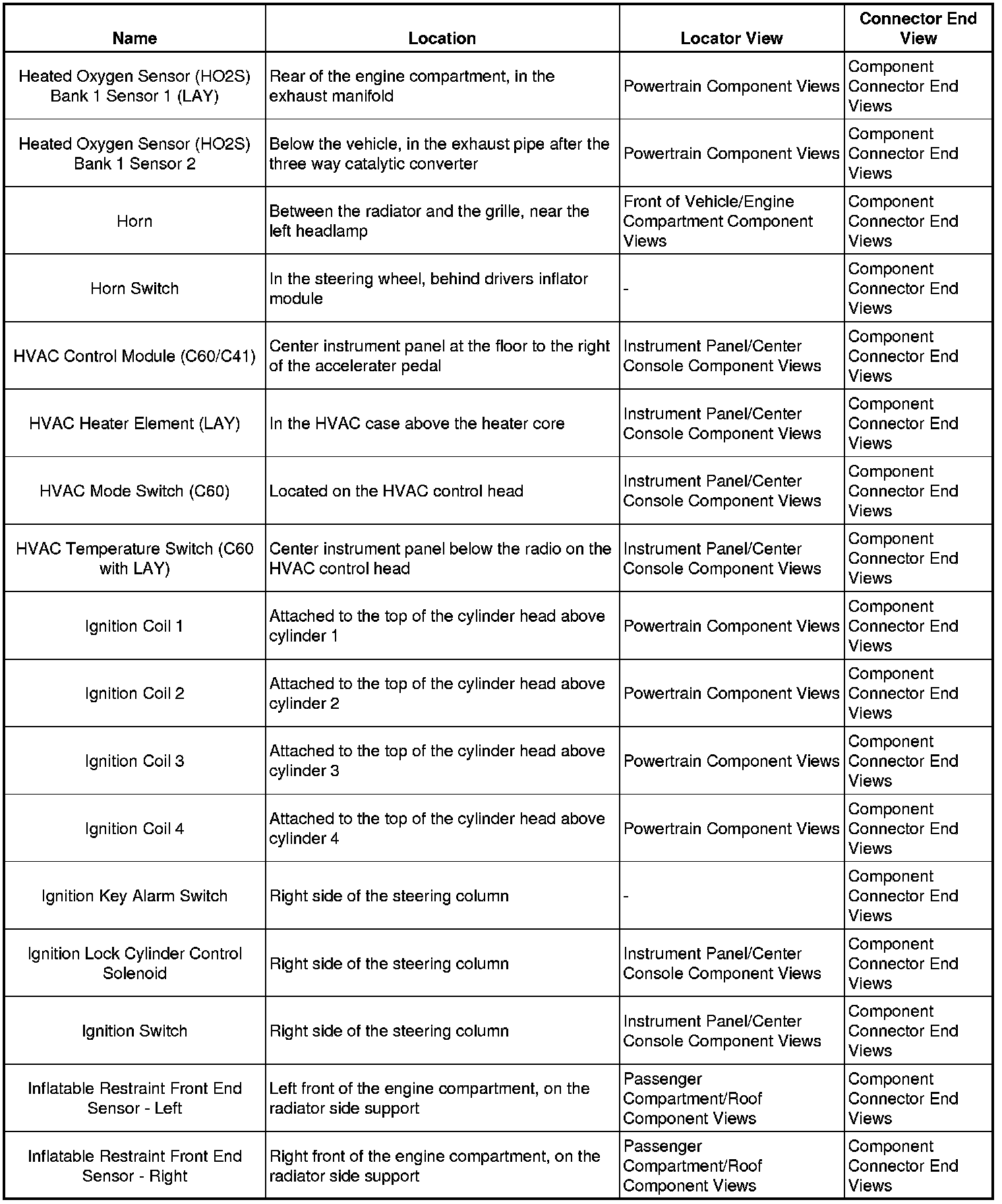

He - In:

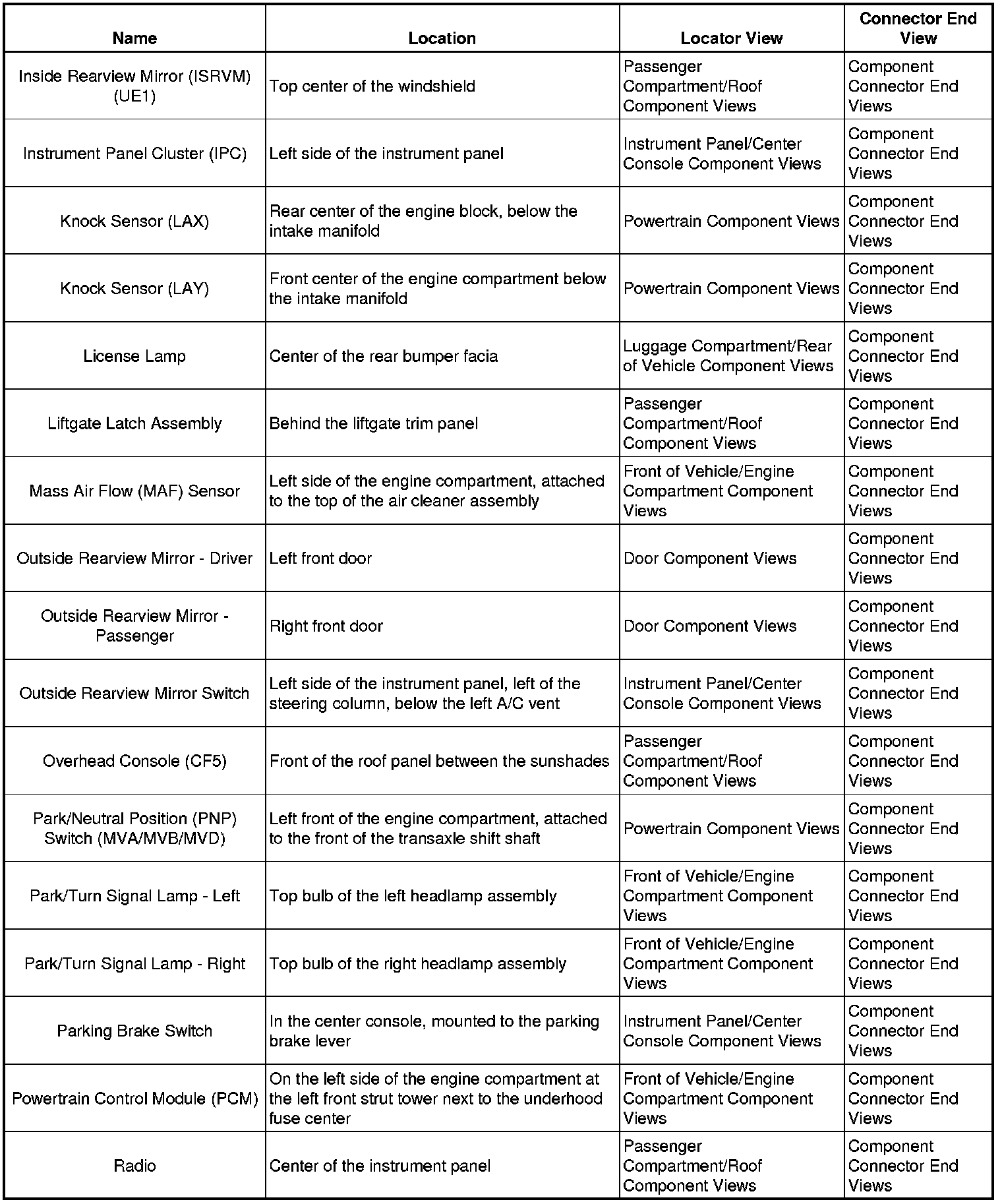

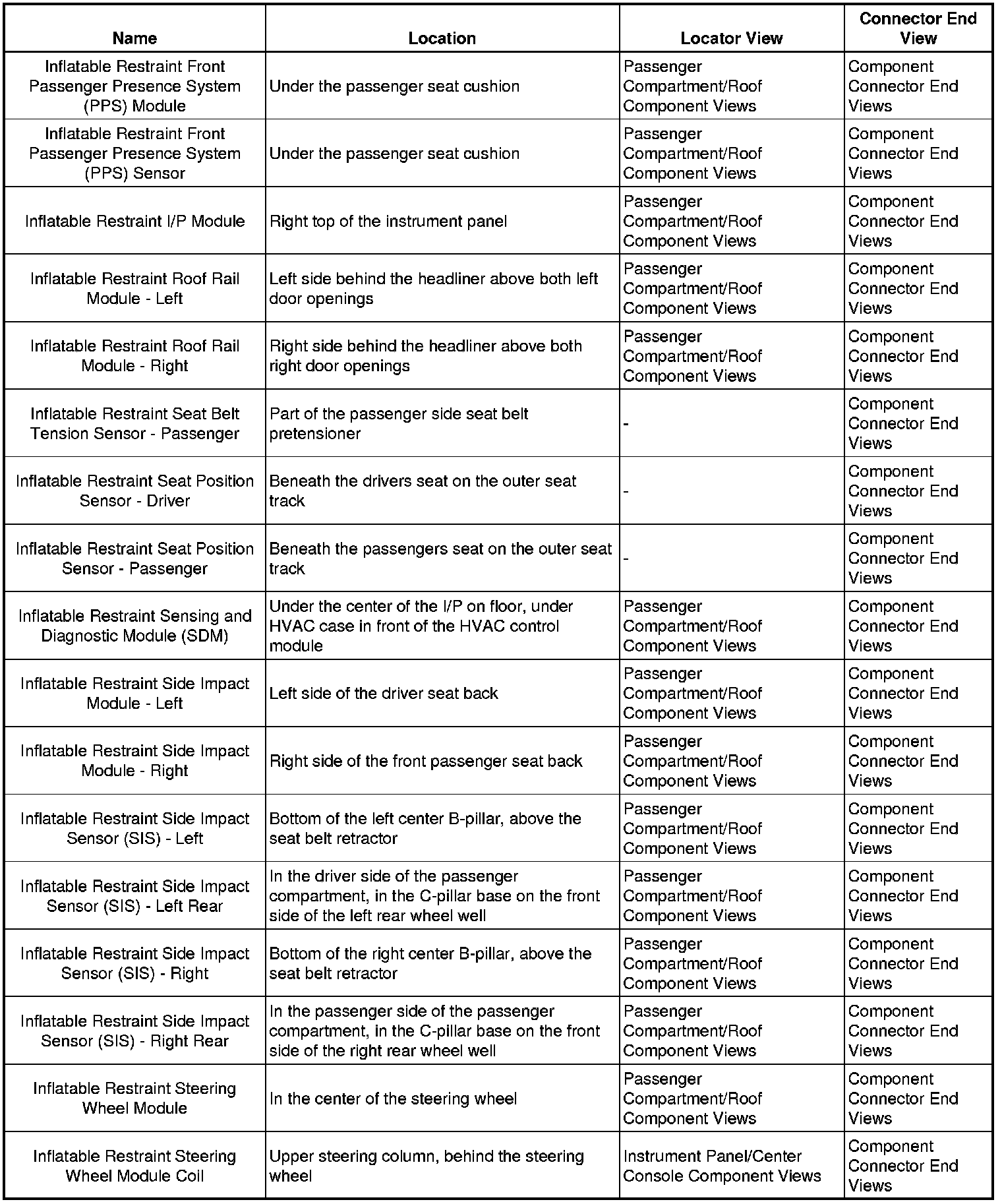

In - In:
In - Ra:

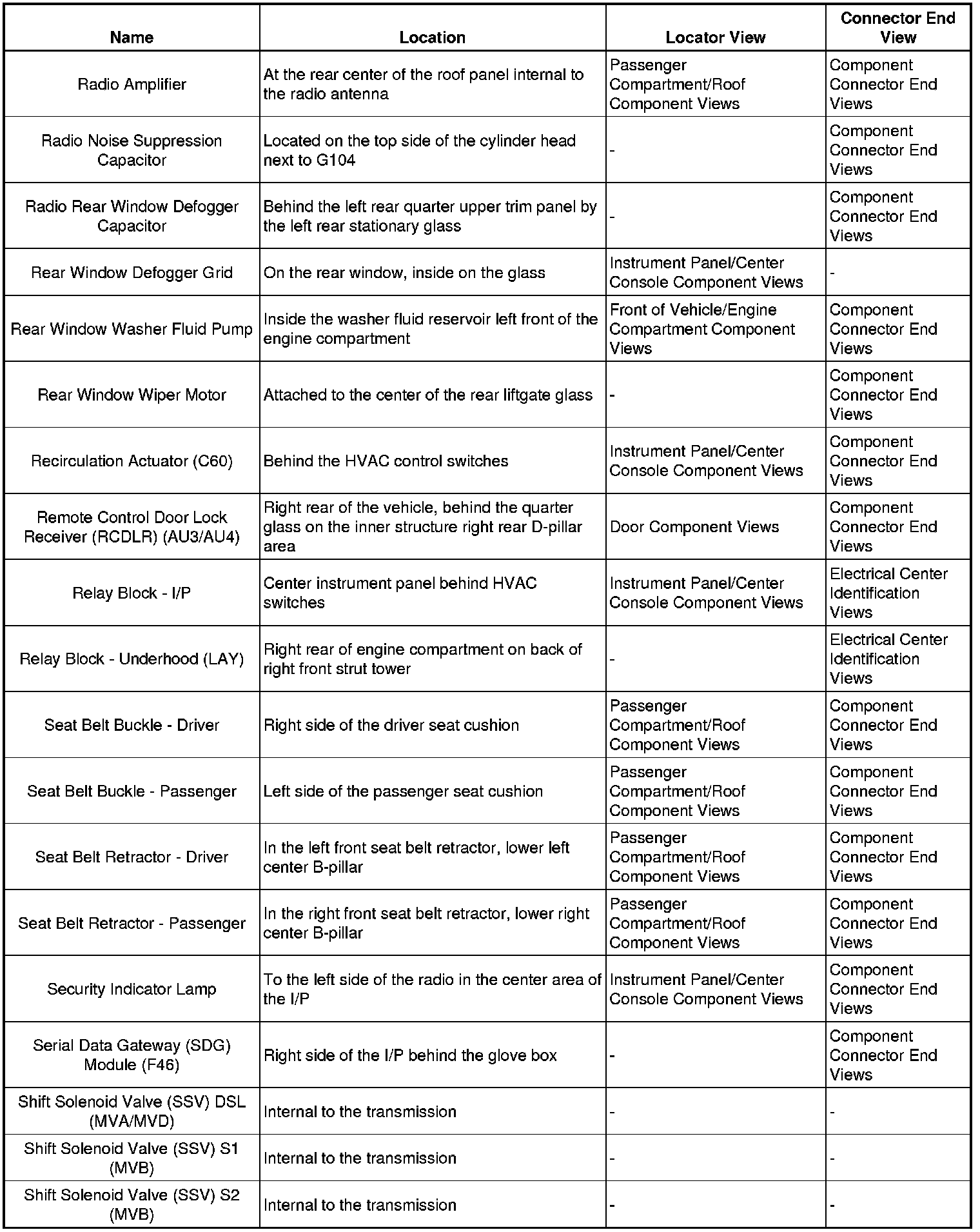

Ra - Sh:

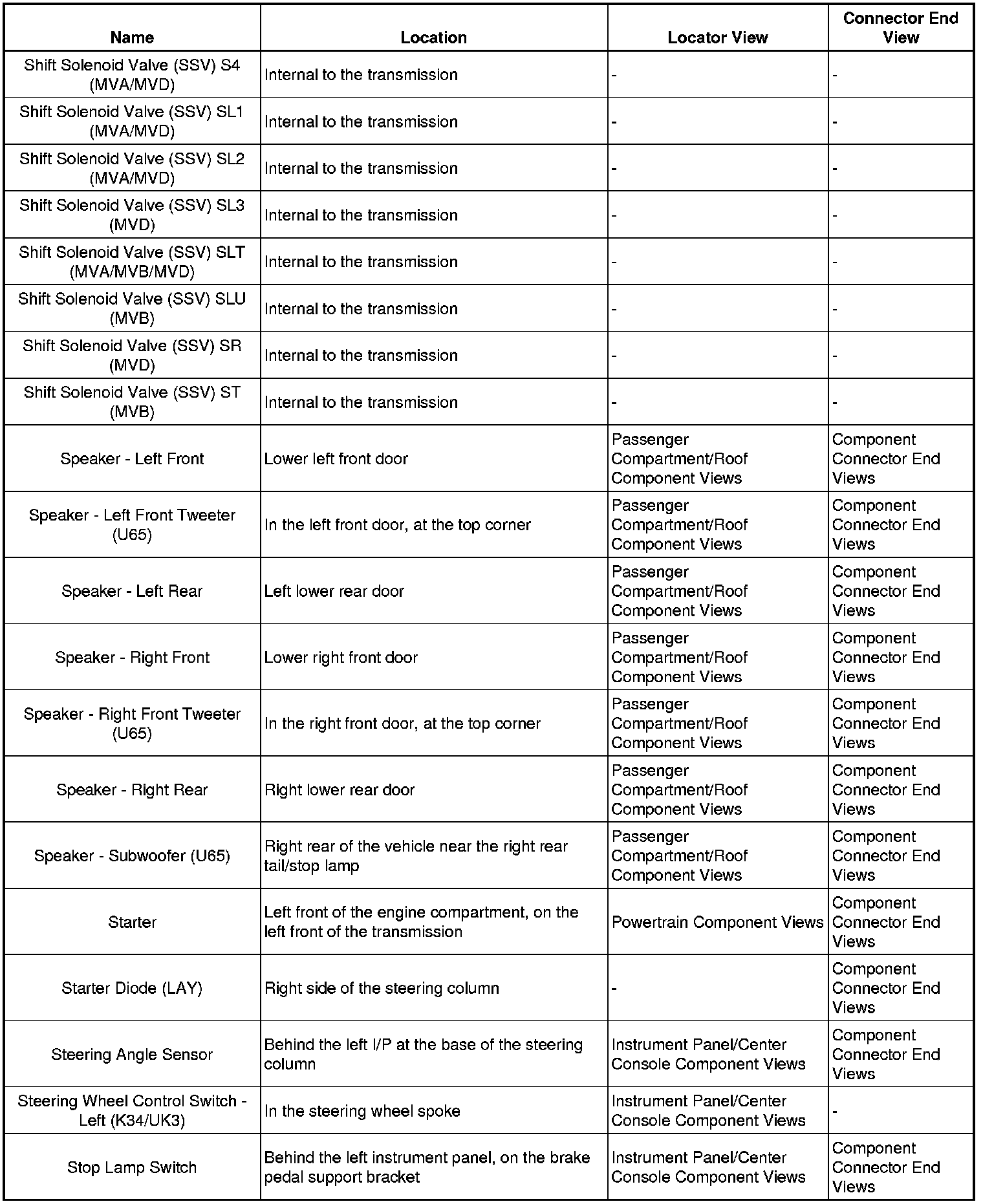

Sh - St:

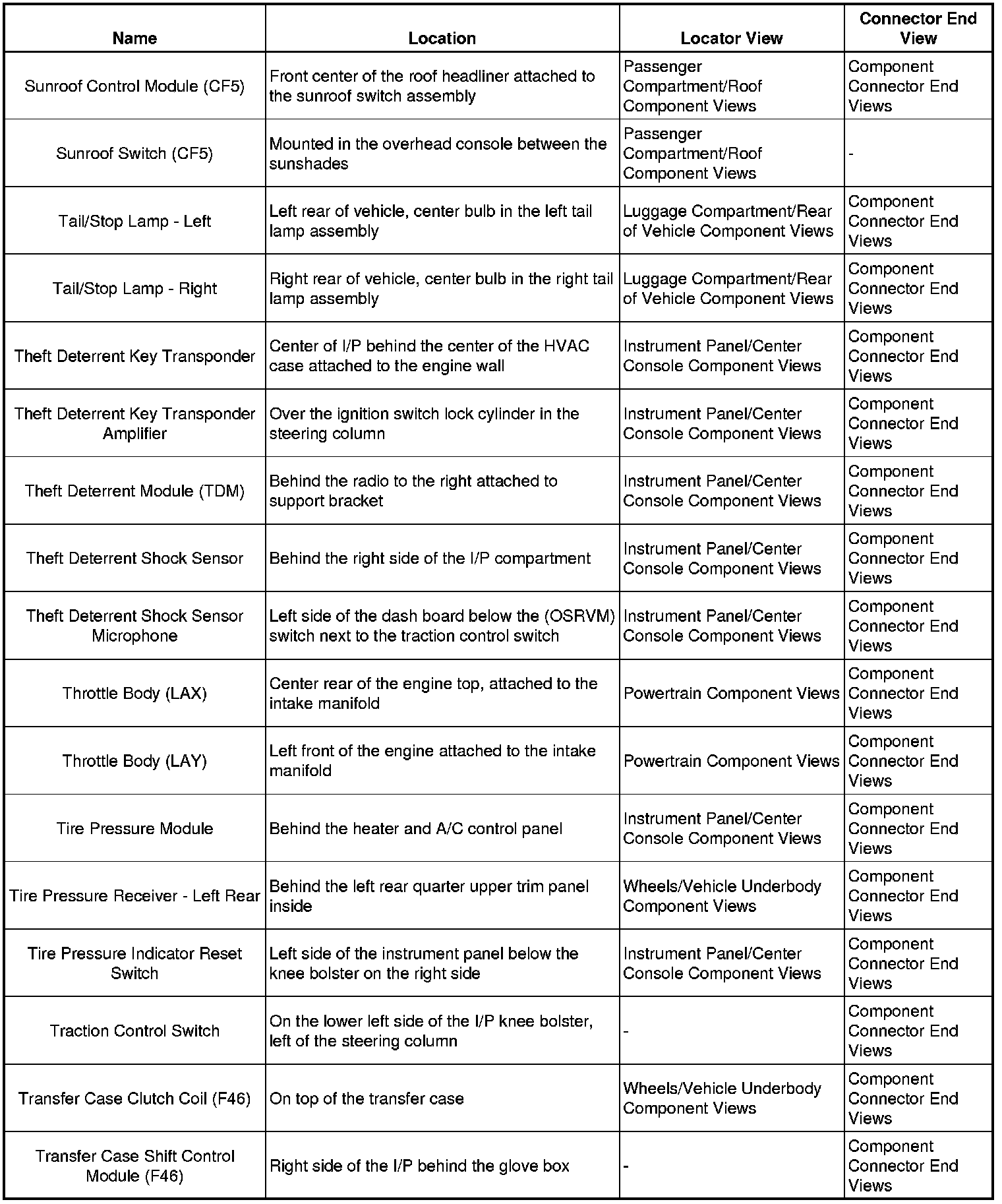

Su - Tr:

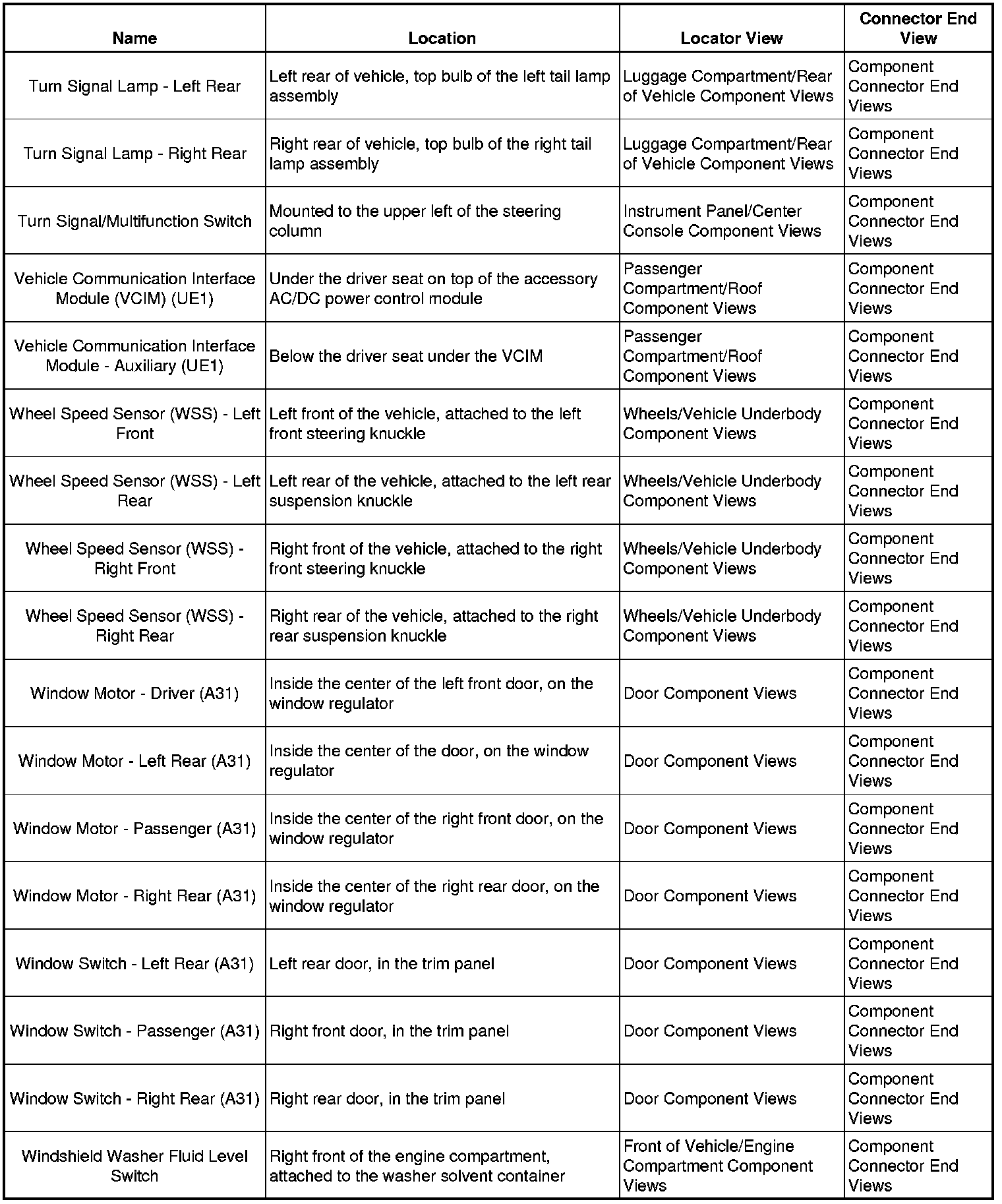

Tu - Wi:

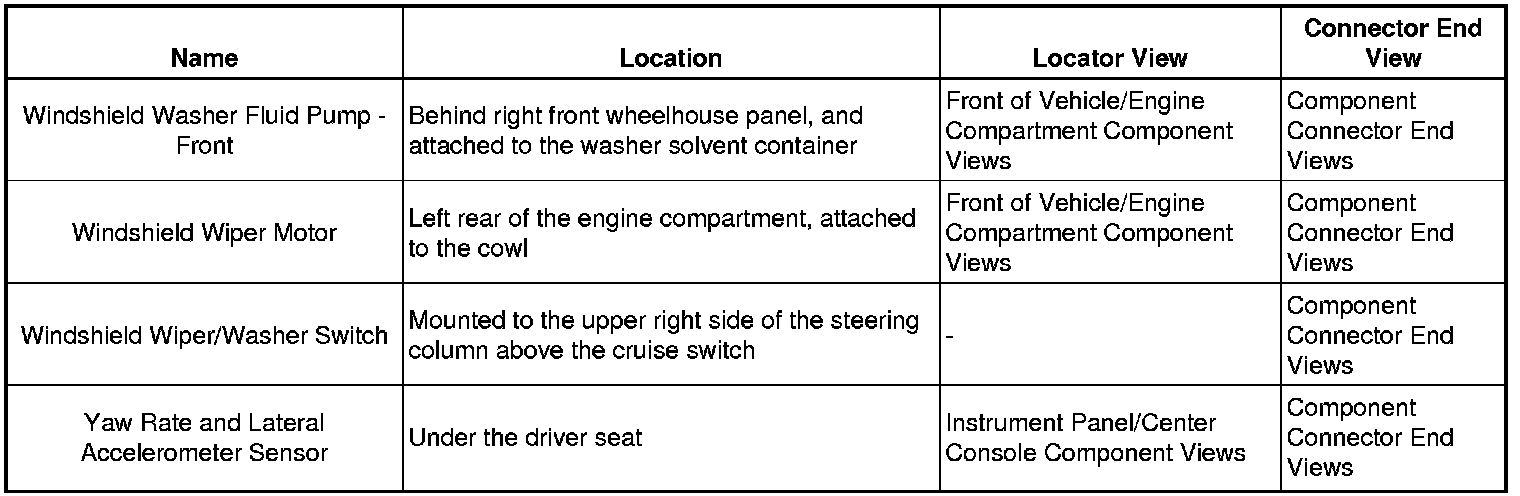

Wi - Ya:
