Connector Views




Component Connector End Views

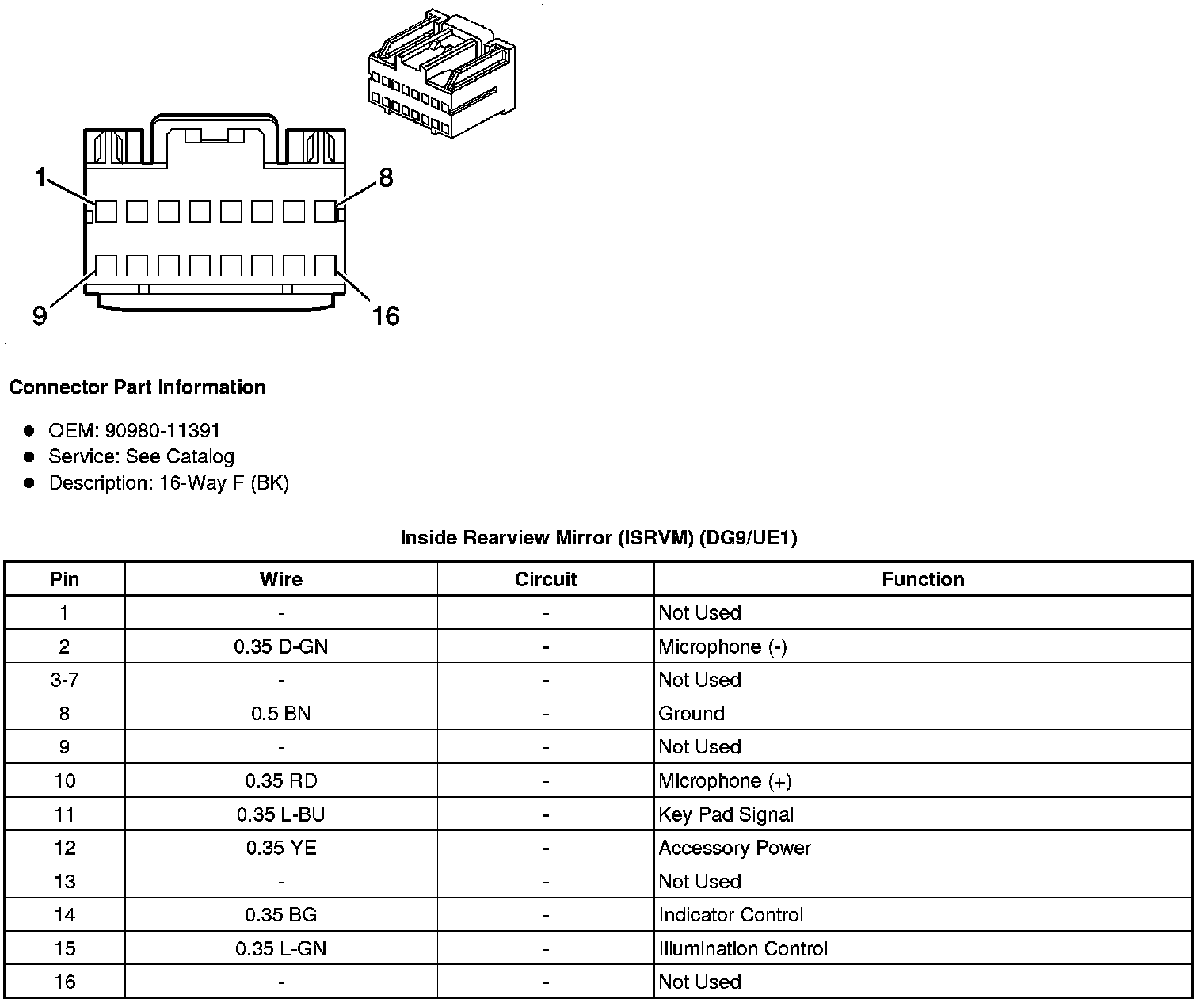

Inside Rearview Mirror (ISRVM) (DG9/UE1)






Outside Rearview Mirror (OSRVM) - Driver

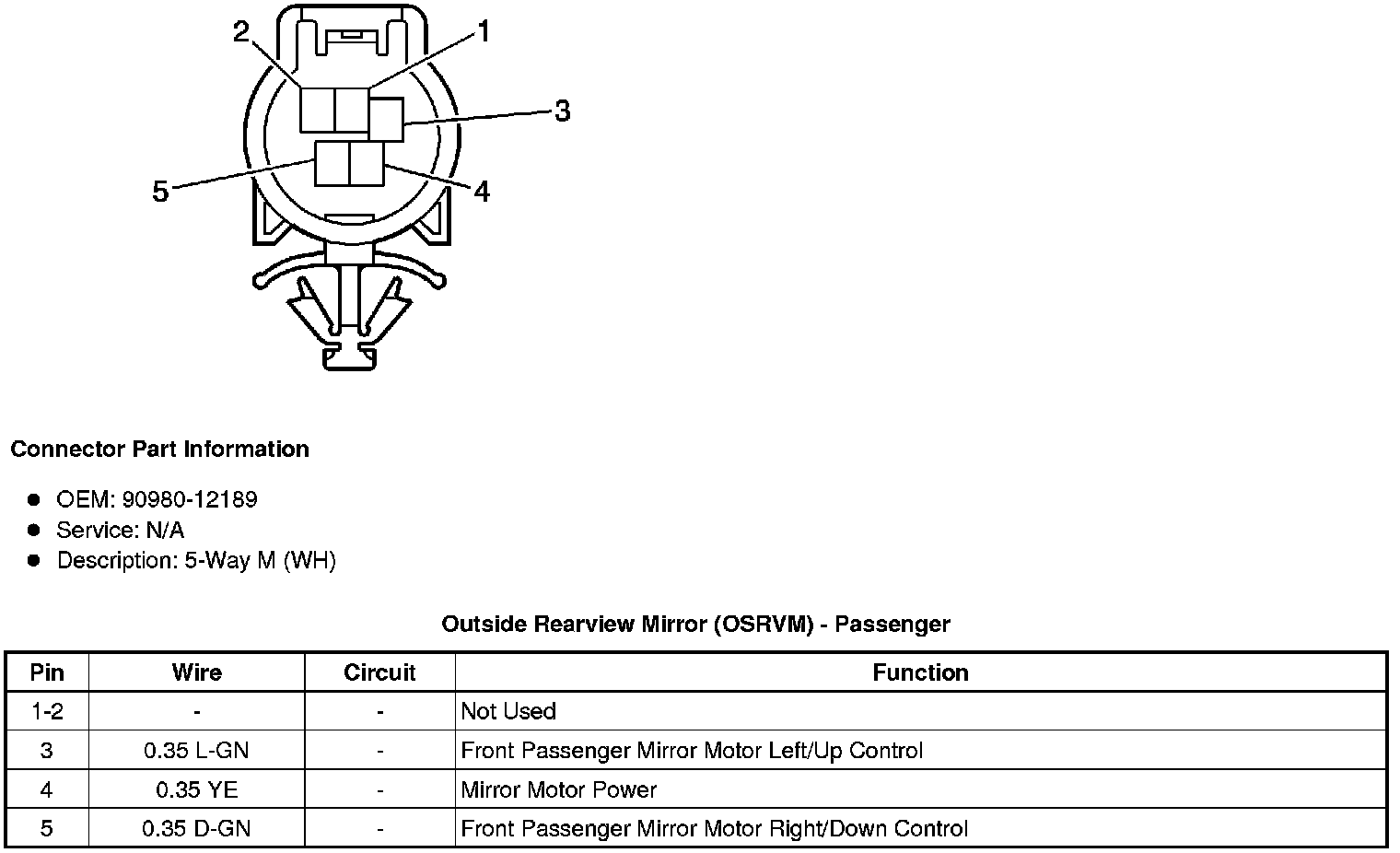

Outside Rearview Mirror (OSRVM) - Passenger

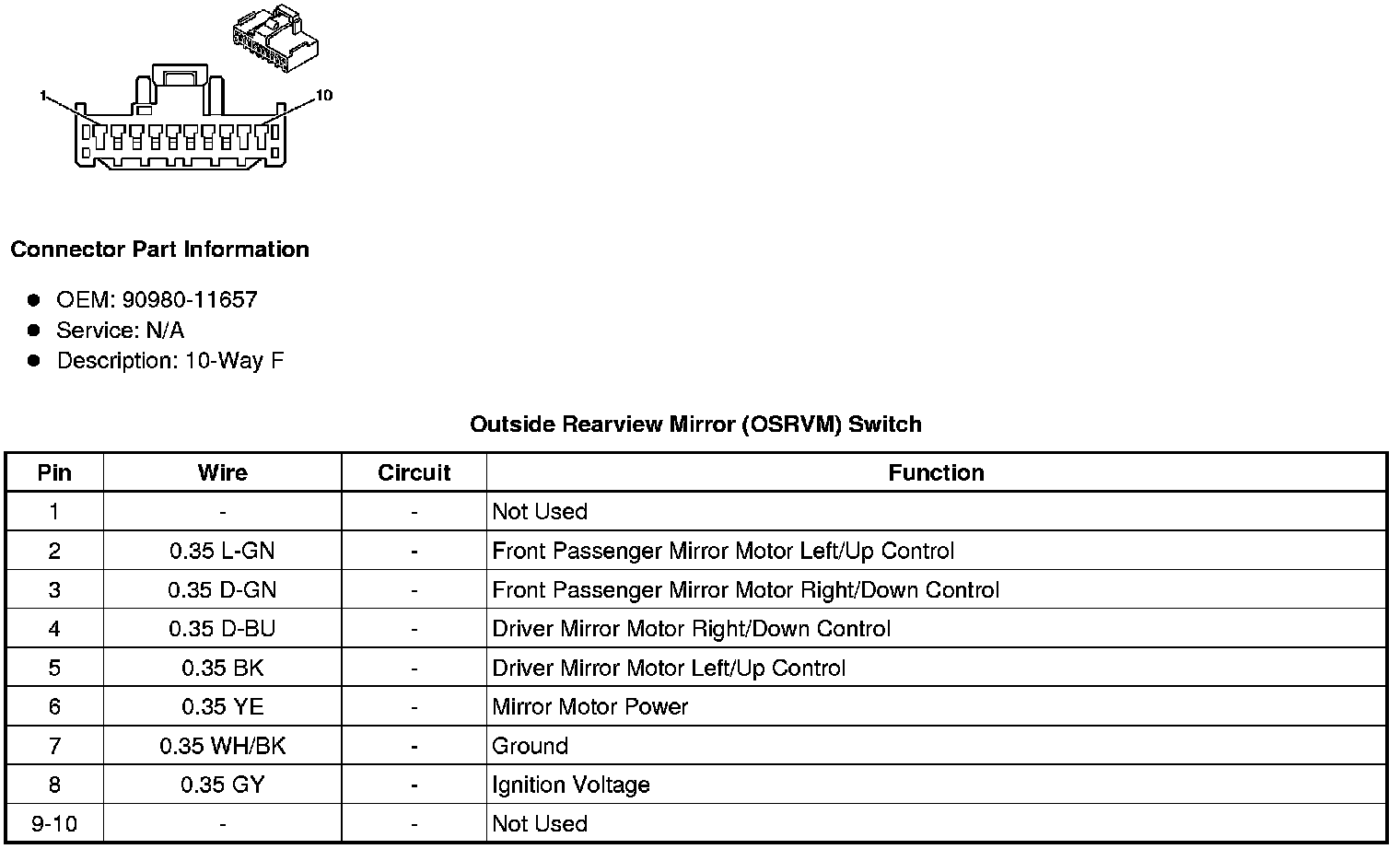

Outside Rearview Mirror (OSRVM) Switch
