Center Pillar Lower Trim Panel Replacement

Center Pillar Lower Trim Panel Replacement

Removal Procedure




1. Remove the front and rear side door sill trim plate. Refer to Door Sill Plate Replacement (Front Sill) (Service and Repair)Door Sill Plate Replacement (Rear Sill) (Service and Repair).

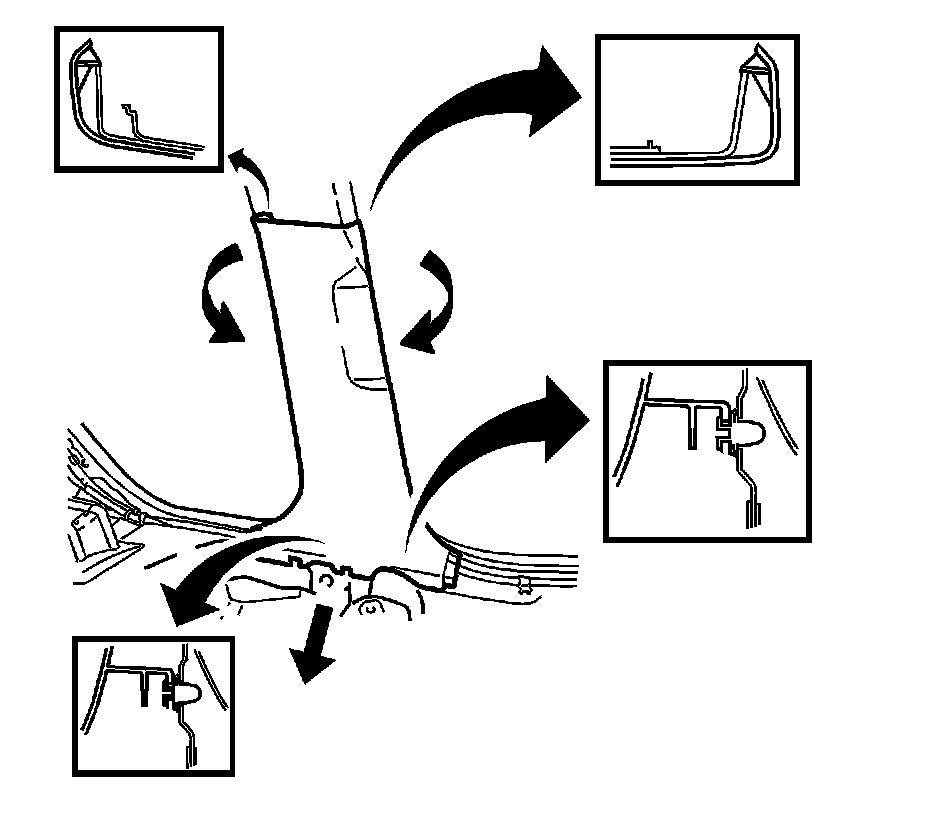

2. Disengage the two clips and two retainers and remove the center pillar lower trim panel.

Installation Procedure

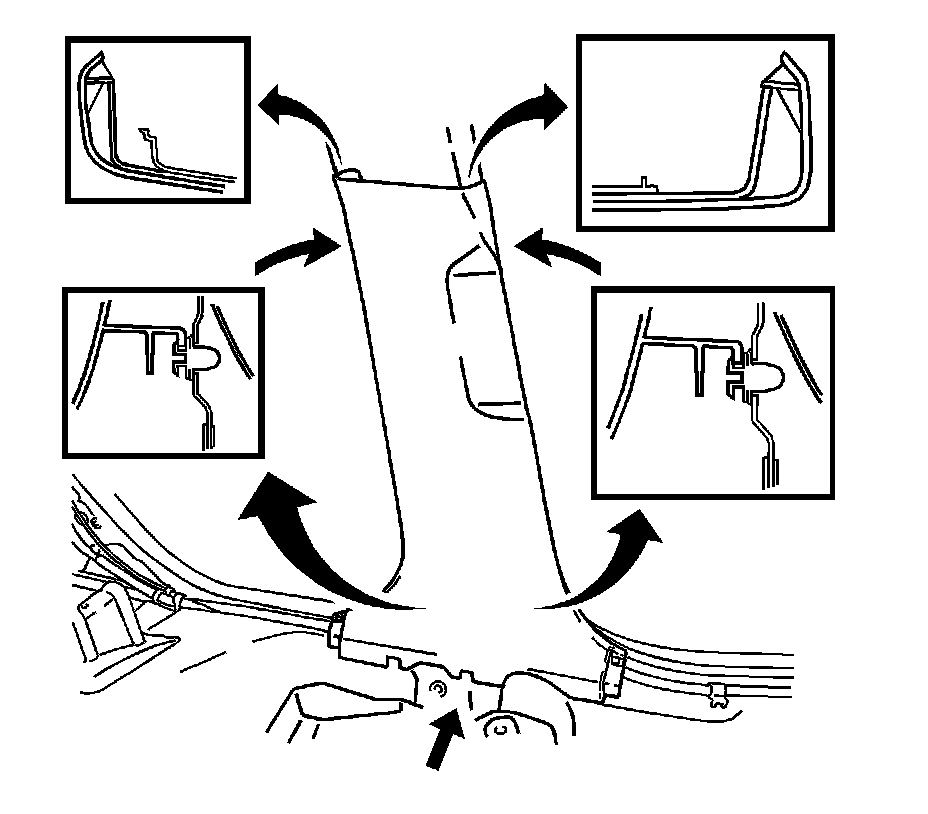

1. Engage the two clips and two retainers and install the center pillar lower trim panel.
2. Install the front and rear side door sill trim plate to the vehicle. Refer to Door Sill Plate Replacement (Front Sill) (Service and Repair)Door Sill Plate Replacement (Rear Sill) (Service and Repair).
