Body Hinge Pillar Trim Panel Replacement

Body Hinge Pillar Trim Panel Replacement

Removal Procedure

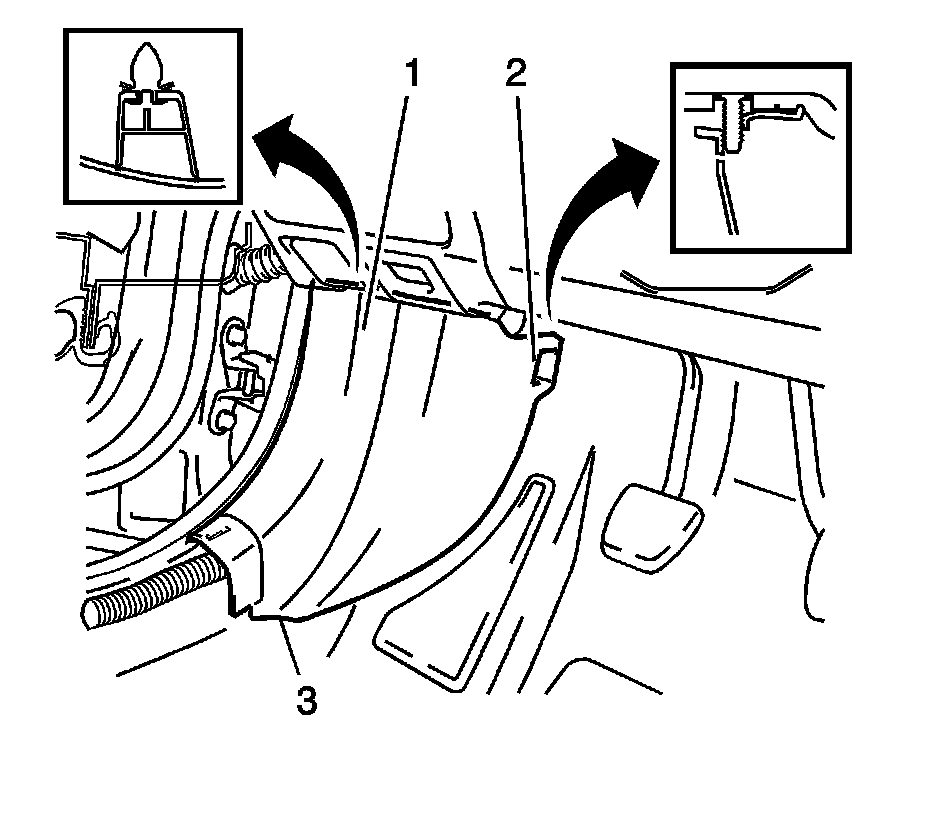

Remove the following components from the vehicle:

* The front sill plate trim. Refer to Door Sill Plate Replacement (Front Sill) (Service and Repair)Door Sill Plate Replacement (Rear Sill) (Service and Repair).
* The plastic retainer (1)
* The clip (2)
* The body hinge pillar trim panel (3)

Installation Procedure




1. Install the body hinge pillar trim panel (3) to the vehicle. Secure the trim panel with the plastic retainer (1) and clip (2).
2. Install the front sill plate trim. Refer to Door Sill Plate Replacement (Front Sill) (Service and Repair)Door Sill Plate Replacement (Rear Sill) (Service and Repair).
