Alarm System Transponder: Diagrams




Component Connector End Views

Theft Deterrent Key Transponder

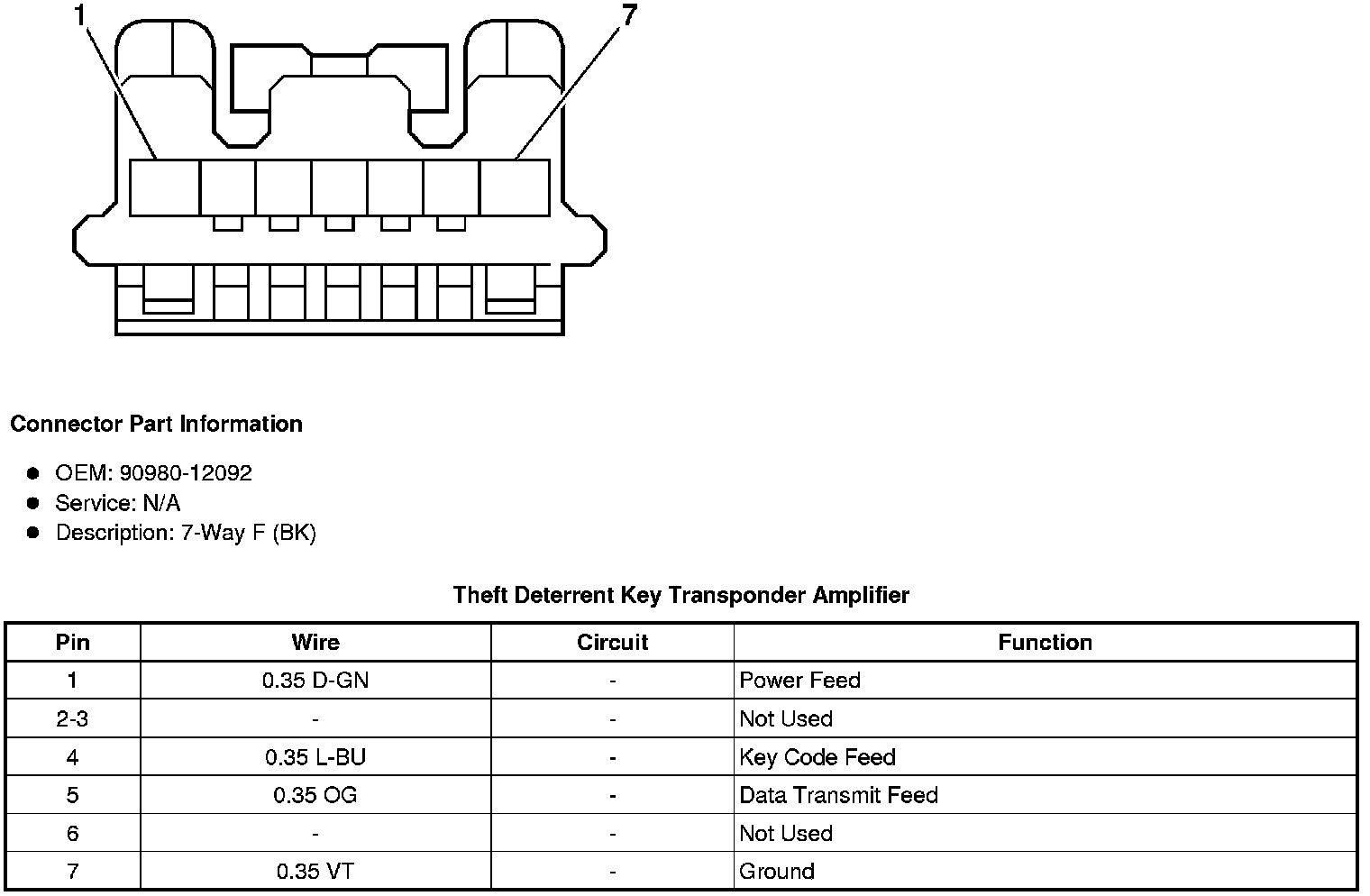

Theft Deterrent Key Transponder Amplifier
