Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection

Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection

Removal Procedure

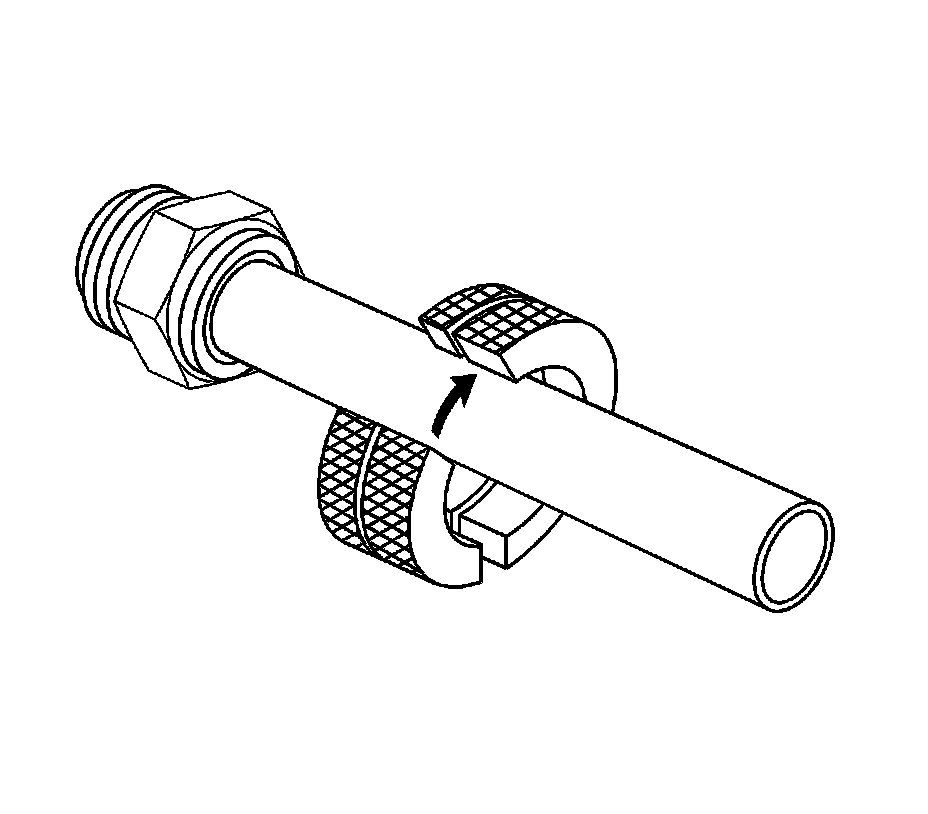

1. Install the J 41623-B onto the transmission oil cooler (TOC) pipe.

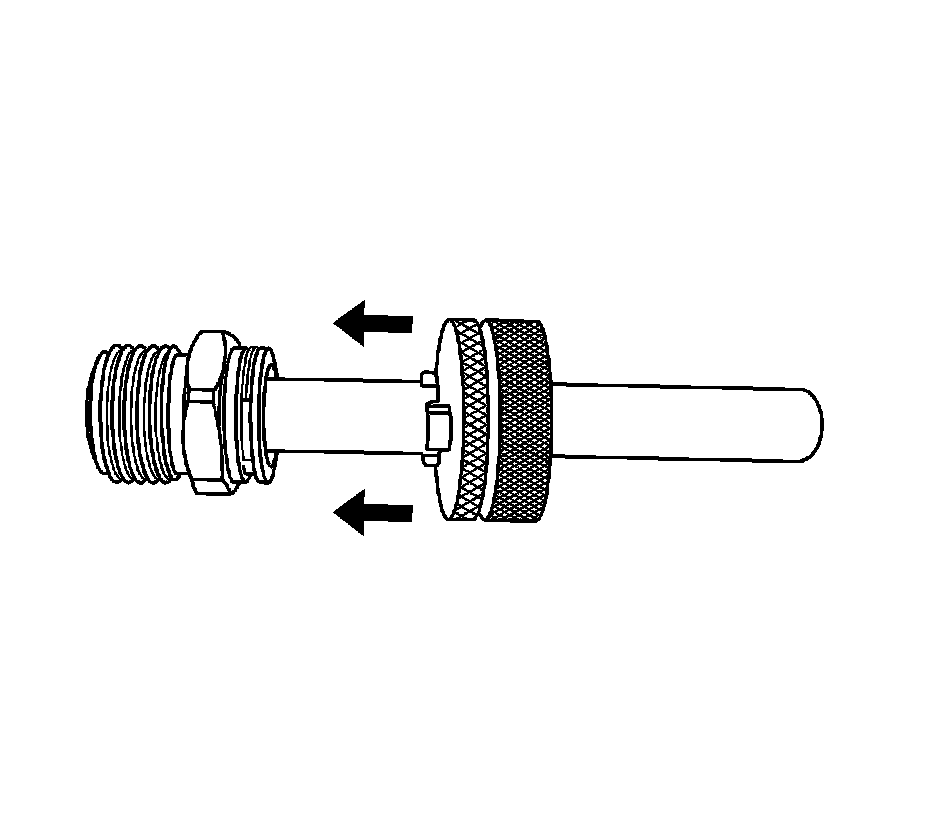

2. Slide the J 41623-B toward the TOC pipe fitting.





Important: Rotate the J 41623-B to engage the TOC pipe fitting's retainer slots.


The J 41623-B should be nearly flush with the fitting.

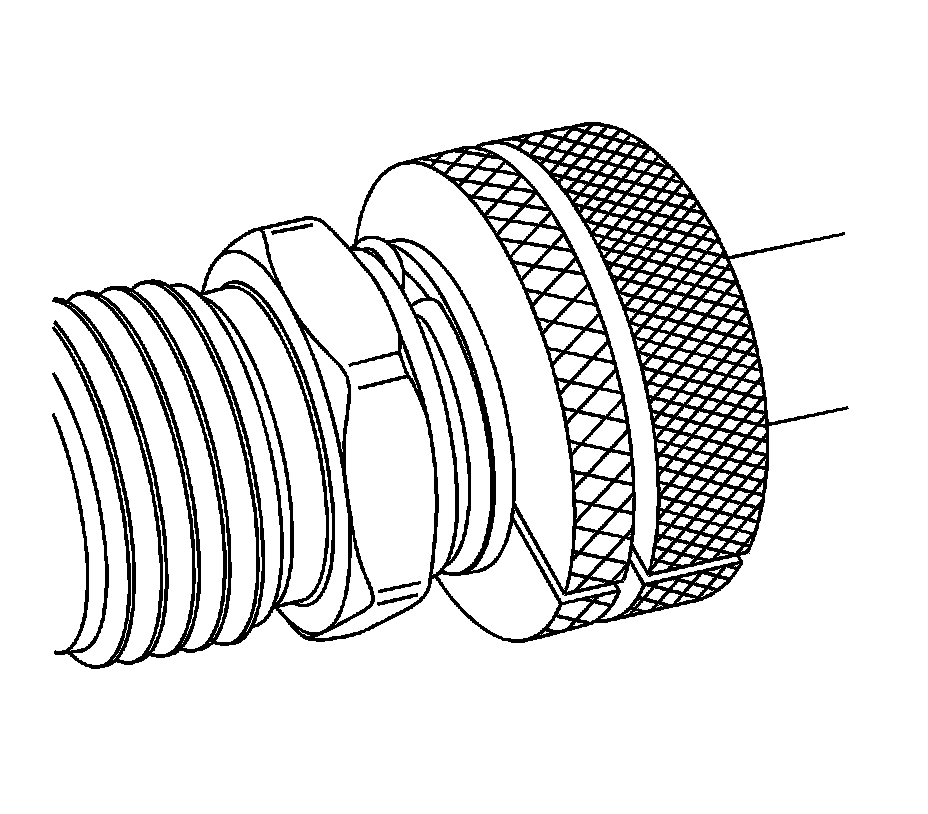

3. Connect the J 41623-B onto the TOC pipe fitting.

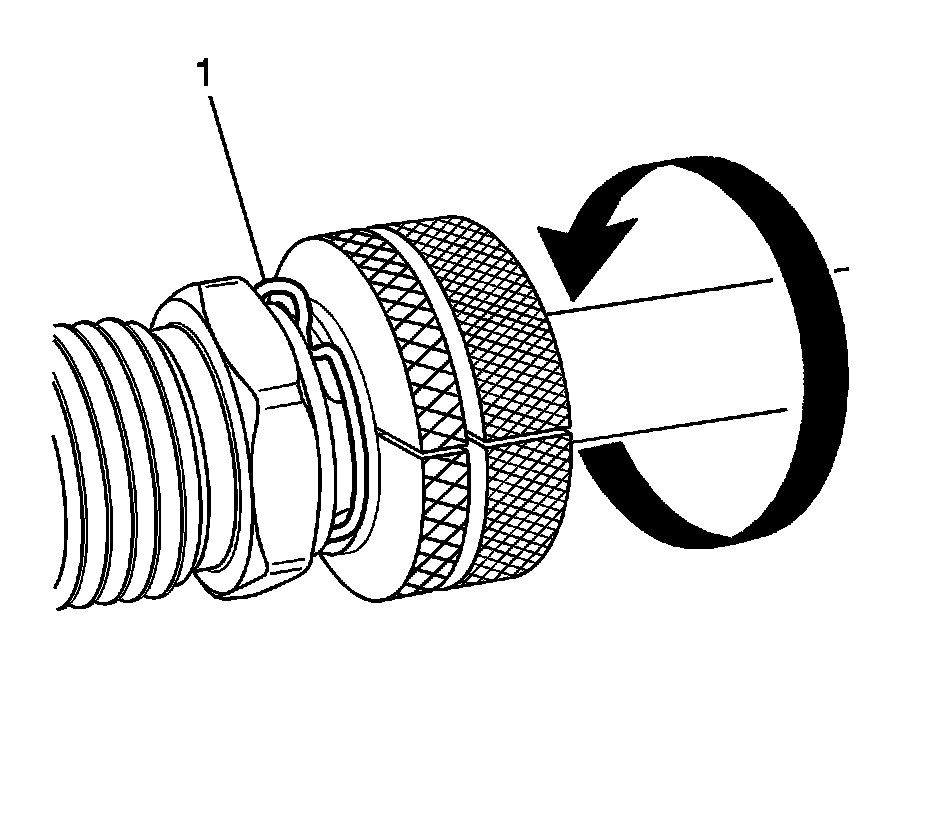

4. Rotate the J 41623-B until the retainer clip (1) rises above the fitting retainer seat.

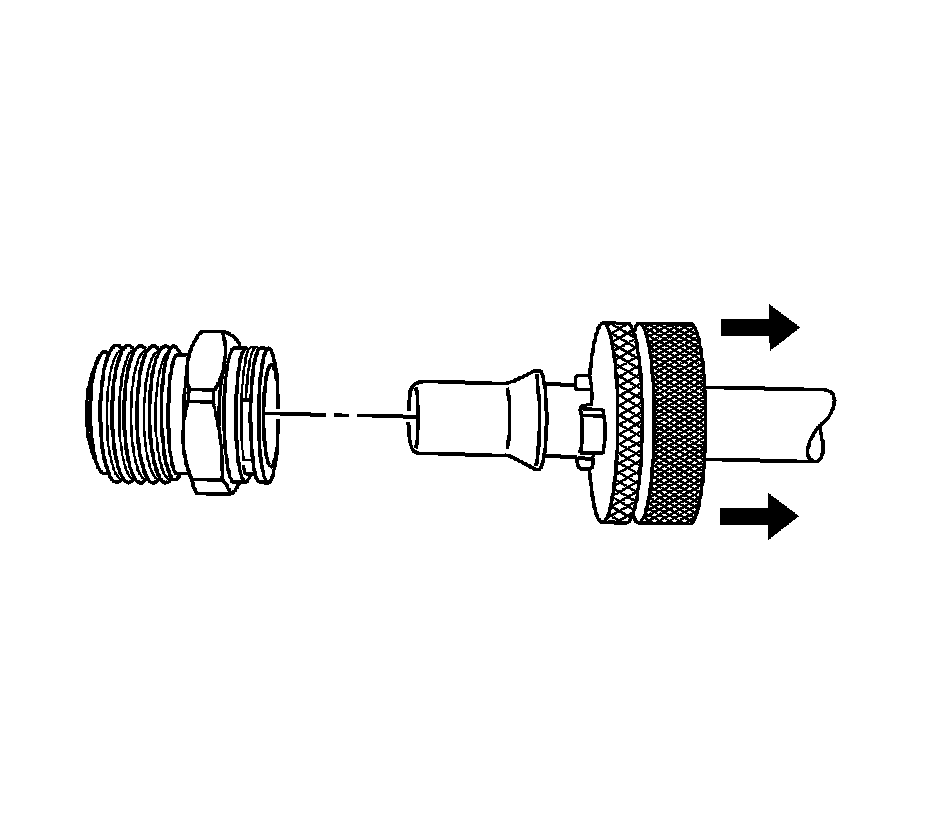

5. Pull back on the TOC pipe to disengage the pipe from the TOC pipe fitting.
6. Remove the J 41623-B from the TOC pipe.

Installation Procedure





Important: Inspect the TOC pipe fitting and retaining clip for signs of wear or damage. Replace the components if necessary.

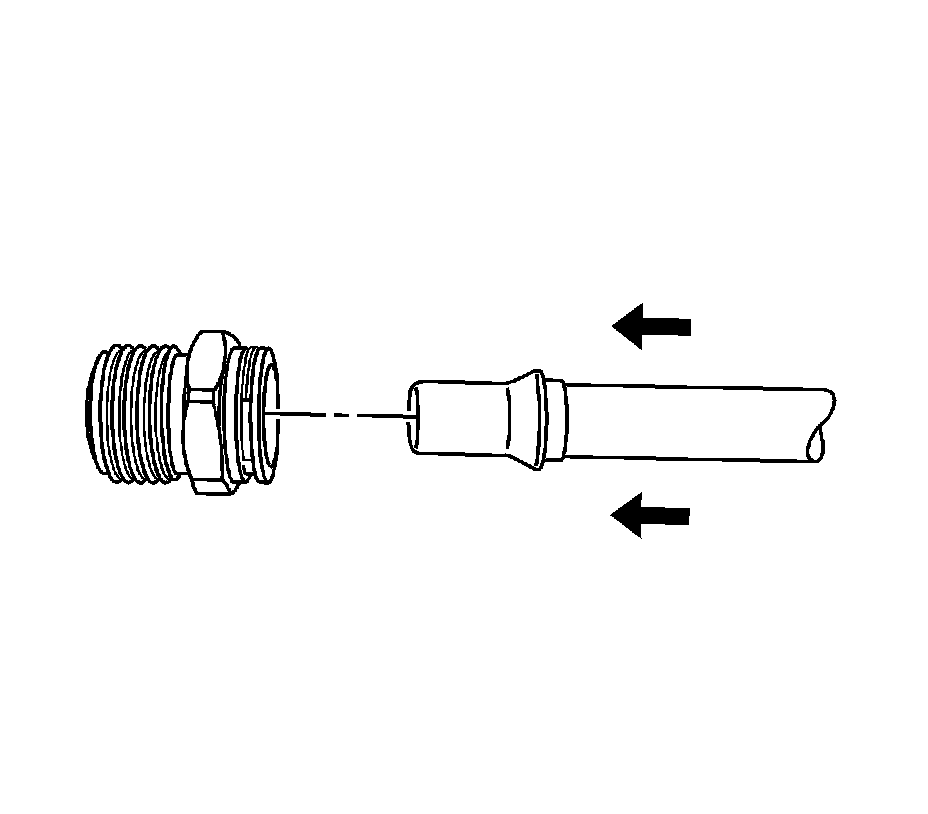

1. Install the TOC pipe into the TOC pipe fitting.
A distinct snap should be heard or felt when assembling the TOC pipe to the fitting.
2. To ensure the cooler line is properly installed, give the cooler pipe a gentle pull.
