Torque Converter Seal Removal

Torque Converter Seal Removal

Special Tools

J 45000 - Seal Remover

For equivalent regional tools, refer to Special Tools (Tools and Equipment).

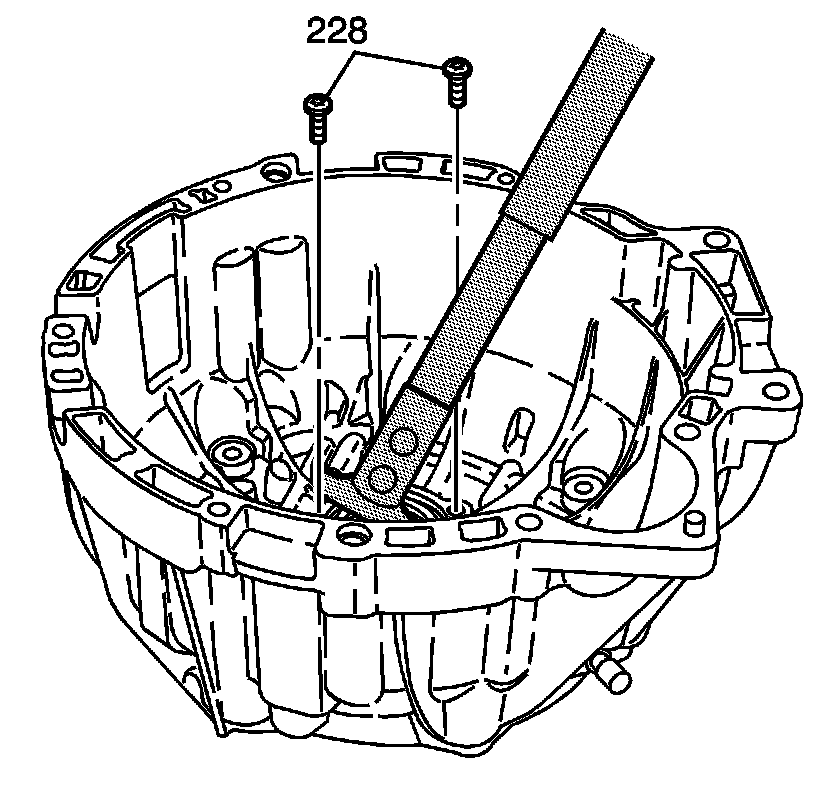

1. Remove the two bolts (228).
2. Remove the torque converter seal using J 45000 - seal remover.
