Intermediate and Overdrive and Reverse Clutch Hub Disassemble




Intermediate and Overdrive and Reverse Clutch Hub Disassemble

Special Tools
* J 23327 - Clutch Spring Compressor
* J 44764 - Clutch Spring Compressor

For equivalent regional tools, refer to Special Tools (Tools and Equipment).




1. Remove the overdrive clutch retainer (480) from the overdrive clutch housing (493).
2. Remove the overdrive clutch backing plate (481) from the overdrive clutch housing (493).
3. Remove the overdrive clutch plates (482, 483). Refer to Clutch Plate Selection Specifications (Clutch Plate Selection Specifications).
4. Remove the overdirve clutch spacer (484) from the overdrive clutch housing (493).




5. Use J 44764 - spring compressor and J 23327 - spring compressor to comress the overdrive clutch piston spring (486).
6. Remove the overdrive clutch piston spring retainer ring (485) from the overdrive clutch housing (493).
7. Remove J 44764 - spring compressor and J 23327 - spring compressor from the overdrive clutch housing (493).
8. Remove the overdrive clutch spring (486) from the overdrive clutch housing (493).

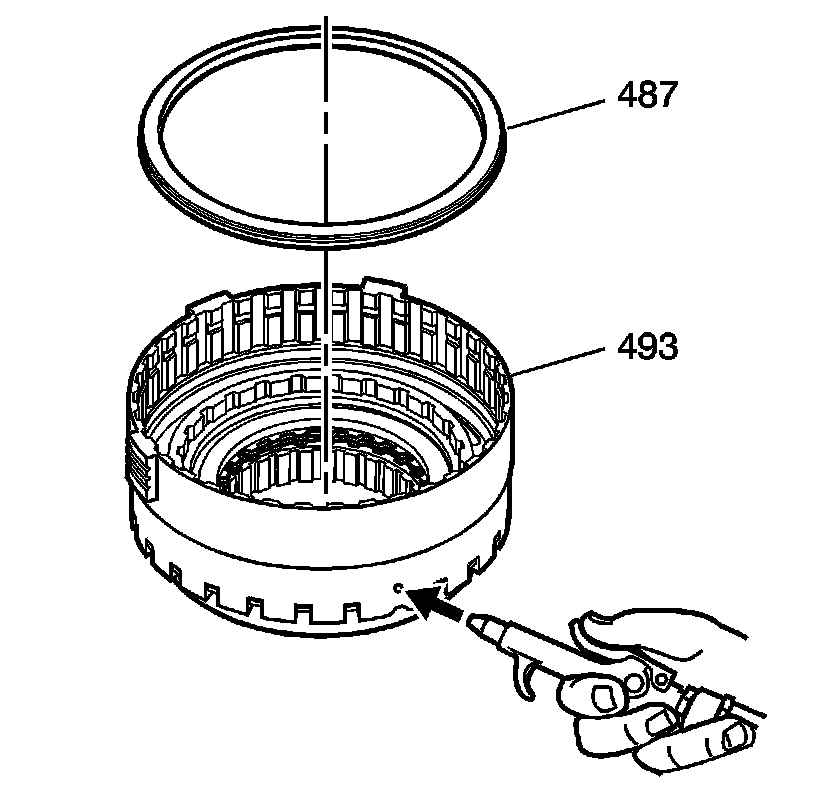

Note: It may be necessary to use air pressure to remove the piston.

9. Remove the overdrive clutch piston (487) from the overdrive clutch housing (493).




10. Remove the intermediate clutch backing plate retainer ring (488) from the overdrive clutch housing (493).
11. Remove the intermediate clutch backing plate (489) from the overdrive clutch housing (493).
12. Remove the intermediate clutch plates (490, 491) from the overdrive clutch housing (493). Refer to Clutch Plate Selection Specifications (Clutch Plate Selection Specifications).
13. Remove the intermediate clutch apply plate (492) from the overdrive clutch housing (493).




14. Use J 44764 - spring compressor and J 23327 - spring compressor to compress the intermediate clutch housing (496).
15. Remove the intermediate clutch housing retainer ring (497) from the overdrive clutch housing (493).




16. Remove J 44764 - spring compressor and J 23327 - spring compressor from the overdrive clutch housing (493).
17. Remove the intermediate clutch housing (496), and the intermediate clutch spring (494) from the overdrive clutch housing (493).




18. Remove the intermediate clutch piston (495) from the overdrive clutch housing (496).
