Input Speed Sensor Installation

Input Speed Sensor Installation




1. Rotate the transmission 90 degrees.

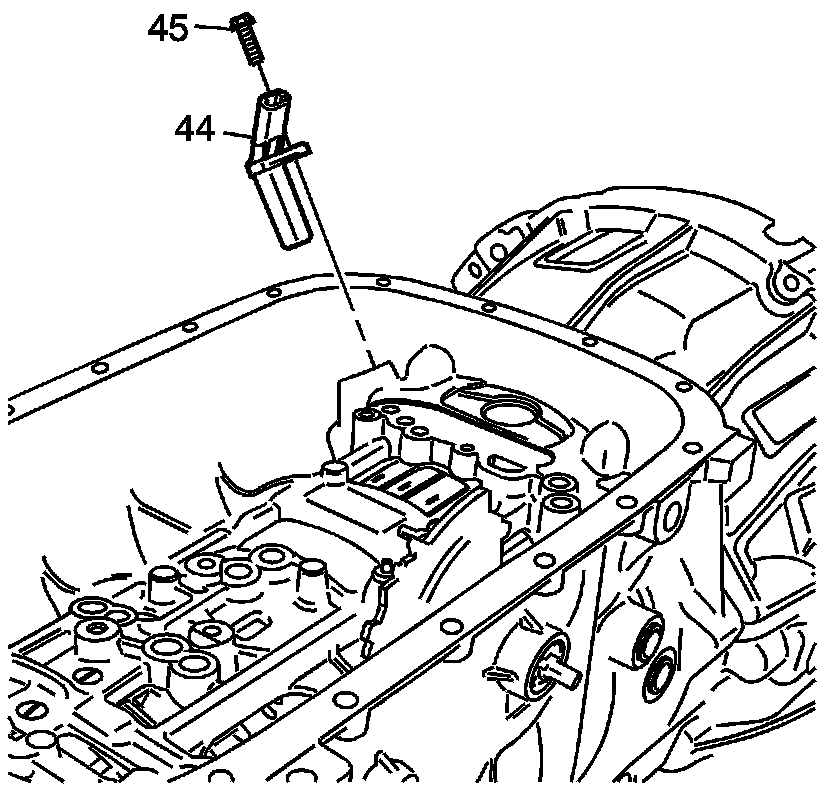

2. Install the input speed sensor (44) into the case.

Caution: Refer to Fastener Caution (Fastener Caution).

3. Install the input speed sensor bolt (45) into the case. Tighten the input speed sensor bolt (45) to 11 Nm ( 8 lb ft).
