Torque Converter Fluid Seal Replacement

Torque Converter Fluid Seal Replacement

Special Tools
* J 8092 Universal Driver Handle
* J 44766 Seal Installer
* J 45000 Seal Remover

Removal Procedure

1. Remove the transmission torque converter. Refer to Torque Converter Replacement (Service and Repair).




2. Remove and discard the torque converter seal bolts.

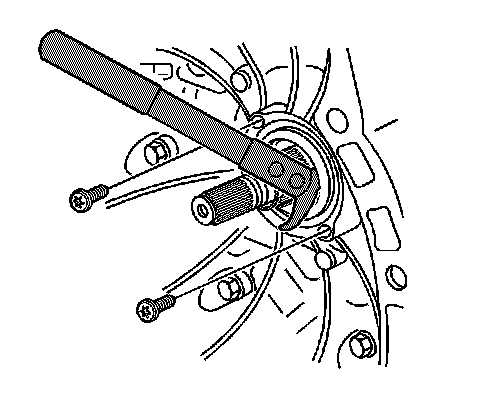

3. Remove the torque converter seal using J 45000 .

Installation Procedure

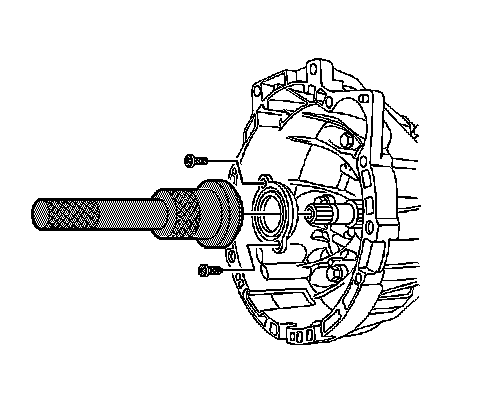

1. Assemble J 8092 onto J 44766 .
2. Install the torque converter seal onto the tool before installing into the case to prevent damage to the seal.

Note: Align the torque converter seal with the bolt holes.

3. Install the torque converter seal into the torque converter housing.

Caution: Refer to Fastener Caution (Fastener Caution).

4. Install the torque converter seal bolts and tighten to 3.6 Nm (32 lb in).
5. Install the transmission torque converter. Refer to Torque Converter Replacement (Service and Repair).
