Diagrams
>>
Connector Views
>>

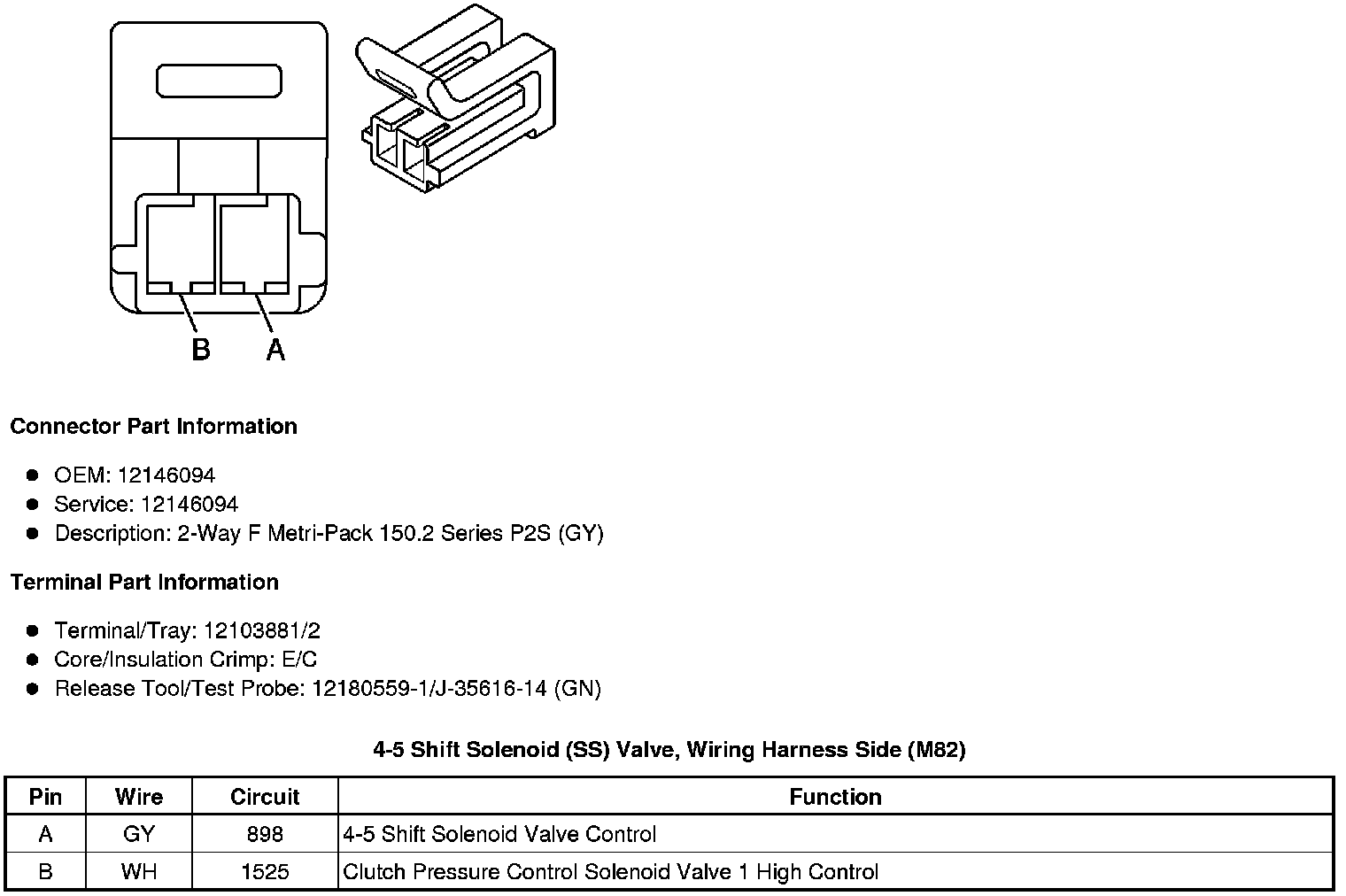

4-5 Shift Solenoid (SS) Valve, Wiring Harness Side (M82)
4-5 Shift Solenoid (SS) Valve, Wiring Harness Side (M82)
4-5 Shift Solenoid (SS) Valve, Wiring Harness Side (M82)
