Heated Oxygen Sensor (HO2S) 2
Heated Oxygen Sensor (HO2S) 2

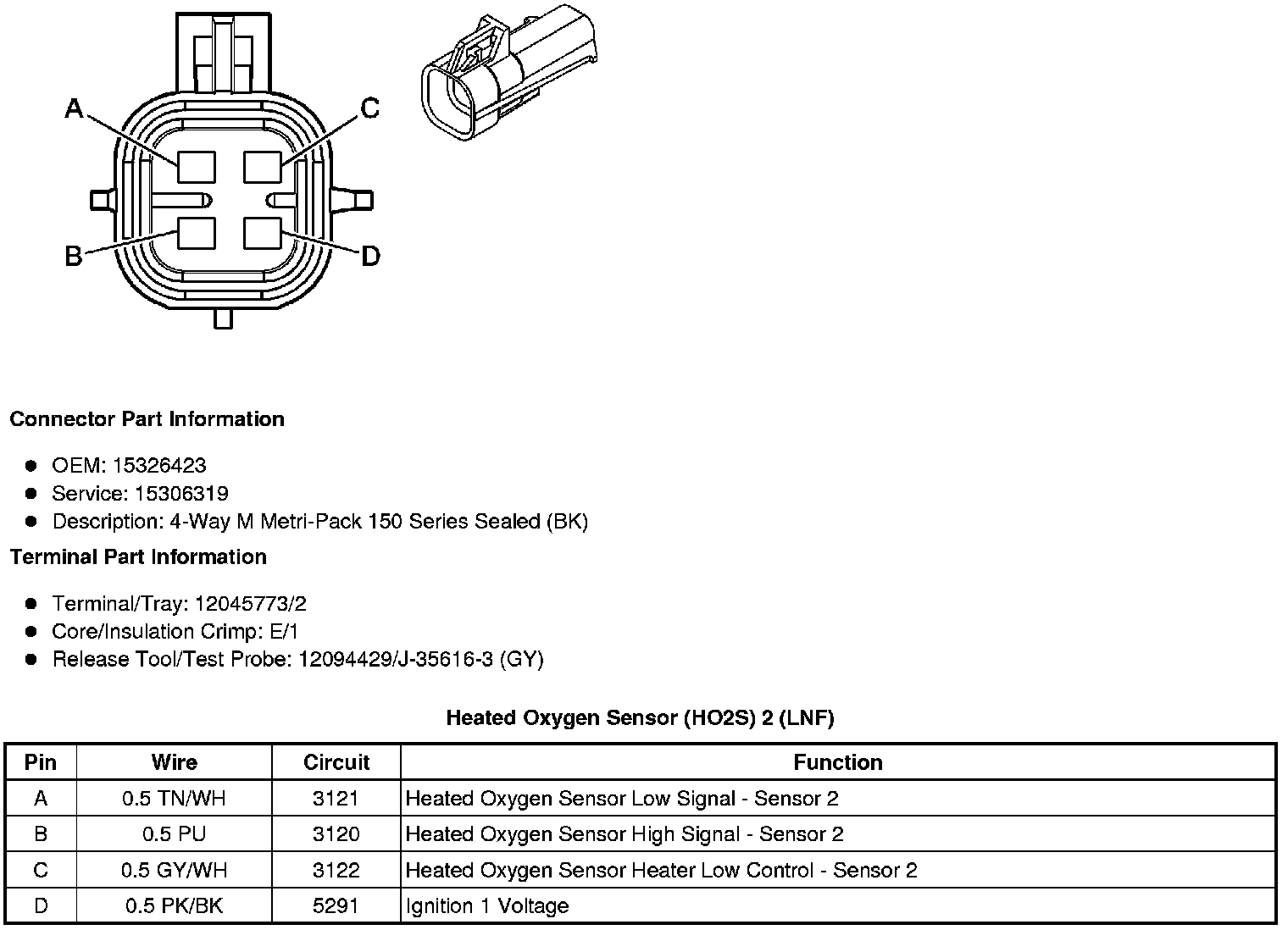

Component Connector End Views
Heated Oxygen Sensor (HO2S) 2 (LNF)
