Home >> Pontiac >> 2009 >> Solstice L4-2.0L Turbo >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Power Distribution Diagram 5

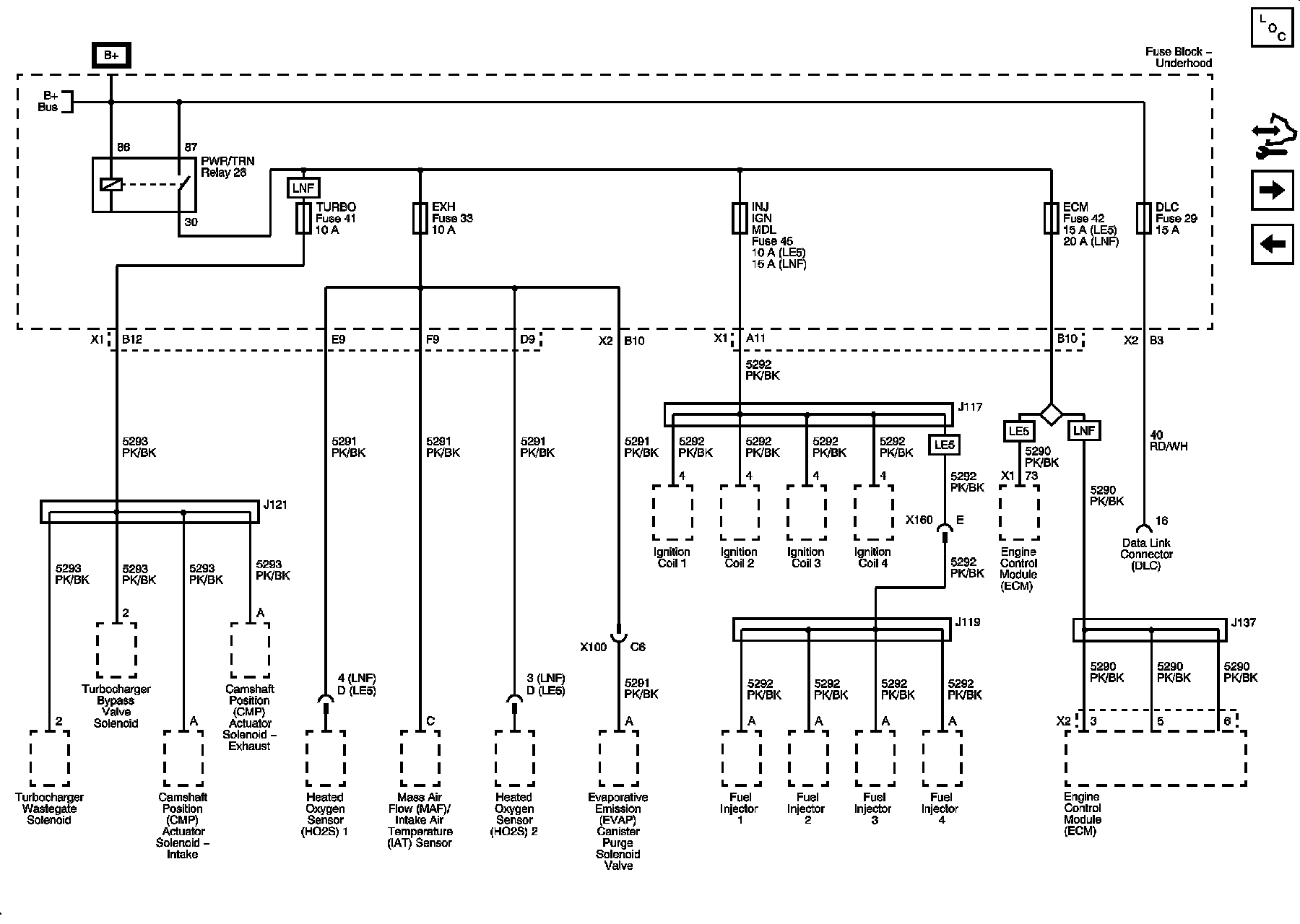

Power Distribution Diagram 5




Power Distribution Schematics

DLC, ECM, EXH, INJ IGN MDL, and Turbo (LNF) Fuses
