Rear Crankshaft Main Bearing Seal: Service and Repair

Crankshaft Rear Oil Seal Replacement

Tools Required

J 42067 Rear Main Seal Installer

Removal Procedure




1. Remove the flywheel. Refer to Engine Replacement (w/Automatic Transmission) (With Automatic Transmission)Engine Replacement (w/Manual Transmission) (With Manual Transmission).

Important: Do not damage the outside diameter of the crankshaft or chamber with any tool.

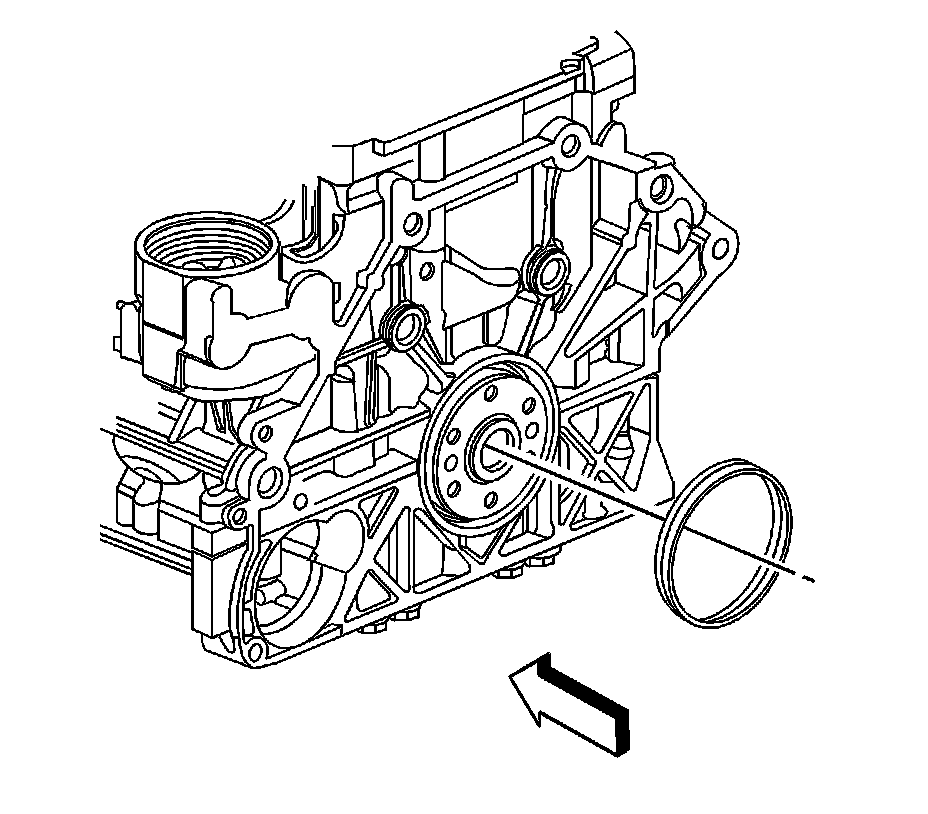

2. Pry out the crankshaft rear oil seal using a flat-bladed tool.

Installation Procedure




1. Using the J 42067 , install a NEW crankshaft real oil seal.
2. Install the flywheel. Refer to Engine Replacement (w/Automatic Transmission) (With Automatic Transmission)Engine Replacement (w/Manual Transmission) (With Manual Transmission).
