Home >> Pontiac >> 2009 >> Solstice L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Fluid Diagrams >> Automatic Transmission/Transaxle >> Neutral - Engine Running

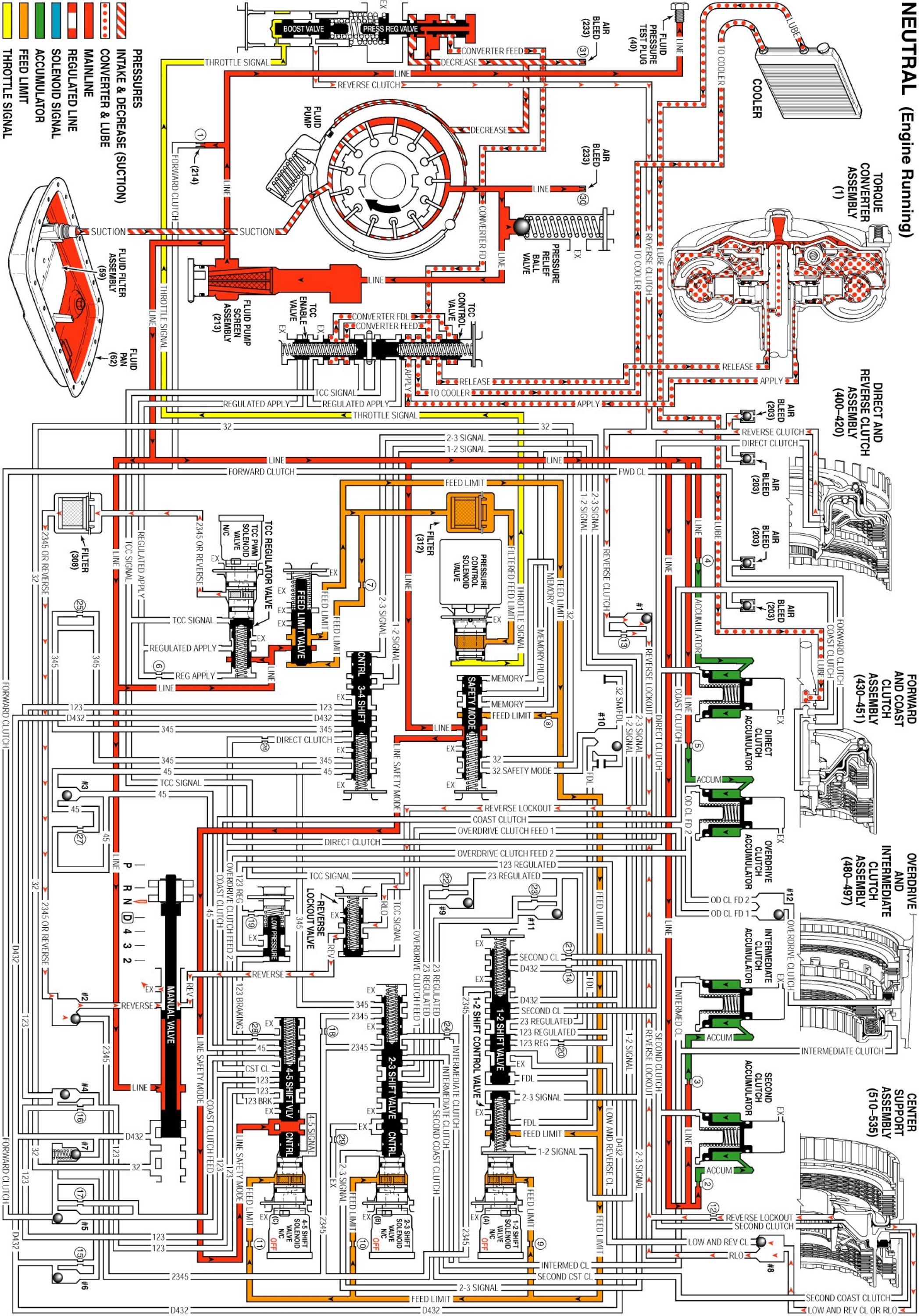

Neutral - Engine Running




Neutral Engine Running

Neutral Engine Running:
