Trunk / Liftgate Shock / Support
>>
Rear Lift Window Strut Jumper Harness X1 - Left
Rear Lift Window Strut Jumper Harness X1 - Left
Component Connector End Views

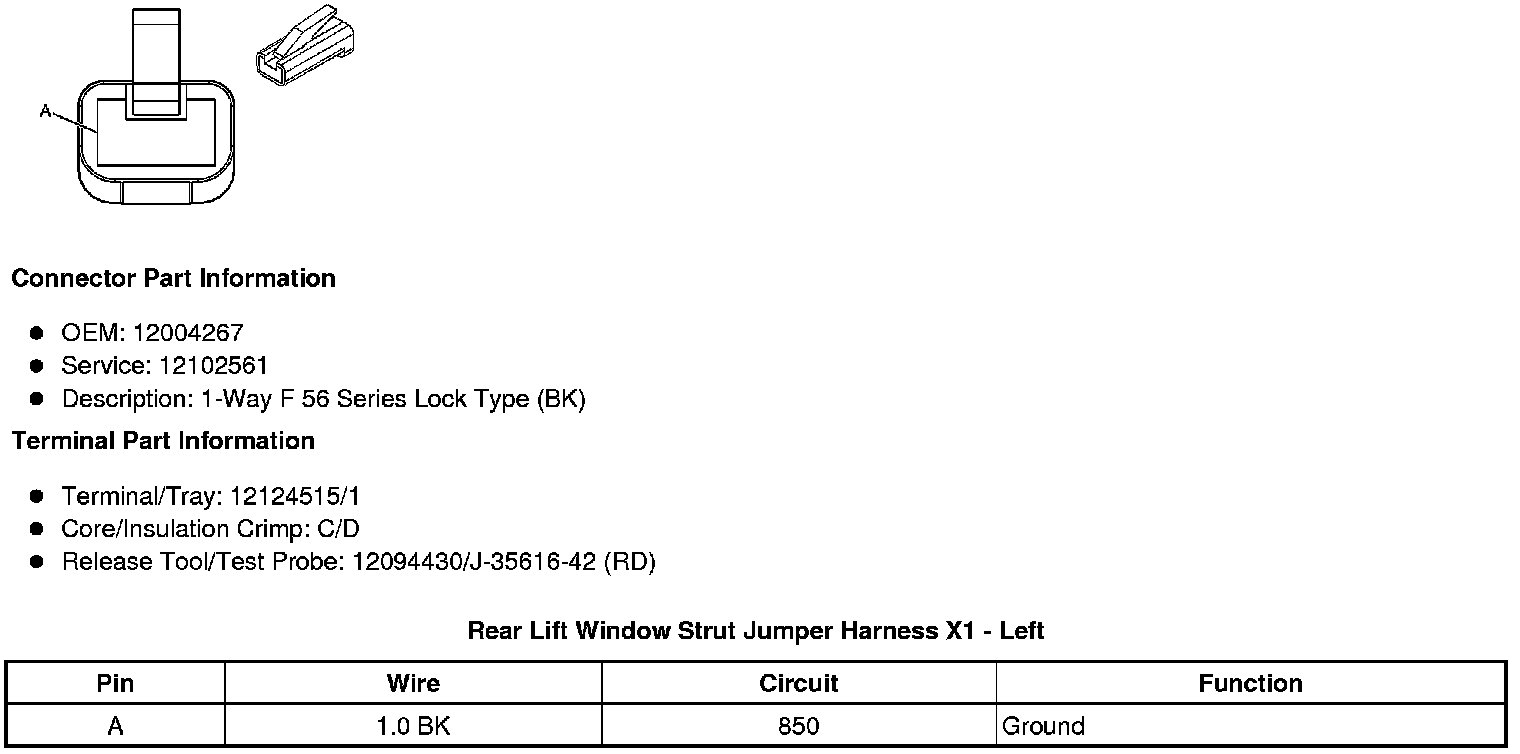

Rear Lift Window Strut Jumper Harness X1 - Left
