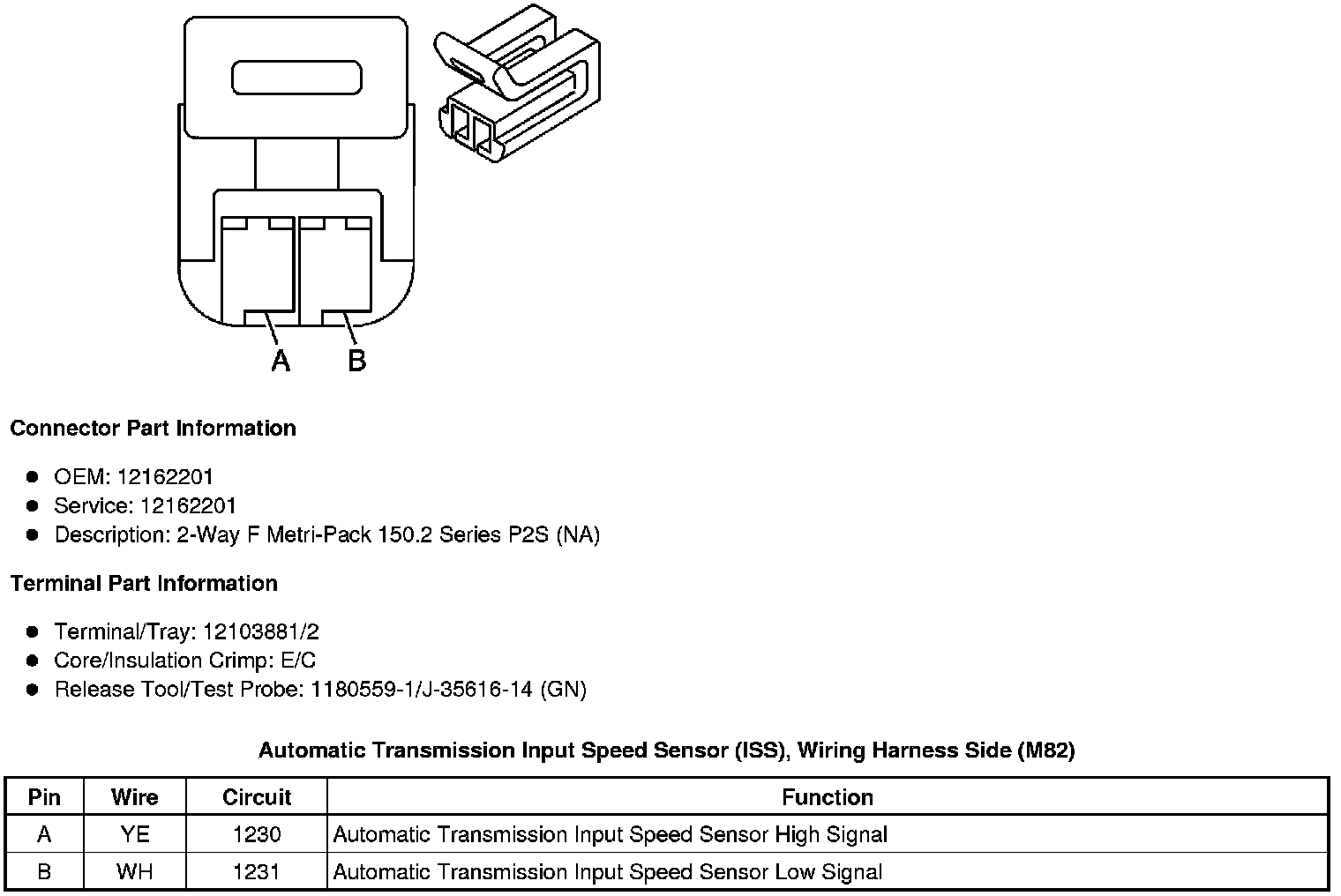

Automatic Transmission Input Speed Sensor (ISS), Wiring Harness Side (M82)

Component Connector End Views

Automatic Transmission Input Speed Sensor (ISS), Wiring Harness Side (M82)
