Home >> Pontiac >> 2009 >> Solstice L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Mounted Controls Transmitter >> Steering Wheel Control Switch - Right (UK3)

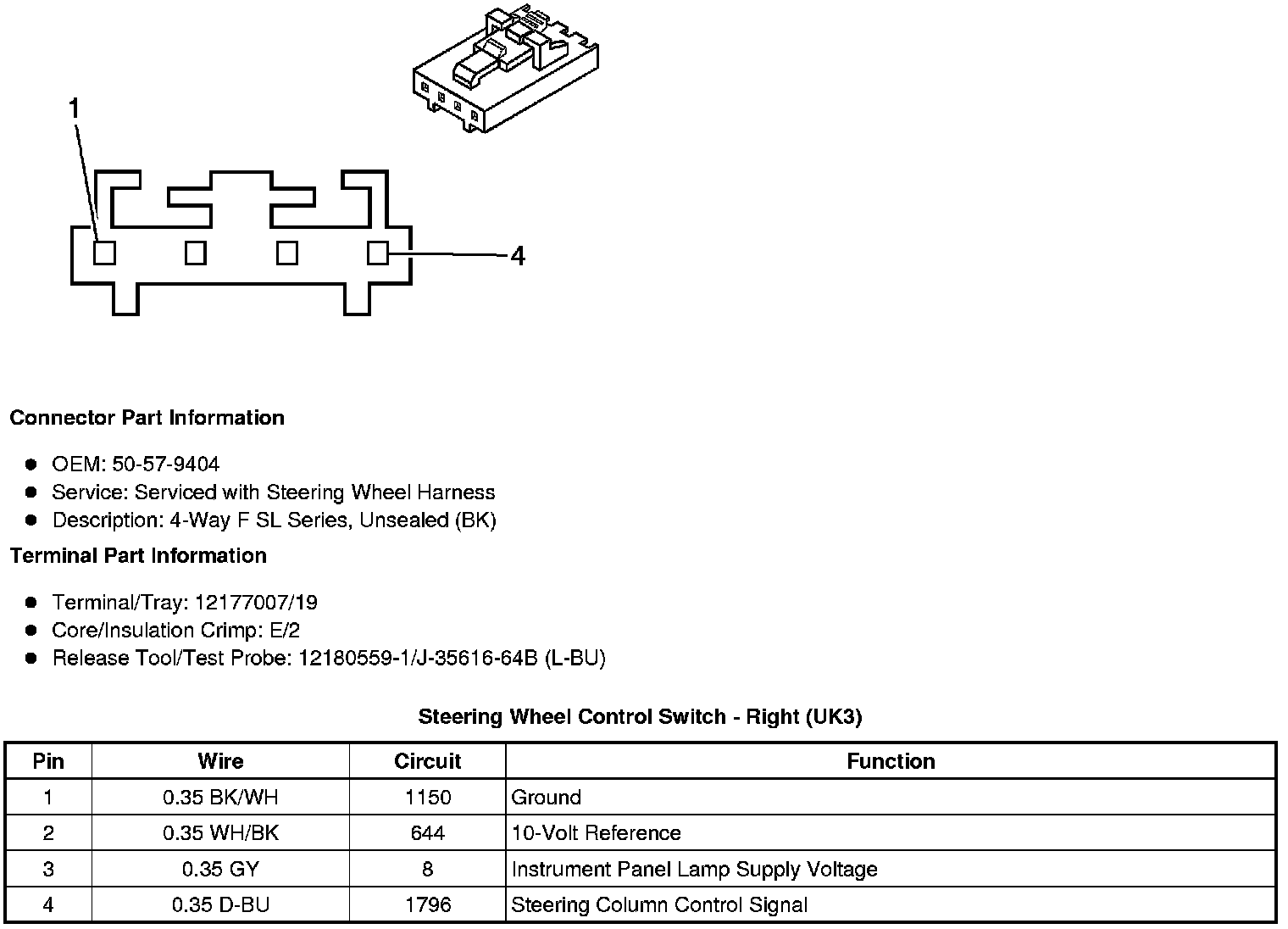

Steering Wheel Control Switch - Right (UK3)




Component Connector End Views

Steering Wheel Control Switch - Right (UK3)
