Speaker - Right Tweeter
Speaker - Right Tweeter

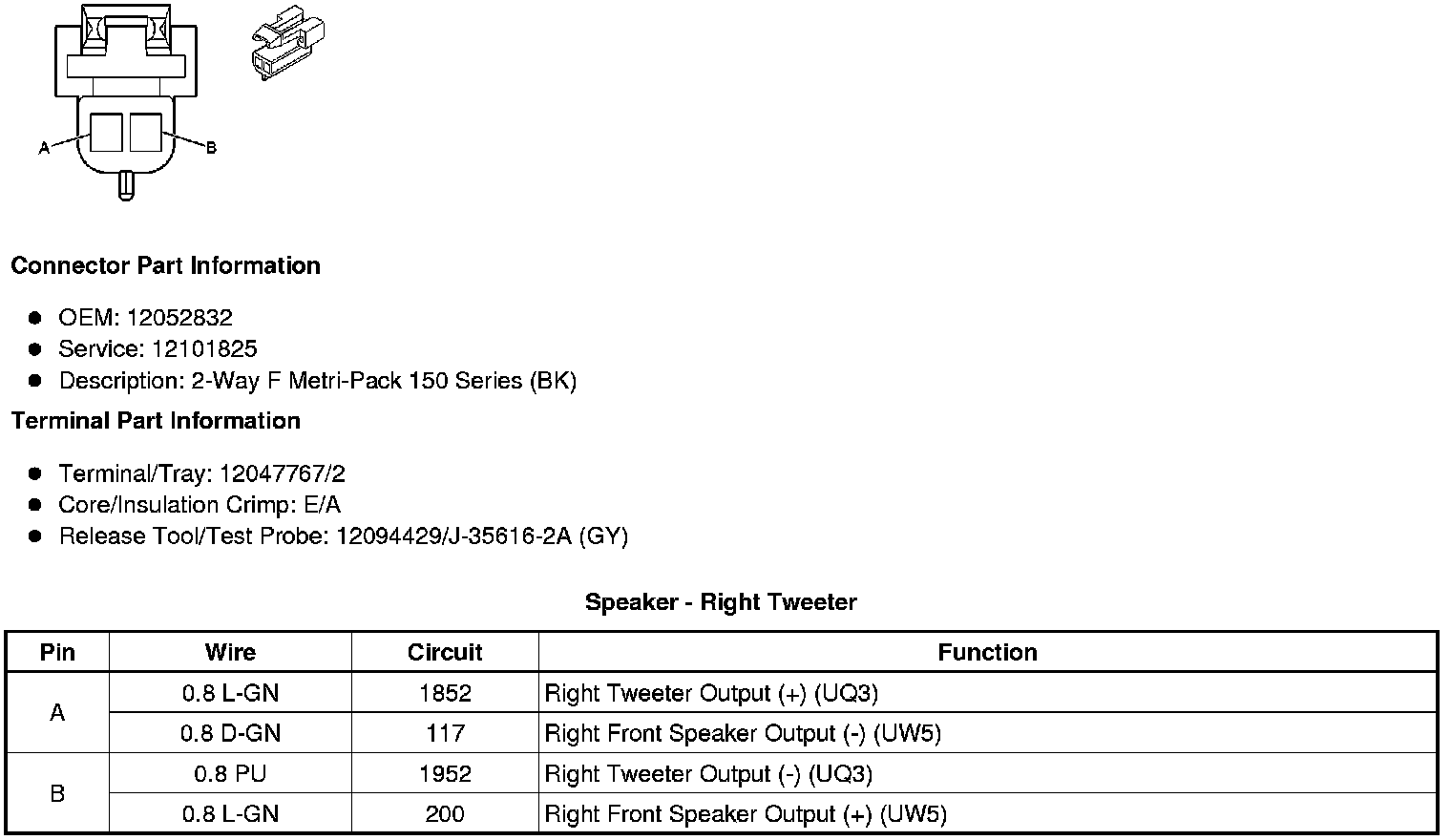

Component Connector End Views
Speaker - Right Tweeter
